ASME/BS B16.5 Carbon Steel Threaded Flange SCH40 SCH80 ASTM A105
ASME/BS B16.5 Carbon Steel Threaded Flange SCH40 SCH80 ASTM A105
Specifications
Brand Name :
Carbon steel threaded flange
Model Number :
LJ-PF471
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Size :
1/2''-72',1/2"-4 8"
Standard :
DIN,ANSI,ASME,GB
Usage :
Joining Pipe Lines
Thickness :
2mm-50mm
Packing :
Wooden case or Pallet
Description

ASME/BS B16.5 SCH40 SCH80 ASTM A105 Carbon steel threaded flange

Description

Carbon steel threaded flange has high rigidity and is suitable for occasions with high pressure and temperature. There are many types of flange sealing surface: plane sealing surface, which is suitable for occasions with low pressure and non-toxic medium; Concave convex sealing surface, suitable for occasions with slightly higher pressure.

Specification

Size:1/2" -- 24"
Standard:ANSI, DIN, GB, ASME
Pressure class:150lbs to 3000lbs

Material:ASTM A182 F304,316L

Technical data shee

ASME/BS B16.5 SCH40 SCH80 ASTM A105 Carbon steel threaded flange technical data sheet as below:

DN diameter Connection size Flange thickness inner diameter Theoretical weight
A B D K L M TH C A B KG
15 21.3 18 95 65 14 4 M12 14 22 19 0.68
20 26.9 25 105 75 14 4 M12 16 27.5 26 0.94
25 33.7 32 115 85 14 4 M12 16 34.7 33 1.12
32 42.4 38 140 100 18 4 M16 18 43.5 39 1.86
40 48.3 45 150 110 18 4 M16 18 49.5 46 2.12
50 603 57 165 125 18 4 M16 20 61.5 59 2.77
65 76.1 76 185 145 18 4 M16 20 77.5 78 3.31
80 88.9 89 200 160 18 8 M16 20 90.5 91 3.59
100 114.3 108 220 180 18 8 M16 22 116 110 4.57
125 139.7 133 250 210 18 8 M16 22 141.5 135 5.65
150 168.3 159 285 240 22 8 M20 24 170.5 161 7.61
200 219.1 219 340 295 22 8 M20 24 221.5 222 9.24

Characteristic

Carbon steel threaded flanges are used in pairs. They are commonly used in low-pressure pipelines. Welded flanges are used for pressures above 4kg. A sealing gasket shall be added between the two flanges and then fastened with bolts. The thickness of flanges with different pressures is different, and the bolts they use are also different.

Application

Carbon steel threaded flange has good comprehensive performance, so it is suitable for basic engineering such as chemical industry, construction, drainage, petroleum, light and light industry, refrigeration, plumbing, electric power and so on.

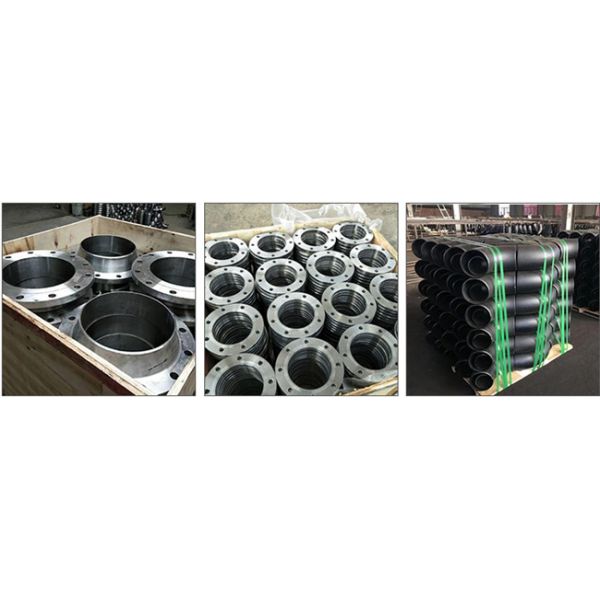

Package

ASME/BS B16.5 Carbon Steel Threaded Flange SCH40 SCH80 ASTM A105

Delivery

ASME/BS B16.5 Carbon Steel Threaded Flange SCH40 SCH80 ASTM A105

Product tags

astm a182 f316 steel flange

,

astm a182 f12 steel flange

,

astm a105 carbon steel flange
