ASTM/ASME A105 ASTM A694 Carbon Steel Flanges Socket Welding SW RF Flange
ASTM/ASME A105 ASTM A694 Carbon Steel Flanges Socket Welding SW RF Flange
Specifications
Brand Name :
Carbon steel SW flange
Model Number :
LJ-PF479
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Connection :
Welding
Size :
1/2"-4 8",1/2' ~ 6'
Application :
gas,Connect Pipes,oil
Standard :
DIN,ANSI,ASME,GB
Packing :
Wooden case or Pallet
Description

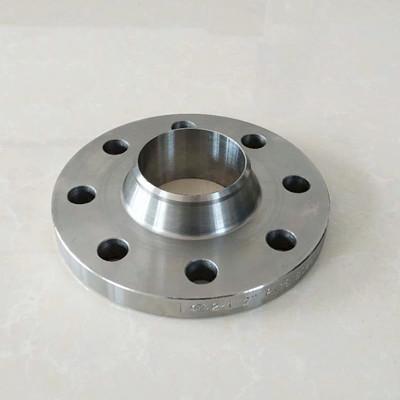

ASTM/ASME A105 ASTM A694 Socket Welding Carbon steel SW flange

Description

Carbon steel SW flange refers to the flange that is inserted into the flange ring ladder at the end of the pipe and welded at the pipe end and outside. There are two kinds of flanges with neck and without neck. The pipe flange with neck has good rigidity, small welding deformation and good sealing performance. It can be used for occasions with pressure of 1.0 ~ 10.0MPa.

Specification

Strength: 0.6-2.5MPA

Diameter: DN15-DN400

Material: A105,16Mn, 20#
Standard:ASTM, ASME B16.5

Technical data sheet

ASTM/ASME A105 ASTM A694 Socket Welding Carbon steel SW flange​ technical data sheet as below:

DN diameter Connection size Flange thickness inner diameter Theoretical weight
A B D K L M TH C A B KG
15 21.3 18 95 65 14 4 M12 14 22 19 0.68
20 26.9 25 105 75 14 4 M12 16 27.5 26 0.94
25 33.7 32 115 85 14 4 M12 16 34.7 33 1.12
32 42.4 38 140 100 18 4 M16 18 43.5 39 1.86
40 48.3 45 150 110 18 4 M16 18 49.5 46 2.12
50 603 57 165 125 18 4 M16 20 61.5 59 2.77
65 76.1 76 185 145 18 4 M16 20 77.5 78 3.31
80 88.9 89 200 160 18 8 M16 20 90.5 91 3.59
100 114.3 108 220 180 18 8 M16 22 116 110 4.57
125 139.7 133 250 210 18 8 M16 22 141.5 135 5.65
150 168.3 159 285 240 22 8 M20 24 170.5 161 7.61
200 219.1 219 340 295 22 8 M20 24 221.5 222 9.24
250 273 273 395 350 22 12 M20 26 276.5 247 11.9
300 323.9 325 445 400 22 12 M20 28 327.5 328 14.6

Characteristic

Carbon steel SW flange also includes type B flange for vessels, which is used in occasions with high sealing requirements, and is mainly used for pressure pipes above 4kg. For the pipes to be connected, install a flange, add a gasket between the two flanges, and then fasten them with bolts.

Application

Carbon steel SW flange is widely used in chemical industry, construction, water supply, drainage, petroleum, fire protection, electric power, aerospace, shipbuilding and other basic projects.
