ANSI B16.5 Stainless Steel Flanged Fittings Stainless Sus Flange
ANSI B16.5 Stainless Steel Flanged Fittings Stainless Sus Flange
Specifications
Brand Name :
Stainless steel flange
Model Number :
LJ-PF447
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Stainless Steel,SS304 SS316L
Technics :
Butt weld
Standard :
DIN,ANSI,ASTM,JIS,GB
Application :
Construction,Connect Pipes
Packing :
Carton /Wooden Box /Poly Wood Box
Color :
Silver
Description

ANSI b16.5 stainless steel flanged fittings Stainless steel flange

Description

Stainless steel flange has a significant impact on the machinery industry and has made a significant contribution to economic growth. The forging process of stainless steel flange can be divided into phase change forging, roll forging, rotary forging and forging. Therefore, the development of flange makes the stainless steel flange forging industry develop all over the world. During welding, stainless steel flanges must be heated repeatedly to separate} impurities and prevent degradation of their corrosion resistance and mechanical properties.

Technical data sheet

ANSI b16.5 stainless steel flanged fittings Stainless steel flange technical data sheet as below:

PN DN Mounting dimension OD(outside diameter of the pipe) Diameter of the raised face D2 Bolts GOST weight (kg) Thickness
Ouioide diameter. D(mm) Bolts boles axis diameter Inside diameter,d(mm) Number of bolts'holes,d(mm) Diameter of bolts'holes,d(mm) flange ridge's height,h(mm) Total thickness (h+b)mm Thickness ss,b (mm)
1.6 40 145 110 46 45 88 4 18 1.96 3 20 17
50 160 125 59 57 102 4 18 2.58 3 22 19
65 180 145 78 76 122 4 18 3.42 3 24 21
80 195 160 91 89 133 4 18 3.71 3 24 21
100 215 180 110 108 158 8 18 435 3 26 23
125 245 210 135 133 184 8 18 6.38 3 28 25
150 280 240 161 159 212 8 22 7.81 3 28 25
200 335 295 222 219 268 12 22 10 3 30 27
250 405 355 273 273 320 12 26 14.49 3 31 28
300 460 410 325 325 370 12 26 17.78 4 32 28
350 520 470 377 377 430 16 26 22.88 4 34 30
400 580 525 426 426 482 16 30 31 4 38 34
500 710 650 530 530 585 20 33 57.01 4 48 44

Specification

Stainless steel flange material:

Stainless steel: ASTM A182, f304, f316l, f321, etc

Dual phase steel: S31803, S32205, S32750, etc

Size: dn10-dn600

Pressure: 150Lb, 300lb, 600Lb, 900lb, 1500Lb, 2500lb

Standards: ASME, ANSI, JIS, DIN, etc

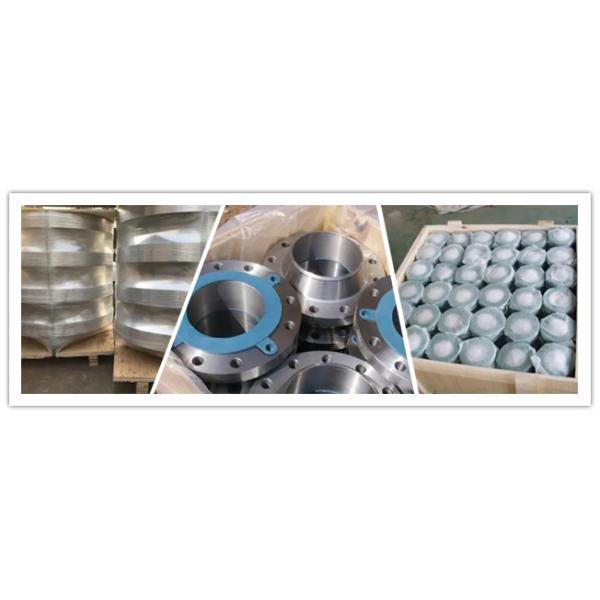

Package

ANSI B16.5 Stainless Steel Flanged Fittings Stainless Sus Flange

Transport

ANSI B16.5 Stainless Steel Flanged Fittings Stainless Sus Flange

Application

Stainless steel flange are widely used in petroleum, chemical industry, nuclear power plant, food manufacturing, construction, shipbuilding, papermaking, pharmaceutical and other industries.
