ANSI 150lb Stainless Steel Pipe Fittings Tee Reducer Connect Pipes
ANSI 150lb Stainless Steel Pipe Fittings Tee Reducer Connect Pipes
ANSI 150lb Stainless Steel Pipe Fittings Tee Reducer Connect Pipes
ANSI 150lb Stainless Steel Pipe Fittings Tee Reducer Connect Pipes
Specifications
Brand Name :
Stainless steel tee
Model Number :
LJ-PF497
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
SS304 SS316L
Shape :
Equal/Reducer
Standard :
DIN,ANSI,ASTM,GB
Size :
1/8"~2",1/2' ~ 6'
Application :
Connect Pipes
Packing :
Carton /Wooden Box /Poly Wood Box
Description

ASME/ANSI B16.9 SS304 SS316L 150lb Stainless steel tee

Description

Stainless steel tee is a kind of stainless steel pipe fitting, which is mainly used at the connection of main pipe and branch pipe. It can be divided into equal diameter tee and reducing tee, that is, three tees with the same diameter are called equal diameter tee, and different ones are called reducing tee. Stainless steel tee has good corrosion resistance. So it is often used in petrochemical and other fields.

Specification

OD:1/2-48inch
Certificate:CE, ISO
Size:DN15/150-1/2"-6"
Material:AISI304, AISI316L
Standard:ASME ANSl B16.9,DIN

Technical data sheet

ASME/ANSI B16.9 SS304 SS316L 150lb Stainless steel tee technical data sheet as below:

Nominal DiameterOutside DiameterCenter to End
D1D2
DNNPSSeries ASeries BSeries ASeries BCM
15x15x151/2x1/2x1/221.31821.3182525
15x15x101/2x1/2x3/821.31817.3142525
15x15x81/2x1/2x1/421.31813.7102525
20x20x203/4x3/4x3/426.92526.9252929
20x20x153/4x3/4x1/226.92521.3182929
20x20x103/4x3/4x3/826.92517.3142929
25x25x251x1x133.73233.7323838
25x25x201x1x3/433.73226.9253838
25x25x151x1x1/233.73221.3183838
32x32x321.1/4x1.1/4x1.1/442.43842.4384848
32x32x251.1/4x1.1/4x142.43833.7324848
32x32x201.1/4x1.1/4x3/442.43826.9254848
32x32x151.1/4x1.1/4x1/242.43821.3184848
40x40x401.1/2x1.1/2x1.1/248.34548.3455757

Characteristic

Stainless steel tee shall be free of cracks, overburning and overheating on the surface, and its surface shall be free of hard spots. The defects of tee pipe body shall not be repaired by welding.
Stainless steel tee shall have smooth internal and external surfaces without defects damaging strength and appearance. If there are defects, they shall be further revised and removed. The grinding place shall be smooth until the defects are confirmed and eliminated by magnetic particle flaw detection.

Application

Stainless steel tee is widely used in the construction and maintenance of petrochemical, petroleum and natural gas, liquefied gas, chemical fertilizer, power plant, nuclear power, shipbuilding, papermaking, food hygiene, urban construction and other industries.

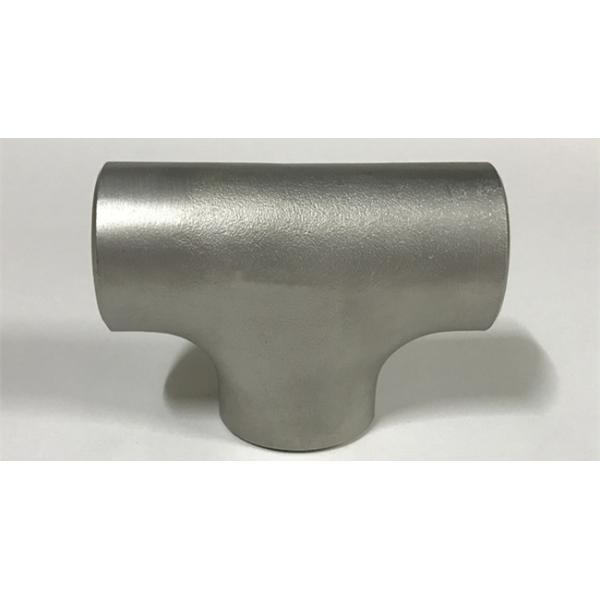

Product picture

ANSI 150lb Stainless Steel Pipe Fittings Tee Reducer Connect Pipes
