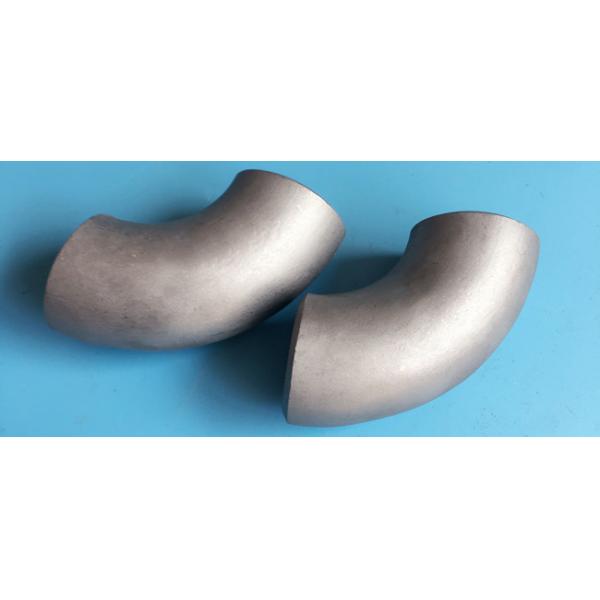

ASTM B16.11 A105 High Pressure Elbow 90 Degree
ASTM B16.11 A105 High Pressure Elbow 90 Degree
ASTM B16.11 A105 High Pressure Elbow 90 Degree
ASTM B16.11 A105 High Pressure Elbow 90 Degree
Specifications
Brand Name :
High pressure elbow
Model Number :
LJ-PF515
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Stainless Steel,Carbon Steel
Technics :
Forged
Application :
Connect Pipes
Standard :
DIN,ANSI,GB/T
Packing :
Standard Packing
Pressure :
medium pressure
Description

ASTM B16.11 A105 High Pressure 90 Degree High pressure elbow

Description

High pressure elbow does not need tube blank as raw material, which can save the cost of pipe making equipment and mold, and can obtain elbow with arbitrary large diameter and relatively thin wall thickness.

High pressure elbow can shorten the manufacturing cycle and greatly reduce the production cost Because no special equipment is required, it is especially suitable for on-site processing of large elbows.

The blank is a flat plate or developable surface, with simple blanking, easy accuracy assurance and convenient assembly and welding.

Specification

Size: 1/2' ~ 4'
Pressure: 3000lbs
Standard: ASME B16.11
Material Grade: A182 F316
Product Type: Forged Elbow

Technical data sheet

ASTM B16.11 A105 High Pressure 90 Degree High pressure elbow technical data sheet as below:

Size D L T T1
19 19 28 1.25 1.5
25 25 33.5 1.25 1.5
32 32 41 1.25 1.5
38 38 48.5 1.25 1.5
45 45 56 1.5 2
51 51 60.5 1.5 1.65
57 57 65 1.5 2
63.5 63.5 65 1.5 2
76 76 77.5 1.65 2
89 89 89 2 2

Characteristic

High pressure elbow not only has good compressive capacity, but also needs to have other excellent characteristics in different pipeline systems.

For example, the high-pressure elbow in concrete transmission pipeline and mud transmission pipeline should not only bear high pipeline pressure, but also have good wear resistance.

In the chemical raw material transportation pipeline system, in addition to bearing high pipeline pressure, it also has excellent corrosion resistance and acid-base resistance.

Appliation

High pressure elbow is suitable for pipeline systems in petroleum, natural gas, chemical industry, hydropower, construction, boiler and other industries.

Product picture

ASTM B16.11 A105 High Pressure Elbow 90 Degree
