1/8' ASTM A815 Stainless Steel Pipe Fittings Duplex Elbow joint pipe
1/8' ASTM A815 Stainless Steel Pipe Fittings Duplex Elbow joint pipe
Specifications
Brand Name :
Stainless steel elbow
Model Number :
LJ-PF502
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Stainless Steel
Connection :
Welding
Size :
1/8' ~ 6'
Application :
oil,gas and so on
Standard :
DIN,ANSI,GB/T
Packing :
Standard Packing
Description

ASME B16.9 ASTM A815 Duplex 2507 Stainless steel elbow

Description

Stainless steel elbow is different from the main material of carbon steel elbow. Its chemical composition will keep the elbow surface from rusting and corrosion for a long time.

Stainless steel elbow does not need pipe blank as raw material, which can save the cost of pipe making equipment and mold, and can obtain elbow with arbitrary large diameter and relatively thin wall thickness.

Specification

Standards: ANSI B16.5; ANSI/ASME B16.9
Material: A403 WP304/304L; WP316/316L
Pressure: 150LB-2500LB; PN6-PN300
Wall thickness: STD,SCH40,XS,SCH80,XXS

Technical data sheet

ASME B16.9 ASTM A815 Duplex 2507 Stainless steel elbow technical data sheet as below:

DN Outside diameter 90 degree elbow
A series B series Long radius Short radius
15 213 18 38 -
20 26.9 25 38 -
25 33.7 32 38 25
32 42.4 38 48 32
40 483 45 57 38
50 603 57 76 51
65 76.1(73) 76 95 64
80 88.9 89 114 76
100 1143 108 152 2
125 139.7 133 190 127
150 1683 159 229 152
200 219.1 219 305 203
250 273 273 381 254

Characteristic

1. Inner wall finish: the finish of the inner wall of stainless steel elbow fittings avoids the condensation of impurities. It is the most ideal material in construction.

2. High tensile strength: the tensile strength greater than 530n / ㎡ is 2-10 times higher than that of ordinary water pipe materials.

3. Good temperature resistance: some pipes begin to precipitate harmful substances at 40 ℃ and produce peculiar smell; The inner wall of some pipes corrodes rapidly under temperature, which shortens the service life of pipe fittings. Stainless steel can work safely for a long time at - 270 ~ 400 ℃ and has stable performance.

Application

Stainless steel elbow is widely used in chemical industry, construction, water supply, drainage, petroleum, light and light industry, refrigeration, sanitation, plumbing, fire protection, electric power, aerospace, shipbuilding and other basic projects.

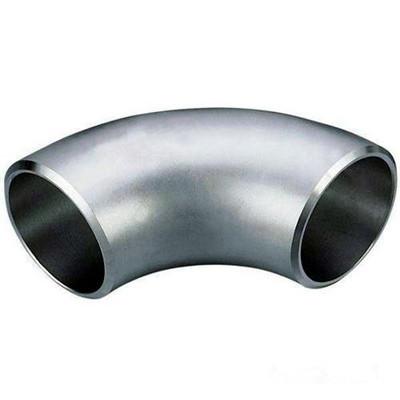

Product picture

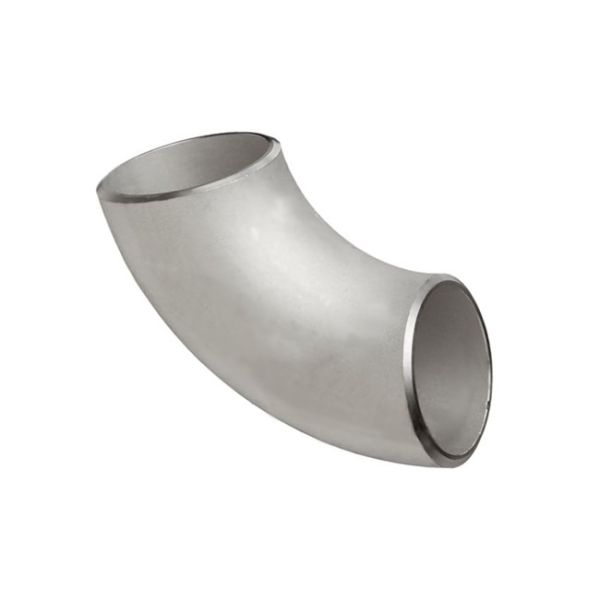

1/8' ASTM A815 Stainless Steel Pipe Fittings Duplex Elbow joint pipe
