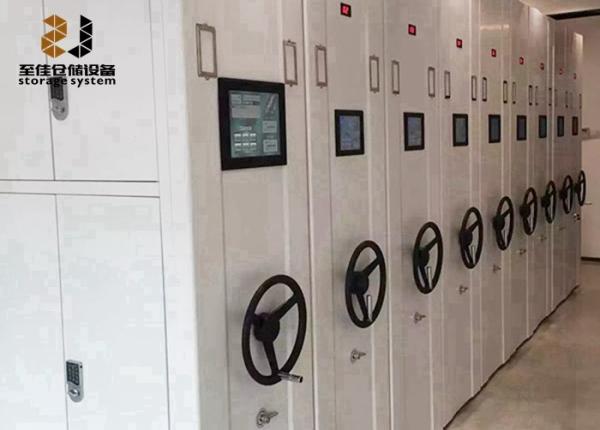

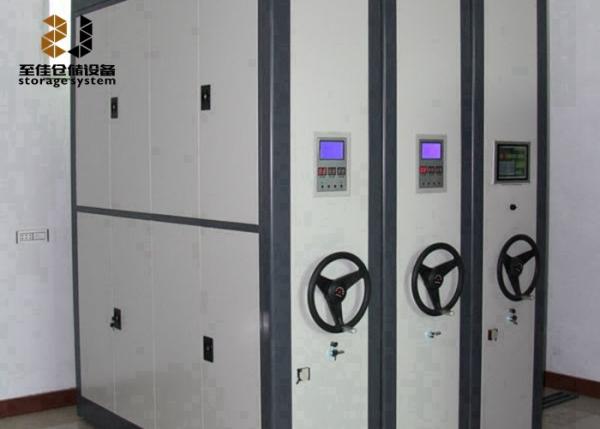

OEM ODM Moving File Cabinets Shelf System High Density Filing Cabinets
OEM ODM Moving File Cabinets Shelf System High Density Filing Cabinets
OEM ODM Moving File Cabinets Shelf System High Density Filing Cabinets
OEM ODM Moving File Cabinets Shelf System High Density Filing Cabinets
Specifications
Model Number :
W-MFC2017526
Certification :
ISO9001/14001
MOQ :
2-10 SETS
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 SETS
Delivery Time :
15-30 Days
Packaging Details :
Professional & Saft packaging for oversea shipment
Product Name :
Moving File Cabinets Shelf System
Raw material :
High Qulity Cold Roll Steel
Structure :
Knock down、easy assemble
Lock :
Safety lock and 3-point key lock
Layer of each bay :
6 layers or customized
Thickness :
0.8-2.5mm
Business Type :
Manufacturer
Response Time :
30 mins
Description

Easy Assemble Safety Lock Corrosion Protection Mobile Pallet Racking

Description:

Mobile Pallet Racking is a good optional used in offices, warehouses, stock rooms, factories, hospitals,archive and document storage centres etc.with superior quality, affordable mobile shelving and custom-designed service .Whatever your issue, we can provide a solution for you.

It is widely used in offices for file storage and are designed to be easily re-located with no floor fixing. It moves along floor tracks allowing the aisle to be moved so that the required shelves can be accessed, so only one aisle is needed.

Features:

1)Different dimension and styles are available.
2)Cold rolled steel, outside environmental electrostatic coating
3)RAL system to meet different requirement
4)Knocked down structure for easy transportation
5)Different spare parts such as handles,lockers are option

Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins

Specification:

Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate (whole body side plate dimension 300X100mm) Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
chassis Main beam and whole frame board Hot rolled steel plate 3.0mm GB710
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate 26X95mm GB710
Thickness 3.0
Pathway High quality steel plate 50X185 GB710
Thickness 3.0
Transmission part Handle crank ZG45 Bothway overload clutch GB1285
double axis transmission
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204 GB/T
307.3-2005
Chain wheel ZG45 　 GB1135
Chain FR420 Φ8.5, pitch12.7 GB1244
breaking force 1800kg
Idler wheel HT20-40 Cast iron Gb11351
　 Sealing rubber strip Magnetic fluid sealant 　 　
Dust shield Cold-roll steel 1 Gb710
Barb Hot rolled steel plate 3.0mm Gb711

OEM ODM Moving File Cabinets Shelf System High Density Filing CabinetsOEM ODM Moving File Cabinets Shelf System High Density Filing CabinetsOEM ODM Moving File Cabinets Shelf System High Density Filing Cabinets
