Warehouse High Density Pallet Racking System , Assemble Pallet Flow Racking Systems
Warehouse High Density Pallet Racking System , Assemble Pallet Flow Racking Systems
Warehouse High Density Pallet Racking System , Assemble Pallet Flow Racking Systems
Warehouse High Density Pallet Racking System , Assemble Pallet Flow Racking Systems
Warehouse High Density Pallet Racking System , Assemble Pallet Flow Racking Systems
Warehouse High Density Pallet Racking System , Assemble Pallet Flow Racking Systems
Specifications
Model Number :
W-DR2017523
Certification :
AS4084
MOQ :
20 Sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3500 Ton/Tons per Month
Delivery Time :
15-30 Days
Packaging Details :
Standard export carton with bubble film
Product Name :
Pallet Flow Racking Systems
Material :
high quality cold rolled steel
Weight Capacity :
500-4000kg/pallet
store layer :
1 to 7 layers per bay
Structure :
Assemble
Technique :
Cold Rolled
Type :
Drive-In Rack
Solution :
Available for free
Description

Cold Rolled Steel Powder Coating Customzied Size Pallet Flow Rack

Description:

It is designed for the storage of homogenous products. It accommodates a large number of pallets for each SKU. This system makes better use of the floor area and height space than any other.

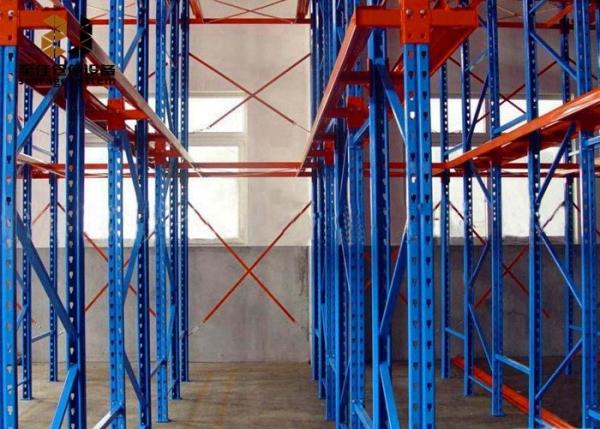

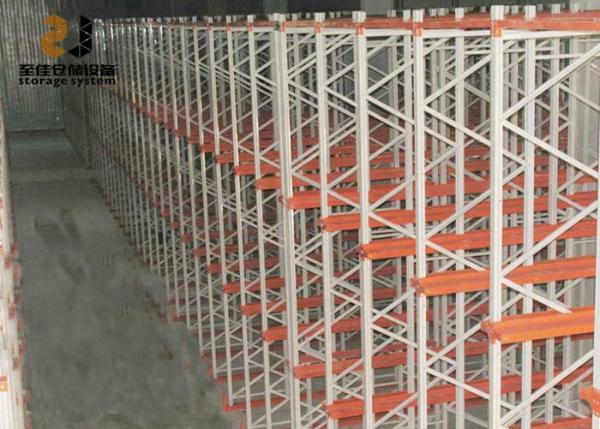

Jracking Drive in installation is made up of a set of racking units that form inner loading aisles, with support rails for the pallets. The fork-lift trucks enter these inner aisles with their load held higher than the level at which it is to be deposited.

1. Drive in rack system is last in first out store system. Suits for unified palletized goods.

2. Drive in rack system is a high density store system. It can use most of the warehouse space. So it can save space, save store cost. In the same area, push back rack can store much more goods.

3. Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.

Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf

Specification:

Product name

Cold Rolled Steel Powder Coating Customzied Size Pallet Flow Rack
Features

Material:high quality cold rolled steel

Weight Capacity:500-4000kg/pallet

store layer:1 to 7 layers per bay

Structure:Assemble

Finish:Powder Coating / galvanization

Technique:Cold Rolled

Size:Customzied

Beam size:80/100/120/140/160/180/200*45*1.5-3.0

Spare Parts:As your requirement

Color:blue/orange/whiate/grey/black
Zhijia Service

Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins

Specifications of Upright
Item Width(mm) Depth(mm) Thickness(mm) Loading Capacity(kg)
1 85 67 1.6 7000
2 85 67 1.8 8500
3 85 67 2 10000
4 85 67 2.3 12500
5 100 67 1.8 10500
6 100 67 2 12000
7 100 67 2.3 13800
8 100 95 2 12000
9 100 95 2.3 14500
10 100 95 2.5 16000
11 100 95 2.75 18000
12 100 95 3 20000
13 120 95 2.5 17000
14 120 95 2.75 19000
15 120 95 3 21000

Warehouse High Density Pallet Racking System , Assemble Pallet Flow Racking SystemsWarehouse High Density Pallet Racking System , Assemble Pallet Flow Racking Systems

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.


Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
