Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving
Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving
Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving
Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving
Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving
Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving
Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving
Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving
Specifications
Model Number :
W-DR2017523
Certification :
AS4084
MOQ :
20 Sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3500 Ton/Tons per Month
Delivery Time :
15-30 Days
Packaging Details :
Standard export carton with bubble film
Product Name :
Drive In Pallet Racking
Material :
High Quality Cold Rolled Steel
Weight Capacity :
500-4000kg/pallet
Technique :
Cold Rolled
Structure :
Assemble
Scale :
Heavy Duty
store layer :
1 to 7 layers per bay
Installation :
Easy assemble and disassemble
Description

500-2000kg Per Layer Galvanization Customzied Size Pallet Flow

Description:

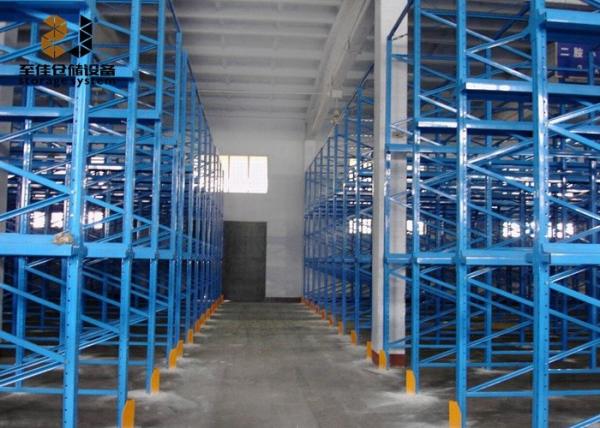

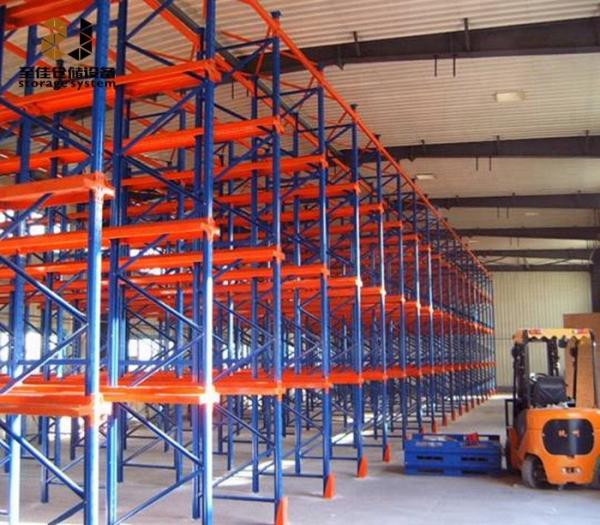

1) Drive-in and drive-through racking is ideally suitable for storing large quantities of goods with a low number of different articles. The racking system combines the advantages of block stacking and rack stacking: compact space utilization at height and careful storage of goods.
2) Each aisle consists of several level of pallet support rail. Pallets are placed on pallet support rail one after another; Forklifts operation alongside the aisle;
3) First-in-last-out access process, one side in/out or two side in/out can be met.
4) Top and back bracing are used to fix the whole racking, making the whole racking stable and safe;
5) First level pallets can be placed on the floor;
6) Easily adjustable and random space allocation.
7) Surface: Powder coated or galvanized and color optional
8) Flexibility and ease of installation
9) Can be designed according to clients' requirements.
10) The reliable and efficient service before and after deal.


Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:

Product name

500-2000kg Per Layer Galvanization Customzied Size Pallet Flow

Features

Material:high quality cold rolled steel
Weight Capacity:500-4000kg/pallet
store layer:1 to 7 layers per bay
Structure:Assemble
Finish:Powder Coating / galvanization
Technique:Cold Rolled
Size:Customzied
Beam size:80/100/120/140/160/180/200*45*1.5-3.0
Spare Parts:As your requirement
Color:blue/orange/whiate/grey/black

Zhijia Service

Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins

Specifications of Upright
ItemWidth(mm)Depth(mm)Thickness(mm)Loading Capacity(kg)
185671.67000
285671.88500
38567210000
485672.312500
5100671.810500
610067212000
7100672.313800
810095212000
9100952.314500
10100952.516000
11100952.7518000
1210095320000
13120952.517000
14120952.7519000
1512095321000


Safe Drive In Pallet Racking / Heavy Duty Warehouse Rack ShelvingSafe Drive In Pallet Racking / Heavy Duty Warehouse Rack ShelvingSafe Drive In Pallet Racking / Heavy Duty Warehouse Rack Shelving

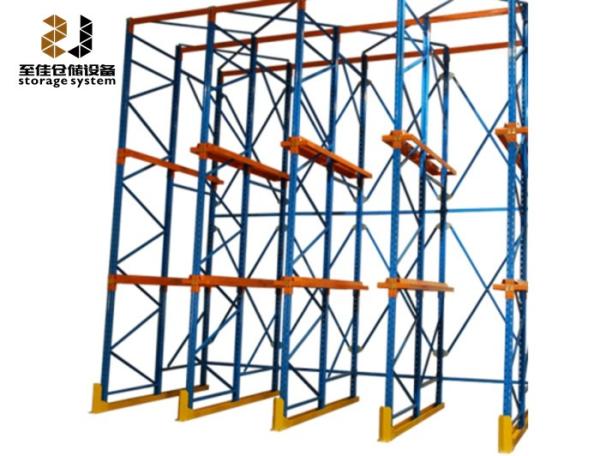

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.

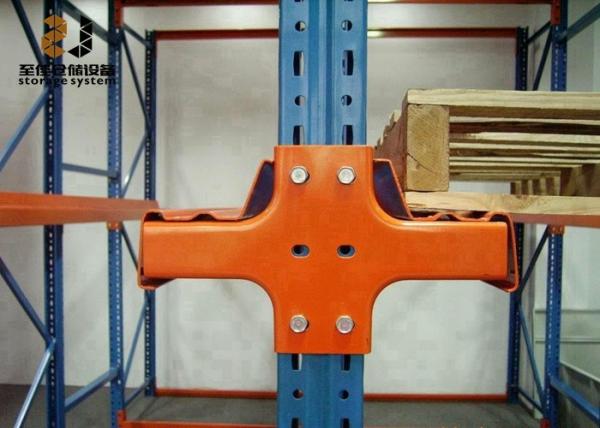

Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
