Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack
Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack
Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack
Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack
Specifications
Model Number :
W-DR2017523
Certification :
ISO90001/ISO14001
MOQ :
20 Sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3500 Ton/Tons per Month
Delivery Time :
15-30 Days
Packaging Details :
Standard export carton with bubble film
Product Name :
Speed rack pallet rack
Material :
high quality cold rolled steel
Weight Capacity :
500-4000kg/pallet
store layer :
1 to 7 layers per bay
Structure :
Assemble
Size :
Customzied
Warranty :
warranty 5 years
Description

Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack

Description:

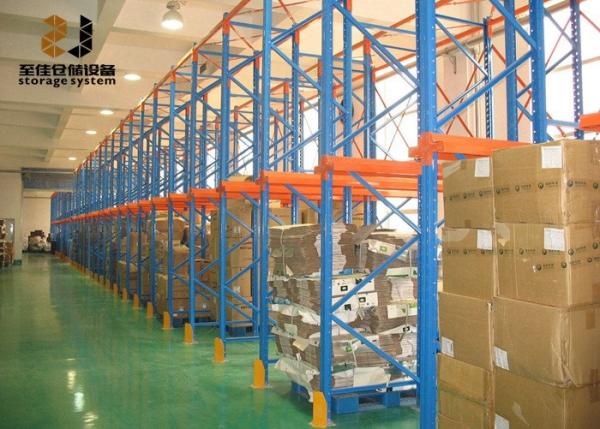

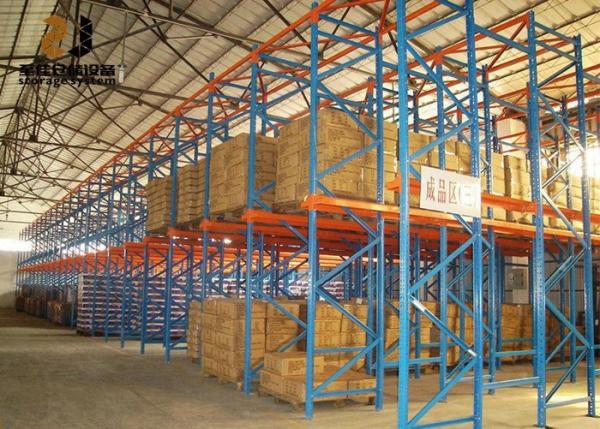

1. Drive in racking has a wonderful looks and scientific structures.
2. The upright is made of the cold steel sheet, which ID bent and rolled, there are two straight line of tear drop hole with 50mm between two holes. So the beam can be adjusted every 50mm.
3. The beam is "P" shape beam, and the height is matched with the shelf panels. The shelf panels are made of the cold roll steel according to the requires.
4. It is convenient to assemble or disassemble and it is widely used in supermarket, warehouse and other public fields.

Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf

Specification:

Product name

Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack
Features

Material:high quality cold rolled steel

Weight Capacity:500-4000kg/pallet

store layer:1 to 7 layers per bay

Structure:Assemble

Finish:Powder Coating / galvanization

Technique:Cold Rolled

Size:Customzied

Beam size:80/100/120/140/160/180/200*45*1.5-3.0

Spare Parts:As your requirement

Color:blue/orange/whiate/grey/black
Zhijia Service

Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins

Specifications of Upright
Item Width(mm) Depth(mm) Thickness(mm) Loading Capacity(kg)
1 85 67 1.6 7000
2 85 67 1.8 8500
3 85 67 2 10000
4 85 67 2.3 12500
5 100 67 1.8 10500
6 100 67 2 12000
7 100 67 2.3 13800
8 100 95 2 12000
9 100 95 2.3 14500
10 100 95 2.5 16000
11 100 95 2.75 18000
12 100 95 3 20000
13 120 95 2.5 17000
14 120 95 2.75 19000
15 120 95 3 21000

Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet RackCold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet RackCold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.


Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
