Customzied Size For Unified Palletized Goods Use Racking Beams
Customzied Size For Unified Palletized Goods Use Racking Beams
Customzied Size For Unified Palletized Goods Use Racking Beams
Customzied Size For Unified Palletized Goods Use Racking Beams
Specifications
Model Number :
W-DR2017523
Certification :
AS4084
MOQ :
20 Sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3500 Ton/Tons per Month
Delivery Time :
15-30 Days
Packaging Details :
Standard export carton with bubble film
Product Name :
Racking beams
Material :
high quality cold rolled steel
Weight Capacity :
500-4000kg/pallet
store layer :
1 to 7 layers per bay
Structure :
Assemble
Size :
Customzied
ODM&OEM :
Available
Business Type :
Manufacturer
Description

Customzied Size For Unified Palletized Goods Use Racking Beams

Description:

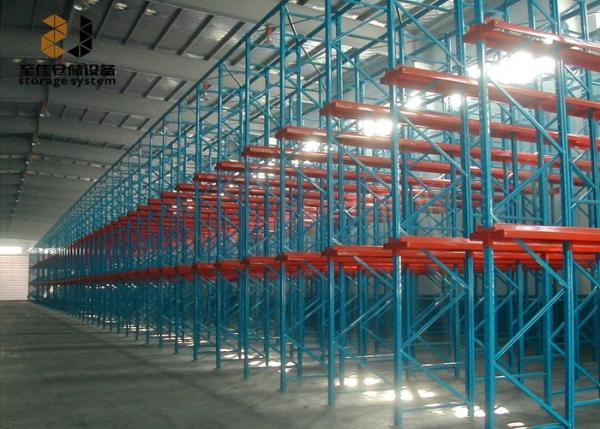

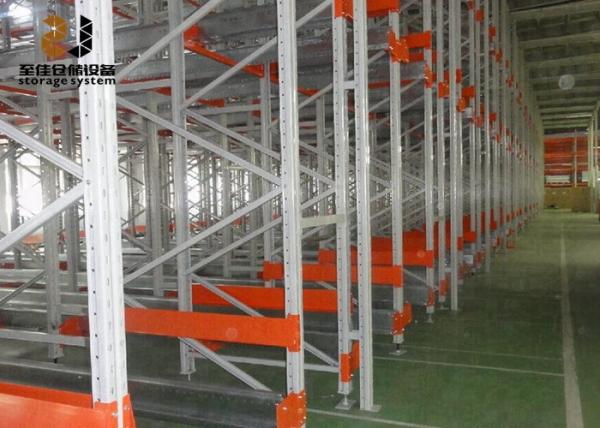

Global Drive-in/Drive Through racking offers the highest possible densities of pallet storage, with the lowest selectivity. Consequently, it is ideal for fast moving product which moves on a "pallet-in pallet-out basis." Drive-in /Drive Through racking is a series of tunnels with rails on either side to hold the pallet. Lift trucks can drive into any given tunnel to retrieve or put away pallets. The first pallet in is the last one out unless a Drive-Through system is used whereby pallets can be loaded or retrieved from either side.

1. Drive in rack system is last in first out store system. Suits for unified palletized goods.

2. Drive in rack system is a high density store system. It can use most of the warehouse space. So it can save space, save store cost. In the same area, push back rack can store much more goods.

3. Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.

Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf

Specification:

Product name

Customzied Size For Unified Palletized Goods Use Racking Beams
Features

Material:high quality cold rolled steel

Weight Capacity:500-4000kg/pallet

store layer:1 to 7 layers per bay

Structure:Assemble

Finish:Powder Coating / galvanization

Technique:Cold Rolled

Size:Customzied

Beam size:80/100/120/140/160/180/200*45*1.5-3.0

Spare Parts:As your requirement

Color:blue/orange/whiate/grey/black
Zhijia Service

Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins

Specifications of Upright
Item Width(mm) Depth(mm) Thickness(mm) Loading Capacity(kg)
1 85 67 1.6 7000
2 85 67 1.8 8500
3 85 67 2 10000
4 85 67 2.3 12500
5 100 67 1.8 10500
6 100 67 2 12000
7 100 67 2.3 13800
8 100 95 2 12000
9 100 95 2.3 14500
10 100 95 2.5 16000
11 100 95 2.75 18000
12 100 95 3 20000
13 120 95 2.5 17000
14 120 95 2.75 19000
15 120 95 3 21000

Customzied Size For Unified Palletized Goods Use Racking BeamsCustomzied Size For Unified Palletized Goods Use Racking BeamsCustomzied Size For Unified Palletized Goods Use Racking Beams

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.


Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
