Compact File Cabinet Storage Systems , Metal Lateral File Cabinet With Sliding Track
Compact File Cabinet Storage Systems , Metal Lateral File Cabinet With Sliding Track
Compact File Cabinet Storage Systems , Metal Lateral File Cabinet With Sliding Track
Compact File Cabinet Storage Systems , Metal Lateral File Cabinet With Sliding Track
Compact File Cabinet Storage Systems , Metal Lateral File Cabinet With Sliding Track
Compact File Cabinet Storage Systems , Metal Lateral File Cabinet With Sliding Track
Compact File Cabinet Storage Systems , Metal Lateral File Cabinet With Sliding Track
Compact File Cabinet Storage Systems , Metal Lateral File Cabinet With Sliding Track
Specifications
Model Number :
W-MFC2017526
Certification :
ISO9001/14001
MOQ :
2-10 SETS
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 SETS
Delivery Time :
15-30 Days
Packaging Details :
Professional & Saft packaging for oversea shipment
Type :
File Cabinet Storage Systems
Material :
Metal
Specific Use :
Filing Cabinet
Usage :
Library,school,office,bank
Feature :
Corrosion Protection
Raw material :
High Qulity Cold Roll Steel
Warranty :
3 years on normal use
Structure :
Knock down
Description

Sliding mechanical metal cole steel Mobile File Cabinet Bulk File Cabinet with Sliding Track

Description:

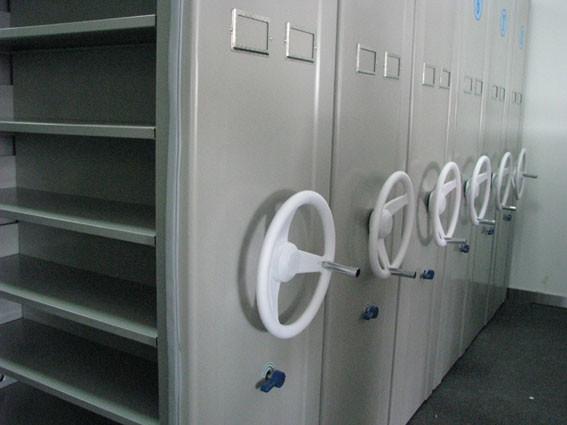

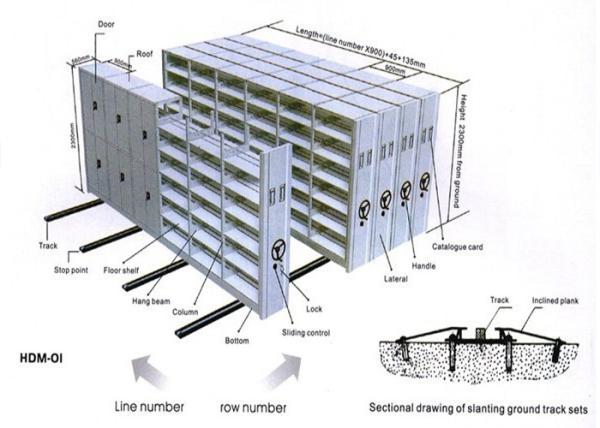

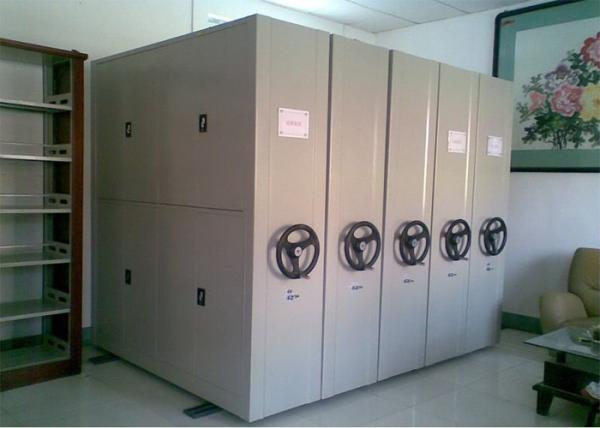

Compact Mobile Filing Cabinet is a cost effective way of increasing storage capacity and utilizing valuable floor space, which can double storage capacity compared to conventional static shelving.
It is widely used in offices for file storage and are designed to be easily re-located with no floor fixing. It moves along floor tracks allowing the aisle to be moved so that the required shelves can be accessed, so only one aisle is needed.

Specification:

Shelf body
Stand Column
Cold-roll steel
1.5mm
GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition)
Cold-roll steel
1.0mm
GB708
Side plate
Cold-roll steel
1.0mm
GB708
Upper cover plate (whole body side plate dimension 300X100mm)
Cold-roll steel
1.0mm
GB708
Panel
Cold-roll steel
1.0mm
GB708
chassis
Main beam and whole frame board
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
Hot rolled steel plate
3.0mm
GB710
pathway
Rail
High quality steel plate
Solid square tube
GB710
Rail box
High quality steel plate
26X95mm
Thickness 3.0
GB710
Pathway
High quality steel plate
50X185
Thickness 3.0
GB710
Transmission part
Handle crank
ZG45
Bothway overload clutch
double axis transmission
GB1285
Transmission shaft
Solid core 45 steel
Φ20
GB699
Linkage rail
Seamless steel tube
Φ20X2.5
GB699
Bearing
Precision bearing
HR6204
GB/T
307.3-2005
Chain wheel
ZG45
GB1135
Chain
FR420
Φ8.5, pitch12.7
breaking force 1800kg
GB1244
Idler wheel
HT20-40
Cast iron
Gb11351
Sealing rubber strip
Magnetic fluid sealant
Dust shield
Cold-roll steel
1.0
Gb710
Barb
Hot rolled steel plate
3.0mm
Gb711


Features
. Widely used in archives, library, government, bank and company documents center
. Instruction in package enables your installing very easy and fast
. Consists of fixed shelves installed on mobile chassis at bottom
. Every rack own transmission equipment
. Being compact can utilize room adequately and fully enclosed
. Only one aisle to be used, highest space utilization, nice and practical
. Sealing better, and can be manually and automatically operated
. Neat/elegant for file storage

Our Services
. Factory price with high quality
. OEM /ODM are available.
. Fast delivery.
. ISO,CE certified, one stop solution service for your project.
. Perfect design Exquisite technology, strict management, sincere service.
