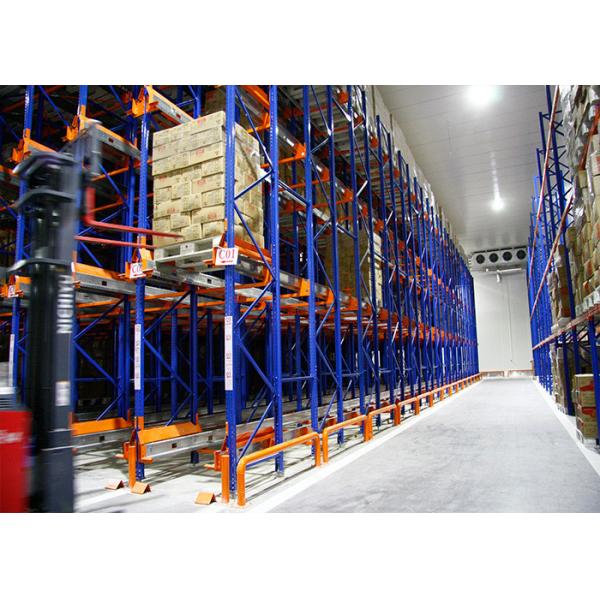

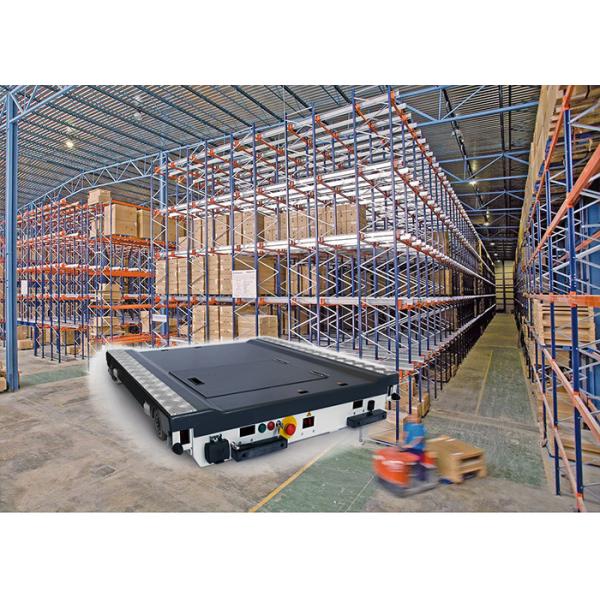

Warehouse Storage Shuttle Pallet Racking Steel Selective Pallet Racks
Warehouse Storage Shuttle Pallet Racking Steel Selective Pallet Racks
Warehouse Storage Shuttle Pallet Racking Steel Selective Pallet Racks
Warehouse Storage Shuttle Pallet Racking Steel Selective Pallet Racks
Warehouse Storage Shuttle Pallet Racking Steel Selective Pallet Racks
Warehouse Storage Shuttle Pallet Racking Steel Selective Pallet Racks
Specifications
Model Number :
ZJ-SP527
Certification :
ISO9001/14001
MOQ :
10 sets
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 sets per month
Delivery Time :
20-30 working days
Packaging Details :
Safe Packaging with Carton for exported shipment
Name :
Shuttle Pallet Racking
Material :
Steel
Type :
shuttle racking
Weight Capacity :
500-1500kg
Size :
Customer Size
Warranty :
3 years
Usage :
Warehouse Storage System
Structure :
Assemble
Finish :
Electrostantic Powder Coated
Description

High Effiency Shuttle Pallet Racking Exporter Warehouse Shuttle Pallet Racking

Description:

Shuttle Shelves System, structured with pallets and beams are most widely used.

This kind of steel pallet racking is widely used together with forklifts , steel storage containers, steel pallets and storage boxes.

1. pallet racking can be coupled with different specifications of pallets and containers.

2. pallet rack is designed to store pallet cargo,It enables you to make full use of the storage space. With a wide range of optional solutions and components available, we can design special pallet racking according to your requirements.
3. It can coordinate with all the handling equipment and operational equipment.
4. pallet racking is manufactured in accordance with international quality standard ISO9001:2000, as well as international design standard SEMA, FEM, and AS4084,

Each level can be adjustable at 75mm per pitch and the maxmum loading is 25000kg with the maxmum length of 12 meters. Each level loading duty is from 200kgs to 6000kgs, depending on the beam length.

Pallets made of different material with various sizes, can be used on practical stackable pallet racks.

Features and advantages:

Frame
Height (3-15m)
Depth (600-1,200mm)
Upright section: 90 x 70; 100 x 80; 120 x95mm
Thickness: 1.8/2.0/2.3/2.5mm
Beam
Length (1200-3600mm)
Beam section: 80 x 50; 100 x 50; 120 x 50; 140 x 50;160*50mm
Thickness: 1.5mm to 3.0mm
Load capacity
1-5Tons/Layer
Others
- MOQ. 1 sets
- Pitch: 75 or 76mm
- Delivery time: 7-15days
- Payment term. T/T (30% down payment) or L/C at sight
- Necessary accessories: for free.
- Packing: stretch film & carton
- Production capacity: 3000 sets/month

- Available in various colors/specifications/sizes

-Main market: Australia, Europe, Asia, Central America, South America, North Africa and etc.

Standard Size:

S/N
Standard Size(W*D*H)
Loading Weight
Standard Layer
Material
1
2300*900*3000
1000-4000kg/level
2+1(ground)
steel
2300*900*4000
3+1(ground)
2300*1000*3000
2+1(ground)
2300*1000*4000
3+1(ground)
2
2500*900*3500
2+1(ground)
2500*900*4000
3+1(ground)
2500*1000*3500
2+1(ground)
2500*1000*4000
3+1(ground)
3
2700*900*3500
2+1(ground)
2700*900*4000
3+1(ground)
2700*900*5000
3+1(ground)
2700*900*6000
4+1(ground)
2700*1000*3500
2+1(ground)
2700*1000*4000
3+1(ground)
2700*1000*5000
3+1(ground)
2700-5000*1000*6000-12000
(4,5,6...)+1(ground)
Remark:This size is our standard only. Different size with various loading weight and levels are acceptable.

Product information for inquiry:

1.
drawing(if available)
2.
size of your warehouse and warehouse drawing
3.
size of your goods including pallets(height*width*depth)
4.
weight of your goods including pallets or container
5.
how many levels of the rack
6.
the pallets' entering direction
7.
(RAL)color you want
