Steel Pipe Cantilever Pallet Racking , Heavy Duty Cantilever Racking System
Steel Pipe Cantilever Pallet Racking , Heavy Duty Cantilever Racking System
Steel Pipe Cantilever Pallet Racking , Heavy Duty Cantilever Racking System
Steel Pipe Cantilever Pallet Racking , Heavy Duty Cantilever Racking System
Steel Pipe Cantilever Pallet Racking , Heavy Duty Cantilever Racking System
Steel Pipe Cantilever Pallet Racking , Heavy Duty Cantilever Racking System
Steel Pipe Cantilever Pallet Racking , Heavy Duty Cantilever Racking System
Steel Pipe Cantilever Pallet Racking , Heavy Duty Cantilever Racking System
Specifications
Model Number :
W-CR2017522
Certification :
ISO9001/14001
MOQ :
20 Sets
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3500 Ton/Tons per Month
Delivery Time :
15-20 Days
Packaging Details :
Wrapt in plastic film or in bulk.
Material :
Cantilever Pallet Racking
Name :
Pipe, wood,plate, steel pipe, constructure material
Scale :
Heavy Duty
Capacity :
250~800 lbs (500~1500 kgs)
Application :
Pipe, wood,plate, steel pipe, constructure material
Application Environment :
Normal Temperature or Cold Room
Beam Connector Type :
Slotted Rivet with Safelock
Description

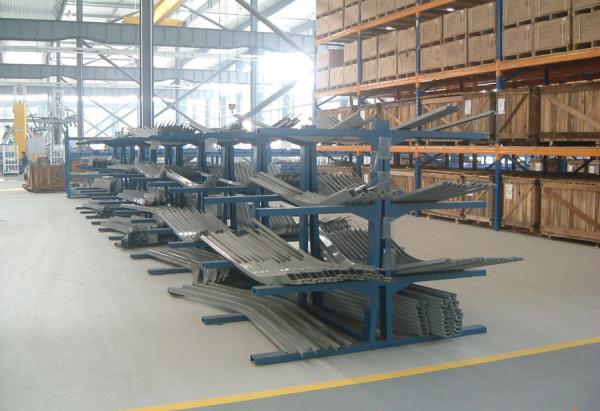

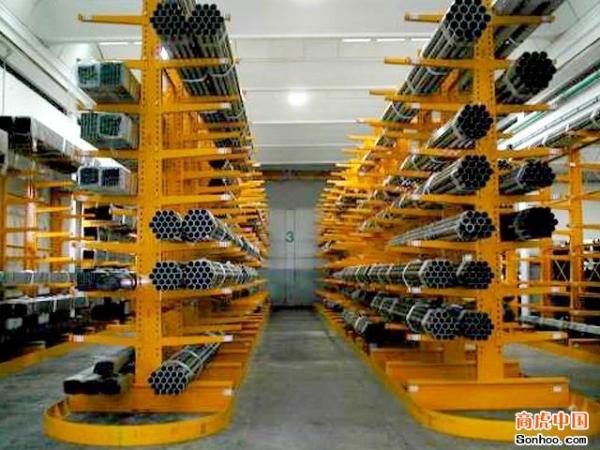

Steel Pipe Storage Cantilever Rack used in Heavy duty warehouse

Description:

Cantilever racking is ideal for the safe and organized storage of long and heavy loads. They are also ideal systems for storing steel bars, pipes, tubes, furniture and packs of timber. Some of them are also suitable for storing boards, metal sheets or large and valuable items such as crates or boxes and even white goods.


Cantilever racking allows you to use your warehouse space more efficiently - you do not need to waste horizontal space with awkward posts and columns obstructing storage areas. Items best suited to such a system include furniture, building materials, pi ping, rolls, appliances, and flooring.The rack is made of good raw material cold rolled steel with features of excellent anti-corrsion and rust-proof function, stable quality and advanced automatic production technology.

Specification:

Material:
Steel Q235
Load Capacity
1000-4000kgs/level
Height:
1000-12000mm
Depth:
400-1500mm
Length
1000-3600mm
Color
Blue/Orange/Light Grey or as your requirement

Main Parts
• Upright frame, Box Beam
• Other accessories, such as: corner guard, column guard, pallet support bar, row spacer, etc.
Main Spec.
• Upright section: 80*60*2.0, 76.2*76.2*2.0, 90*60*2.0, 90*70*2.0, 90*75*2.0, 100*67*2.0, 100*70*2.0, 100*75*2.0, 120*75*2.0, 120*90*2.0mm, 2.5mm is also available. •Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
• Horizontal & diagonal braces: 40*24/34*1.3mm
Finish
• Powder Coated/HDG/Black Raw
Delivery Time
• Usually, within 15 days for ordinary order quantity
• Big qty will make a special arrangement as your schedule.
Advantages
• 100% accessibility and good stock rotation
• can be adjusted per 75mm and easily install, the most economical solution.
• Surface finishing with araldite static powder coating.
• High Strength and durability, easy for complete installation.
• Rapid handling of almost all types of palletised goods.
•Bottom level of pallets can be stored on the floor, lowering structure costs.
• Easily utilized with standard fork- or hand-trucks.

FAQ

Q: What is your trading terms?
A:
1. Payment term: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. Or L/C.
2. Lead time: Normally in 30 days after deposit received.
3. Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4. Shipping port: Shanghai China.
Q: How I can delivery my goods?
A:
1. Sea Freight: We will update sea freight once we know your sea port where goods will be delivered.
2. Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Q: What is your service?
A:
1.Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized racks we can help you to design product.
4. We have very experienced professional engineers to make best solutions.
Q: How to purchase your product?
A:
Design drawing → Confirm drawing →Quotation → PI → Confirm PI → Arrange 30% deposit →Manufacturer→QC inspect → Pay balance → Shipping
Q: What is your advantage?
A:
1. Warranty: Two years warranty, the broken parts will be replaced and sent to you.
2. Factory price: Factory direct sale competitive price.
