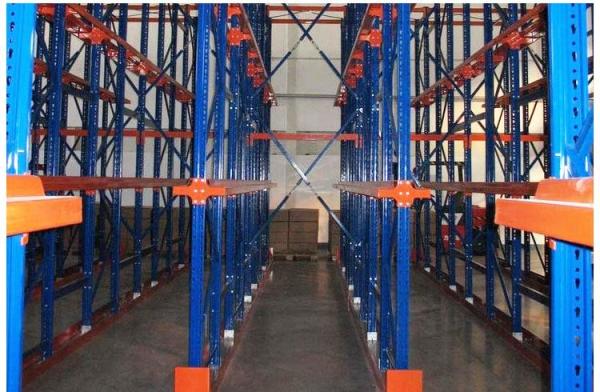

Adjustable Drive In Pallet Racking System , Pallet Rack Storage Systems For Cold Storage
Adjustable Drive In Pallet Racking System , Pallet Rack Storage Systems For Cold Storage
Adjustable Drive In Pallet Racking System , Pallet Rack Storage Systems For Cold Storage
Adjustable Drive In Pallet Racking System , Pallet Rack Storage Systems For Cold Storage
Adjustable Drive In Pallet Racking System , Pallet Rack Storage Systems For Cold Storage
Adjustable Drive In Pallet Racking System , Pallet Rack Storage Systems For Cold Storage
Adjustable Drive In Pallet Racking System , Pallet Rack Storage Systems For Cold Storage
Adjustable Drive In Pallet Racking System , Pallet Rack Storage Systems For Cold Storage
Specifications
Model Number :
W-DR2017523-3
Certification :
ISO9001/14001
MOQ :
20 Sets
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3500 Ton/Tons per Month
Delivery Time :
15-30 Days
Packaging Details :
Standard export carton with bubble film
Material :
Steel Q235/Q345, Steel Q235/245
Finish :
Corrosion Protection
Name :
cold storage racking system
Structure :
Assemble or welded
Weight Capacity :
maximum 1500kg/pallet
store layer: :
1 to 7 layers per bay
Technique :
Cold Rolled
Color :
Ral Color System
Description

Storage warehouse drive in pallet rack storage metal steel drive rack

Description:

1. Pallet drive in and drive through racking comprises upright frames, beams, supportive arms and guide rails as main components.

2. Careful attention should be paid for this system as there are fewer beams. It is necessary to install the top and lateral / back cross bracings to keep it stable.

1. Drive in rack system is last in first out store system. Suits for unified palletized goods.

2. Drive in rack system is a high density store system. It can use most of the warehouse space. So it can save space, save store cost. In the same area, push back rack can store much more goods.

3. Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.

Features:

1. Maximized space utilization.

2. Improved SKU management.

3. Increased throughput and flow.

4. More efficient picking abilities with less chance of errors.

5. Less on-hand inventory and more inventory turns.

6. Improved on-time product delivery by consolidating orders with less errors.

7. Increased product protection.

8. Reduced labor costs.

9. Improved safety.

10. Improved facility layout and appearance.

11. Improved ergonomics and reduced worker fatigue.

Product Name

Cold Rolled Steel coils Heavy Duty colorful drive in Rack made from steel
Material
Steel Q235
Loading Capacity
Customized and up to 4,000 Kg UDL/level
Racking Height
Customized and up to 11,000 mm
Racking Depth
700-1,200 mm
Beam Length
Customized and up to 3,600 mm
Racking Finish
Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated)
Packing Details
Standard export seaworthy packing

Specifications of Upright
Item
Width(mm)
Depth(mm)
Thickness(mm)
Loading Capacity(kg)
1
85
67
1.6
7000
2
85
67
1.8
8500
3
85
67
2.0
10000
4
85
67
2.3
12500
5
100
67
1.8
10500
6
100
67
2.0
12000
7
100
67
2.3
13800
8
100
95
2.0
12000
9
100
95
2.3
14500
10
100
95
2.5
16000
11
100
95
2.75
18000
12
100
95
3.0
20000
13
120
95
2.5
17000
14
120
95
2.75
19000
15
120
95
3.0
21000

Specifications of Beam
Type
Item
Height(mm)
Width(mm)
Thickness(mm)
P style Pipe(Step Beam)
1
50
30
1.5
2
60
40
1.5
3
80
50
1.5
4
110
70
1.5
5
140
70
1.5
6
160
70
1.5
Box Beam
7
80
50
1.5
8
100
50
1.5
9
110
50
1.5
10
120
50
1.5
11
140
50
1.8
12
160
50
2.0


Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.


Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
