Specifications
Model Number :
W-CR2017522-3
Certification :
ISO9001/14001
MOQ :
20 Sets
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3500 Ton/Tons per Month
Delivery Time :
15-20 Days
Packaging Details :
Wrapt in plastic film or in bulk.
Material :
Carbon Steel Q235
Capacity :
250~800 lbs (500~1500 kgs)
Usage :
Industrial Rack
Size :
Customized Size
Application Environment :
Normal Temperature or Cold Room
Application :
Pipe, wood,plate, steel pipe, constructure material
Scale :
Heavy Duty cantilever storage racks
Beam Connector Type :
Slotted Rivet with Safelock
Description

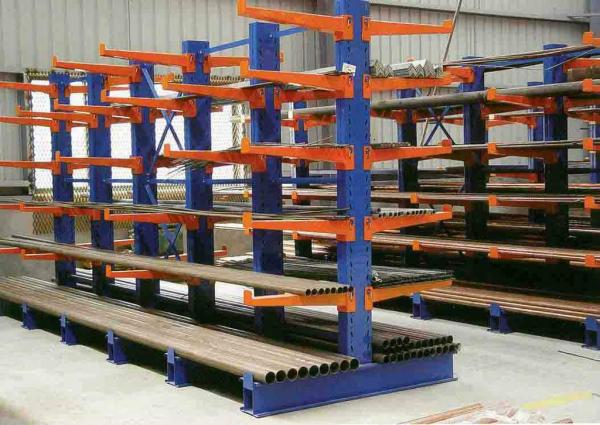

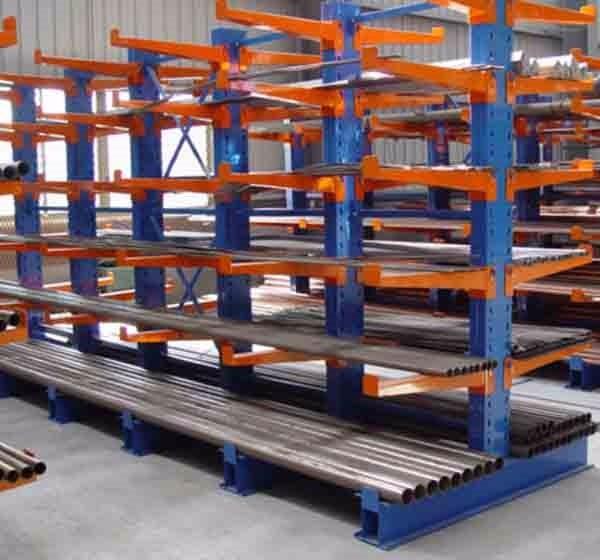

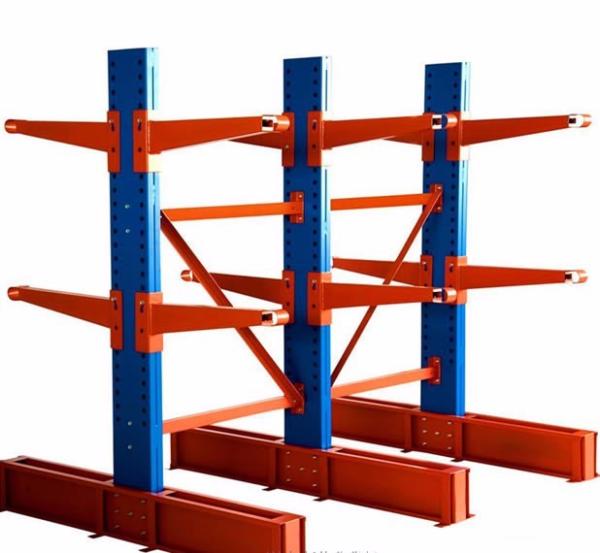

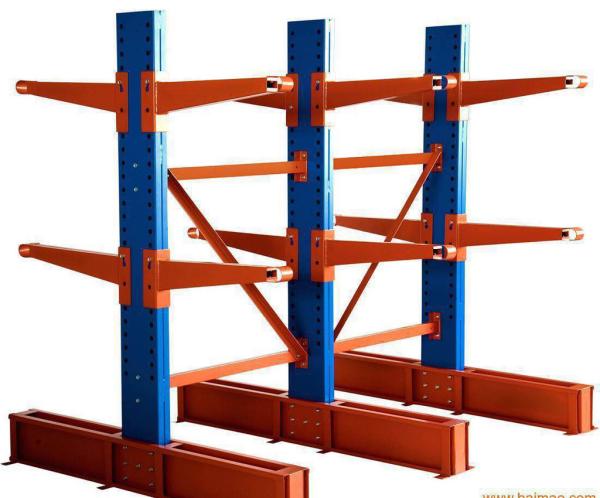

Mult Tiers Cantilever Pallet Racking Pallet Racking with high load capacity

Description:

Cantilever racking allows you to use your warehouse space more efficiently - you do not need to waste horizontal space with awkward posts and columns obstructing storage areas. Items best suited to such a system include furniture, building materials, piping, rolls, appliances, and flooring.The rack is made of good raw material cold rolled steel with features of excellent anti-corrsion and rust-proof function, stable quality and advanced automatic production technology.

Specification:

Material
high quality cold rolled steel
Size
customized
upright
70x90x(1.8-2.5)mm
60x80x(1.5-2.0)mm
Surface treatment
plastic powder coating
Pipe
50x(80-160)x(1.5-2.0)mm
colour
custom's need available according to Pantone colour
Features
-easy to install and dismantle
-service before and after sale
-high quality goods and checking carefully before delivery
-professional and in time delivery
package
separate packed,the truss,the shelves and upright posts wrapped with bubble film for long distance transportation.

Heavy weight shelves for warehouses Beam Post Distributed Loading Chart

UPRIGHT LOADING TABLE
80x60x1.8 8500KG/BAY
80x60x2.0 9400KG/BAY 100x70x1.8 11800KG/BAY
90x70x1.8 10000KG/BAY 100x70x2.0 13500KG/BAY
90x70x2.0 11800KG/BAY 100x70x2.3 15000KG/BAY
90x70x2.5 15000KG/BAY 100x70x2.5 16300KG/BAY
BOX BEAM LOADING TABLE
Beam length (mm) 80*50*1.5 100*40*1.5 100*50*1.5 110*50*1.5 120*40*1.5 120*50*1.5 140*40*1.4 140*50*1.5 160*40*1.5 160*50*1.5
1500 4286
1800 2977
1900 2672 3809 4535
2200 1993 2841 3382 4219
2300 1823 2599 3095 3860 3918 4665
2400 1674 2387 2842 3545 3598 4284
2500 1403 2000 2381 2970 3014 3598 4340 5160
2600 1297 1849 2201 2745 2787 3318 4010 4771
2700 1203 1715 2041 2546 2584 3077 3716 4425 5068 6033
3000 974 1389 1655 2065 2093 2492 3010 3585 4105 4887
3300 708 1010 1202 1500 1522 1812 2189 2610 2985 3555
3600 600 849 1010 1260 1279 1523 1839 2190 2508 2986
3800 540 762 907 1135 1148 1369 1658 1965 2251 2680
4000 485 687 818 1024 1036 1235 1550 1774 2032 2419

FAQ

Q: What is your trading terms?
A:
1. Payment term: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. Or L/C.
2. Lead time: Normally in 30 days after deposit received.
3. Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4. Shipping port: Shanghai China.


Q: How I can delivery my goods?
A:

1. Sea Freight: We will update sea freight once we know your sea port where goods will be delivered.
2. Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange to deliver the items.

Q: What is your service?
A:
1.Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized racks we can help you to design product.
4. We have very experienced professional engineers to make best solutions.

Q: How to purchase your product?
A:
Design drawing → Confirm drawing →Quotation → PI → Confirm PI → Arrange 30% deposit →Manufacturer→QC inspect → Pay balance → Shipping

Q: What is your advantage?
A:

1. Factory price: Factory direct sale competitive price.

2. Warranty: Two years warranty, the broken parts will be replaced and sent to you.
