Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
Specifications
Model Number :
T-steel mezzanine ZJ20174308
Certification :
AS4084
MOQ :
50m²
Price :
Negotiation
Payment Terms :
T/T, L/C
Delivery Time :
15-30 Days
Packaging Details :
bubble foam
Supply Ability :
10000m²
Name :
mezzanine racking system
Finish :
Corrosion Protection
Material :
Steel Q235/Q345, Steel Q235/245
Structure :
Assembled
Weight Capacity :
maximum 1500kg/pallet
Feature :
Safety, Flexible, Economical, Durable
Length Span :
3000-6000mm/upright
Width Span :
Max 6000mm/upright
Color :
Black or Gray
Description

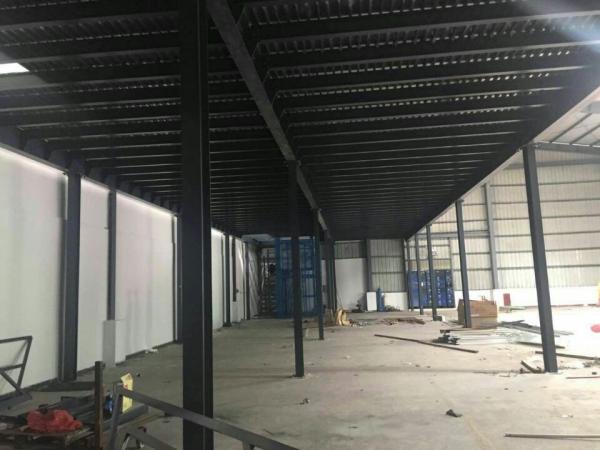

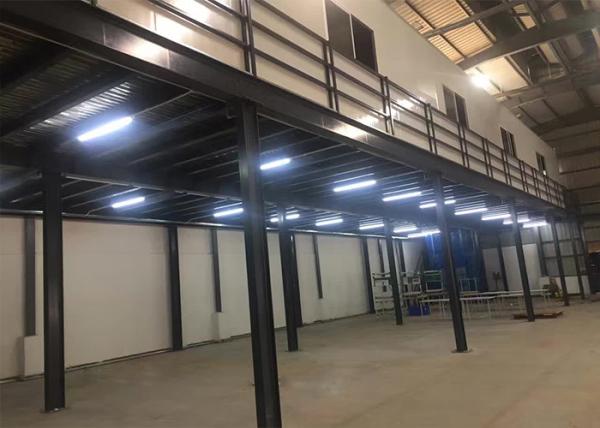

Black Warehouse Multi-level Industrial Mezzanine Floors for Storage or Office

Description:

Warehouse Mezzanine is made of cold rolled special shaped steel, with safe and excellent loading capacity, create more usable space. Also customized to fit your exact area, height, color and load requirements.
Taking full advantage of the space, it is a typical application for manual picking goods.

1. With composite racking structure, patented light-steel floor panel structure
2. Floor panel with large load capacity, low cost, quick construction
3. Can be designed into one layer or multi-layers according to actual situation
4. Ensures fullest space utilization
5. Provides direct access to all pallets
6. Surface: powder coated or galvanized and color optional
7. Can be designed according to clients' requirements

Futures


1. Doubly make use of ground space
2. Depending on the space of store, we can design the average span(3000-6000mm). The bearing limit can reach 1000kg/m2
3. Work in high efficiency combined with lift platform.
4.The advantage of the Mezzanine floor racking is safe, good looking& removable.

Advantages

Versatility and flexibility to meet any storage needs:

1. The most commonly used, of all storage systems for palletised goods. Low capital cost.
2. Easy installation and simple to adjust.
3. Compatible with most types of handling equipment.
4. Less storage density compared to other pallet racking systems.
5. Infinitely adjustable and offering a wide range of options and components.
6. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
7. quality garantee 5 years.
8. More than 100 workers enable us to garantee the delivery time , normal orders witin 20days.

Quotation requirement

A) The warehouse plan.
B) The size of Mezzanine.
C) The size of Mezzanine rack(length*width*height).
D) How many bays you want.
E) How many layers you want.
F) The loading capacity of each layer.
G) The RAL color you want.

Namewarehouse multi-level Industrial Mezzanine Floors for storage or office
CertificationAS4084standard


Details for common uprights

Upright Type(mm)Thickness(mm)Safety FactorLoading(KG)/m²


160*88

5.5-8.01.5500-1000
1.5


200*100

5.5-8.01.5
1.5


250*125

6.0-9.01.5
300*1506.5-9.01.5
350*1757.0-11
