Multi Levels Cantilever Storage Racks Long Life Span Strong Safe Structure
Multi Levels Cantilever Storage Racks Long Life Span Strong Safe Structure
Multi Levels Cantilever Storage Racks Long Life Span Strong Safe Structure
Multi Levels Cantilever Storage Racks Long Life Span Strong Safe Structure
Multi Levels Cantilever Storage Racks Long Life Span Strong Safe Structure
Multi Levels Cantilever Storage Racks Long Life Span Strong Safe Structure
Specifications
Brand Name :
Generalization
Model Number :
MAD-32
Certification :
AS4084
Place of Origin :
China
MOQ :
15pcs
Price :
Depends on the size of racks
Payment Terms :
T/T or L/C
Supply Ability :
3000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Packed in foam
Product Name :
Cantilever Storage Racks
Size :
customized
Finish :
Powder coated
color :
Optional
Application :
warehouse
Feature :
Corrosion protection
material :
Q235B cold steel
Capacity :
200-2500kg/arm
Description

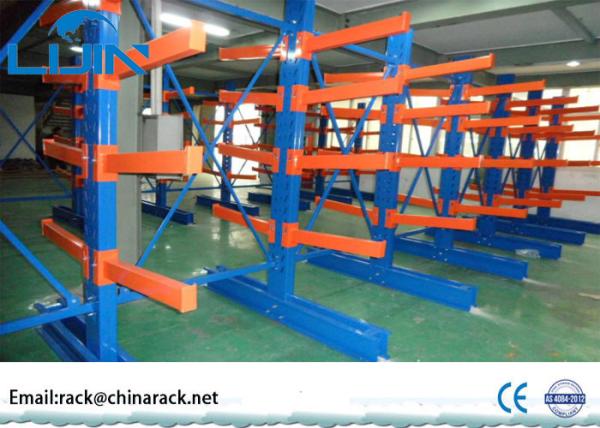

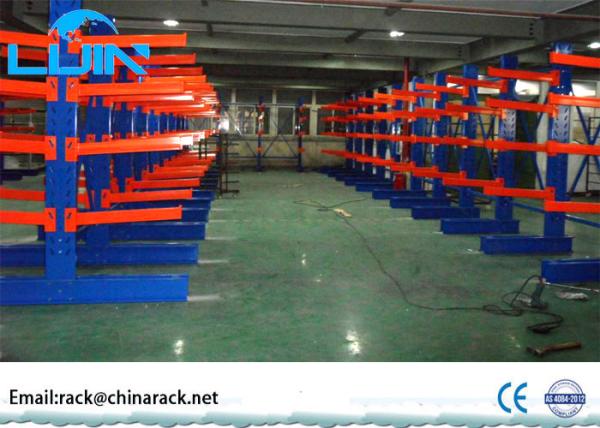

Multi levels long span heavy duty warehouse double side cantilever racking

Specifications:

1) Strong and safe structures, loading capacity 300 to 1000kgs per arm.

2) Height range from 1.8m to 10m customized for clients.

3) The distance of the levels can be adjusted by the pitch of 50mm.

4) Double side or single side arms racking system.

5) Bolted arm and base connection, easy installation and dismantle.

6) It can be customized as your special requirements.

7) We can add the back mesh, side mesh, back board, side board as you want.

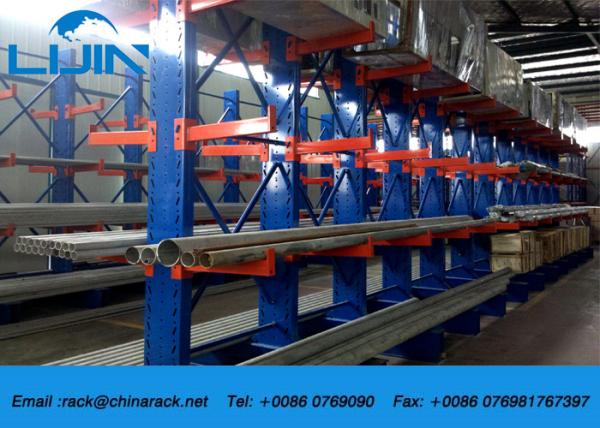

8) Good stock for irregular or long material like as pipe, steel etc.

9) Putting the decking on the cantilever arms, it can be used as shelf racks. Put the pallet supporting bars on the cantilever arms, it turn into pallet racks.

10) Can be operated by forklift

Product Name Cantilever Racking System

Unit Bay Standard Specification Extra Bay Added × W1200mm

(Customized Sizes Available)

 Single Sided Double Sided
W1200×D600×H2500mm W1200×D1200×H2500mm
W1200×D1000×H3000mm W1200×D2000×H3000mm
W1200×D1200×H3600mm W1200×D2400×H3600mm
W1200×D1500×H4800mm W1200×D3000×H4800mm
Cantilever Rack Levels 2 levels, 3 levels, 4 levels, 5 levels......11levels
Arm Length 600mm, 1000mm, 1200mm, 1500mm
Arm Load Capacity 300KG---2500KGper arm
Raw Material high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group
Material Thickness 1.5mm, 1.8mm, 2.0mm, 2.5mm
Surface Treatment deoil, derusting and powder coat paint finish
Rack Colors standard blue, orange and customized available
HS Code 7308900000

Please inform us the listed information in your inquiry for quick quotation:


A) The warehouse sketch

B) The size of cantilever rack (length*width*height)
C) How many bays you want
D) How many layers you want
E) The loading capacity of each layer
F) The color you want

Competitive Advantage:

We have tested the loading capacity of each arm. The result is that 2500kg/arm is no problem. The height we can make is 5 meters.

Multi Levels Cantilever Storage Racks Long Life Span Strong Safe Structure
