Multi Levels Warehouse Cantilever Storage Racks 300KG - 2500KG Per Arm
Multi Levels Warehouse Cantilever Storage Racks 300KG - 2500KG Per Arm
Multi Levels Warehouse Cantilever Storage Racks 300KG - 2500KG Per Arm
Multi Levels Warehouse Cantilever Storage Racks 300KG - 2500KG Per Arm
Multi Levels Warehouse Cantilever Storage Racks 300KG - 2500KG Per Arm
Multi Levels Warehouse Cantilever Storage Racks 300KG - 2500KG Per Arm
Specifications
Brand Name :
Generalization
Model Number :
MAD-1
Certification :
AS4084
Place of Origin :
China
MOQ :
15pcs
Price :
Depends on the size of racks
Payment Terms :
T/T or L/C
Supply Ability :
3000pcs per month
Delivery Time :
20 working days after received your payment
Packaging Details :
Packed in foam
Product Name :
Cantilever Storage Racks
Size :
customized
Finish :
Powder coated
color :
Optional
Application :
warehouse
Feature :
Corrosion protection
material :
Q235B cold steel
Capacity :
200-2500kg/arm
Description

AS4084-2012 Warehouse Cantilever Storage Racks with many levels

Please inform us the listed information in your inquiry for quick quotation:


A) The warehouse sketch

B) The size of cantilever rack (length*width*height)
C) How many bays you want
D) How many layers you want
E) The loading capacity of each layer
F) The color you want

Description:

Stow offers a complete range of cantilever racking systems for the storage of long goods. For loads varying from 50 to 1500 kg per cantilever arm and for most types of long goods an optimised storage solution can be provided.

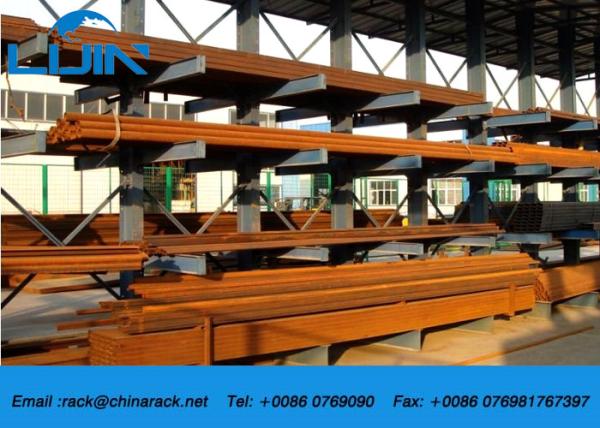

Typical long goods are metal and plastic tubes, wooden boards, hot rolled steel profiles. The Construction of our Cantilever racking is made of hot rolled steel profiles (HEA or IPE) in various sizes. The standard finish is a high quality epoxy polyester powder coating for inside applications or a hot galvanised coating for outside applications.

Technical characteristics Cantilever racking

  • The column and foot are welded or bolted together.

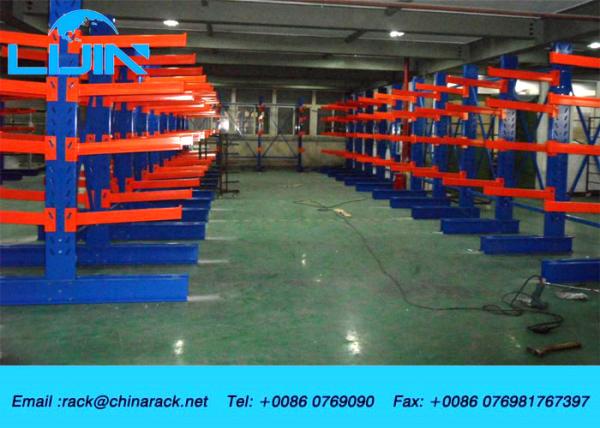

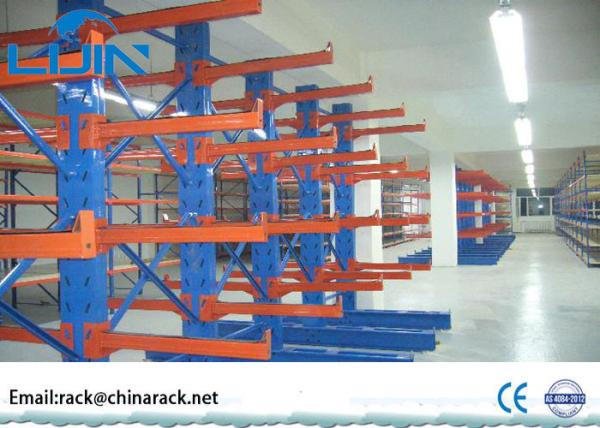

  • The cantilever racks can be used single or double sided.
  • Column heights of up to 5 meter, perforated every 75mm.
  • The Cantilever racking is suitable for forklift and crane handling.
  • Ground guidance can be provided as an option.
  • The beams are bolted and adjustable per 100mm, corresponding with the sizes of the stored goods.
  • Arm lengths of our Cantilever racking range from 600 to 1200mm.

Product Name Cantilever Racking System

Unit Bay Standard Specification Extra Bay Added × W1200mm

(Customized Sizes Available)

 Single Sided Double Sided
W1200×D600×H2500mm W1200×D1200×H2500mm
W1200×D1000×H3000mm W1200×D2000×H3000mm
W1200×D1200×H3600mm W1200×D2400×H3600mm
W1200×D1500×H4800mm W1200×D3000×H4800mm
Cantilever Rack Levels 2 levels, 3 levels, 4 levels, 5 levels......11levels
Arm Length 600mm, 1000mm, 1200mm, 1500mm
Arm Load Capacity 300KG---2500KGper arm
Raw Material high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group
Material Thickness 1.5mm, 1.8mm, 2.0mm, 2.5mm
Surface Treatment deoil, derusting and powder coat paint finish
Rack Colors standard blue, orange and customized available
HS Code 7308900000

Competitive Advantage:

We are the professional manufacturer of warehouse racking in China .
All products have detected by SGS andAS4084 quality certification.All the rack that we
produce is customized , We will be happy to give you a quotation receipt of
your detailed requirements.

We have tested the loading capacity of each arm. The result is that 2500kg/arm is no problem. The height we can make is 5 meters.
