Specifications
Brand Name :
Lijin
Model Number :
HD-ZW19101501
Place of Origin :
China
MOQ :
10
Price :
60
Payment Terms :
L/C, D/P, T/T
Material :
Cold-rolled Steel Q235
Weight capacity :
800KG-2000KG/Pallet
Use :
Warehouse Rack
Type :
Cantilevered
Feature :
Corrosion Protection
Height :
1800-12000mm,customized
Width :
customized
Depth :
1.8mm;2.0mm;2.3mm;2
Color :
Black wrinkle or RALsystem
Surface treatment :
High Grade Cold-rolled Sheet
Size :
Customized
Packing :
Bubble Pack
Description

High quality Storage Cantilever Racking of Double and Single Side LIJIN

Storage Cantilever Racking of Double and Single Side LIJIN

Cantilever Racking

- Specially designed for long or varying lengths materials
- Ideal for products such as metal beams, pipes, wooden boards, steel sheets etc. Widely used in building material stores, mechanical processing industries.
- Hot dipped galvanized cantilever is great for outdoor use
ICHO Storage, Cantilever Rack, Storage Rack, Racking

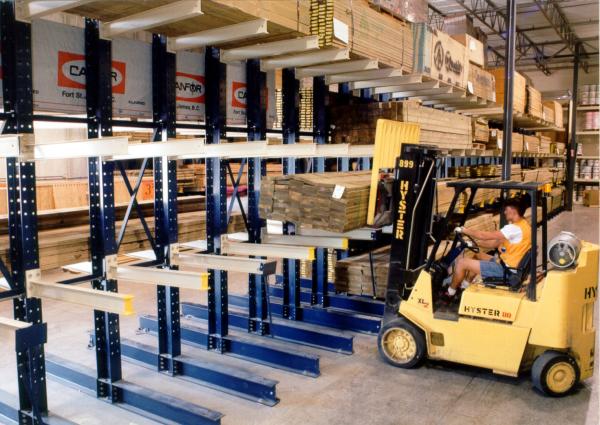

Lijin cantilever rack is a type of racking that is used for storage of irregular or long items. This is achieved by eliminating obstructions and providing a clear opening in the front of the rack in lengths as long as desired. These rackings can also be decked for storage of items smaller than the spacing between towers. Tower spacing, upright capacity, and arm capacity are critical for a safe and proper system. This racking is available in roll form and structural styles. It is widely used in mechanical manufacture and architecture material supermarket enterprises.

Cantilever Racking column
base
arm
H bracing
x bracing
support bar
special arm
cantilever beam
Items No. Heavy duty cantilever racking
Brand ICHO
Style Single side cantilever and double side cantilever
Arm Length 800-1800mm
Load Heavy duty and Extra heavy duty cantilever
Column Section 200x90
300x90
400x90
Characteristics Flaexible,Steady,Safety and Economical
Certifications CE,ISO9001,FEM10.2.09,AS4084-2012,RMI
Usage Warehouse /Storehouse/Depot/Depository/wareroom/Depositary/architecture material supermarket

Technicial data for cantilever rack

Length (mm) Height (mm) Max Beaming Capacity (kg)
400 60 500
500 60 400
500 75 750
600 60 350
600 100 1000
750 70 500
750 110 1000
1000 90 500
1000 135 1000
1250 100 500
1250 155 1000
1500 110 500
1500 180 1000
1750 160 500
1750 200 1000
2000 180 500
2000 220 1000

Please provide information for quick quotation

- Drawing (if available) of rack; if not, we can offer CAD design service for you

- Size of your warehouse (Length x Width x Clear height)

- Storage requirement on the cargo(temperature etc)

- Size (W*D*H) & weight of pallet (after loading)

- How many pallets each layer you would like

- How many layers you would like

-Parameter of your forklift ( to decide the width of aisle between racking).

-The color you want


FAQ
1, What is MOQ limitation for rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.

2, What is the lead time
++ As per 20FT container loading, manufacture time is about 10-15 days; Regarding some customized items 20-25 days will be covered.

3, What is payments methods you can accept?
++ T/T and L/C are welcomed.

4, How about your sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for your rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
