Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers
Specifications
Brand Name :
Lijin
Model Number :
HD6877
Certification :
IS9001;CE
Place of Origin :
China
MOQ :
5
Price :
Depend on the size of rack
Payment Terms :
T/T, L/C
Supply Ability :
2000 Set/Sets per Month
Delivery Time :
15 days
Packaging Details :
Bubble film+carton package
Material :
Q235b steel warehouse tyre racking
Layer :
2 ~ 6 Layers
Surface treatment :
Electrostatic Powder Coating
Loading Capacity :
MAX 4000KG PER PALLET
OEM/ODM :
YES
Components :
Upright Frame + Beam
Delivery time :
7-25days
Description

China Supplier Heavy Duty Metal Steel Warehouse Racking Stacking Storage Goods Shelving Rack

Rack type:Selective pallet racking

Advantages of selective pallet racking:

1-Cost effective;

2-Easy installing and disinstalling;

3-Most widely used rack type;

Load:up to 4400 kgs per level

Height:as high as 12000mm

Size:customized

Customized

Pls. Tell the size and loading per layer.Our accpet customize size and loading capacity.
If you need, The shelf can add extra layer.(Standard is 2 layers)
Model
Capacity/KG
Size( L*W*H )mm
Layer
Remark
HD-01
1000KG
2300*1000*2550
2
Upright:2550*1000*90*70*1.5mm
Beam:2300*100*45*1.2mm
HD-02
1500KG
2300*1000*2550
2
Upright:2550*1000*90*70*1.5mm
Beam:2300*100*45*1.5mm
HD-03
2000KG
2300*1000*2550
2
Upright:2550*1000*90*70*1.8mm
Beam:2300*120*45*1.5mm
HD-04
300KG
2300*1000*2550
2
Upright:2550*1000*90*70*2.0mm
Beam:2300*140*45*1.5mm
HD-05
4000KG
2300*1000*2550
2
Upright:2550*1000*90*70*2.0mm
Beam:2300*160*45*1.5mm

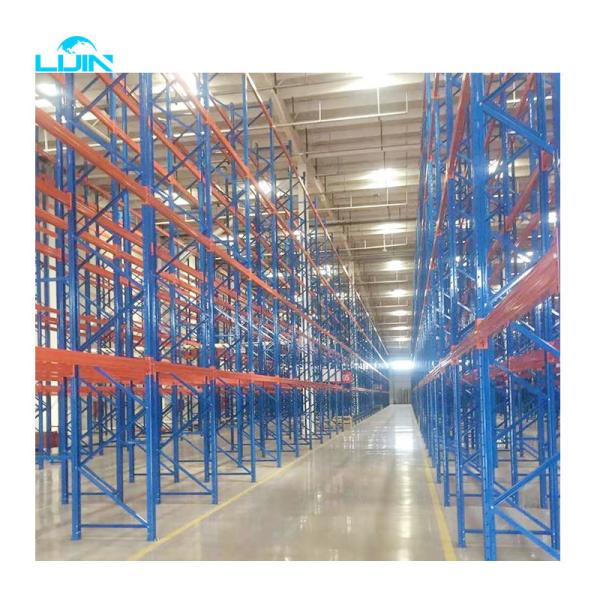

Selective pallet rack or heavy pallet rack is a common racking system in use today. pallet rack systems consist of steel uprights and beams to support some type of decking to store goods. These systems offer maximum flexibility because the strength, height and length of the bays can be varied during installation to suit the stored material.
Strengths:
1,Adapt to a wide range of goods,100% cargo picking.
2,Compatible with forklifts and other handing equipment.
3,Beam can be flexibly adjusted to suit different cargo height.
4,Easy to disassemble and move.

If you have any interested, please feel free to contact me:

Tel: (86)769-81769089 (86)769-81769090

Fax: (86)769-81767397 Mobile: (86)18390959816

Whatsapp:+86 18390959816 Skype: lee@chinrack.net
