1500L×3 Supercritical Oil CO2 Extraction Machine For Pumpkin Seed Oil
1500L×3 Supercritical Oil CO2 Extraction Machine For Pumpkin Seed Oil
Specifications
Brand Name :
1500L×3 Supercritical CO2 Extraction Machine
Model Number :
SCE 1500-3-350
Certification :
ASME CE PED
Place of Origin :
Zunyi City China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per year
Delivery Time :
180 days for design and manufacture, 30 days for packaging and shipping, 90 days for installation and commissioning
Packaging Details :
Metal frame & skin package
Extractors :
1850L，350bar，3sets
Separators :
1000L，200bar，2sets
Pressure :
~350bar
Temperature :
~85℃
Flow :
15000L/h
Power :
900kw
Capacity :
5000kg/24h
Area :
700m2
Height :
14m
Material :
The part in contact with CO2 and water is 304 stainless steel 1sets
Description

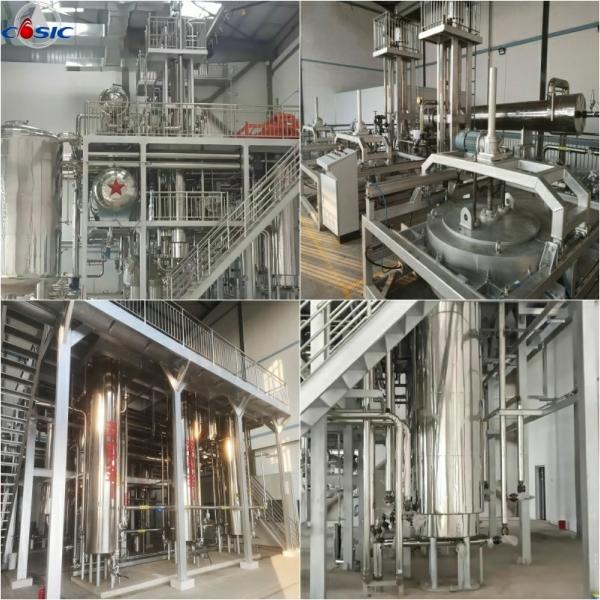

1500L×3 Pumpkin seed Oil Supercritical CO2 Extraction Machine

The plant of 1500L×3 is three extractor two separator SCFE device, the working medium is CO2, which can be reused.It is widely used in Pharmaceutical, cosmetics, food, health products, new materials and other fields.The extract, separate pressure and temperature can be automatic and remote controlled by PLC. The extractors can work with the way of series, parallel and single. The series valves on the import and export of each extractor can be manual controlled, the highest working pressure control method of each extractor during working is by the use of pressure transmitter, safety valve and control signals. It is safety and reliable. The extractor cover of this plant uses hydraulic pressure quick opening structure. The metal contact with material of this plant, such as container inner surface, pipe, valve and so on. All of them are manufactured with stainless steel which has the characters of anti-sour and anti-alkali and satisfy food hygiene demand.

The max design pressure of this plant is 350bar, the highest working pressure is 320bar, and the volume of extraction basket is 1500L.We will strict carry out the related national standard and rule demand during design, manufacture, test, installation and commissioning.

The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature, outside is thin stainless steel, which will make our device beauty.

No. Type Specification Pressure Flow Area Height

Capacity of

raw material
1 5L+1L two extractors two separators 500bar 60L/H 10 m2 2.5 m testing purpose
2 10L three extractors two separators 500bar 100L/H 10 m2 3 m 10 to 20 kg
3 25LX3 three extractors two separators 350bar ~ 750bar 300L/H 20 m2 4.5 m 50 to 150 kg
4 50LX3 three extractors two separators 350bar ~ 750bar 600L/H 80 m2 5.5 m 0.1 to 0.3 ton
5 100LX3 three extractors two separators 350bar ~ 750bar 1000L/H 130 m2 7 m 0.2 to 0.6 ton
6 200LX3 three extractors two separators 350bar ~ 750bar 1500L/H 200 m2 8.5 m 0.5 to 1.2 ton
7 300LX3 three extractors two separators 350bar ~ 750bar 2500L/H 300 m2 9 m 0.7 to 2 ton
8 400LX3 three extractors two separators 350bar ~ 750bar 3500L/H 400 m2 9.5 m 1 to 2.5 ton
9 500LX3 three extractors two separators 350bar ~ 750bar 4000L/H 450 m2 10 m 1 to 3 ton
10 600LX3 three extractors two separators 350bar ~ 750bar 4000L/H 500 m2 10 m 1.5 to 3.5 ton
11 800LX3 three extractors two separators 350bar ~ 550bar 6000L/H 540 m2 12 m 2.5 to 4.5 ton
12 1000LX3 three extractors two separators 350bar ~ 550bar 8000L/H 540 m2 14 m 3 to 6 ton
13 1500LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 14 m 3.5 to 8 ton
14 2000LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 16 m 5 to 12 ton
15 3500LX3 three extractors two separators 350bar ~ 550bar 25000L/H 700 m2 16 m 8 to 18 ton
16 5000LX3 three extractors two separators 350bar ~ 550bar 25000L/H 800 m2 16 m 12 to 24 ton
