Commercial 10~100 Amp Rotary Isolator Switch Electrical Isolation Switch IP65 CE, Semko


KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.

Description:

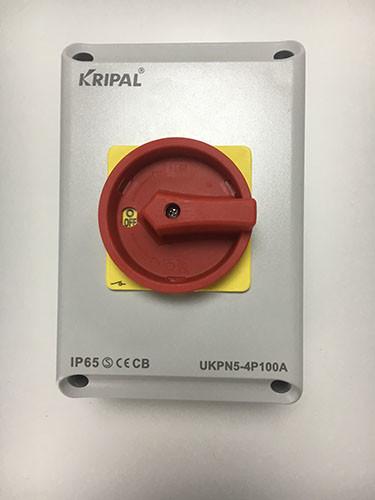

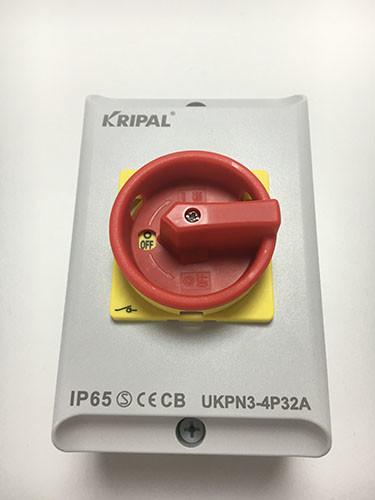

1. These rotary isolator switches are used to switch power to commercial / light industrial applications.

2. The red switch can be used as an emergency stop, and can be locked in the “OFF” position using

the yellow surrounding ring and padlock.

3. Easy cable access via M20/25 knockouts

4. The screws are captive retained and would not drop off when the lid is turned over.

5. Earth terminal is included

6. Enclosure: brand-new PC, White

7. Standard: manufactured and tested as IEC 60947-3

Specifications:

Applications:

Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches

FAQ:

1. Samples: provided freely

2. Warranty: 3 years; every item is tested before delivery, professional testing lab in factory

3. ODM, OEM: acceptable; mould tooling is finished in our own mould tooling center

4. Replacement Terms: The faulty items will be replaced freely, once we confirm that they result from poor

quality or incorrect production. Regarding the delivery of replacements, it is negotiable between two parties.

Working condition:

1. Recommended ambient temperature -5^oC~42^oC

2. Installation altitude: ≤ 2000m

3. Relative atmosphere humidity do not exceed 50% when the highest temperature is +40°C. At lower temperature, higher humidity can be allowed.

For example, humidity can reach 90% when temperature is 20°C. Special measures should be taken when the congealed dew appears on the surface caused by the change of temperature.

Declaration:

KRIPAL is a factory with more than 20 years manufacturing experience and the mold tooling are built in our own mold tooling center. Furthermore our items are different from others to a certain degree. Hereby, we claim that KRIPAL is the only one who makes this item and the same products you got from other companies are also supplied by KRIPAL.

Why not get goods from us directly?
