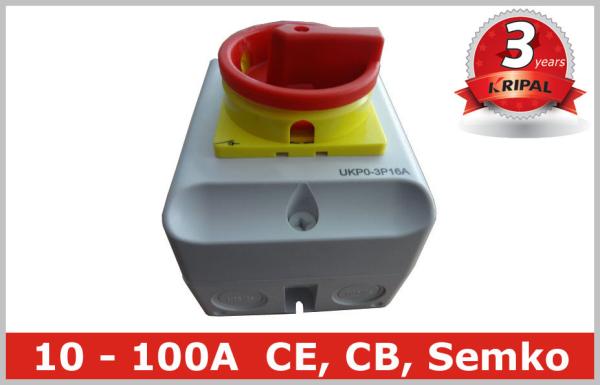

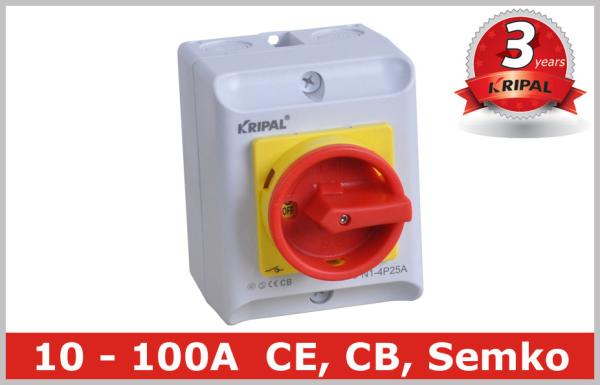

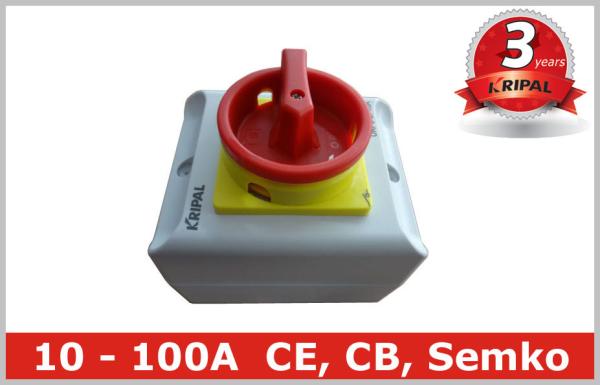

Waterproof IP65 Rotary Isolator Switch / 2 Pole 3 Pole Disconnect Switch
Waterproof IP65 Rotary Isolator Switch / 2 Pole 3 Pole Disconnect Switch
Waterproof IP65 Rotary Isolator Switch / 2 Pole 3 Pole Disconnect Switch
Waterproof IP65 Rotary Isolator Switch / 2 Pole 3 Pole Disconnect Switch
Waterproof IP65 Rotary Isolator Switch / 2 Pole 3 Pole Disconnect Switch
Waterproof IP65 Rotary Isolator Switch / 2 Pole 3 Pole Disconnect Switch
Waterproof IP65 Rotary Isolator Switch / 2 Pole 3 Pole Disconnect Switch
Waterproof IP65 Rotary Isolator Switch / 2 Pole 3 Pole Disconnect Switch
Specifications
Brand Name :
KRIPAL
Model Number :
UKPN1
Certification :
CE, Semko
Place of Origin :
China
MOQ :
500pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Product :
Rotary isolator switch
Cable access :
M20/25 knockouts
Protection grade :
IP65
Red/Yellow rings :
lockable
Enclosure :
brand-new PC
earth terminals :
included
Description

Waterproof IP65 Rotary Isolator Switch / 2 Pole 3 Pole Disconnect Switch

KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.

UKPN series rotary isolator switches offer a solution for most cam switch operations. Different types can be used as control switches, switches to be installed in equipments and switches for motor control according to IEC60947-3. This range offers current capacity from 10A ~100A.


The product complies with IEC60947-3.

With the UKPN range comes an important safety feature, which prevents the enclosure cover being removed when the device has been padlocked in the 'Off' position. When combined with the excellent on-load breaking capacity of the UKPN family, this feature ensures that the term 'Safety Switch' is fully satisfied.

Description:

1. These rotary isolator switches are used to switch power to commercial / light industrial applications.

2. The red switch can be used as an emergency stop, and can be locked in the “OFF” position using

the yellow surrounding ring and padlock.

3. Easy cable access via M20/25 knockouts.

4. The screws are captive retained and would not drop off when the lid is turned over.

5. Earth terminal is included.

6. Enclosure: brand-new PC, White.

7. Standard: manufactured and tested as IEC 60947-3.

Specifications:

No.

Tech Parameters

requirement

1.

Rated voltage

below 440V

2.

rated current

10A,16A,20A,25A,32A,40A,50A,63A,80A,100A

3.

frequency

AC50HZ

4.

No. of poles

2P,3P,4P,5P

5.

No. of layers

make as required with circuit diagram

6.

panel size

64*64mm

7.

color of handle

Black/red

8.

Working temperature

-25°C~+40°C

9.

Working height

≤2,000m

10.

Relative humidity

≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C

(eg.: humidity 90%----teperature20°C)

11.

Installation conditions

pollution class III

12.

Mechanical life

0.1*106times

13.

Electrical life

0.03*106times

14.

Operative frequency

120times/hour

15.

Transform angle

90°

Applications:

Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches.
