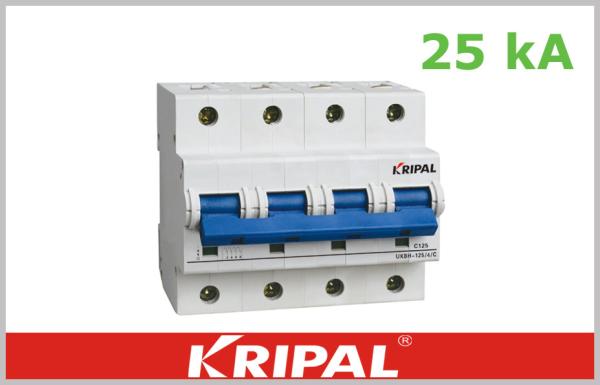

20/25/32/40/50/63/80/100/125Amp Mini Circuit Breaker 1/2/3/4Pole Bimetallic MCB C,D Curve breaking capacity:25KA
20/25/32/40/50/63/80/100/125Amp Mini Circuit Breaker 1/2/3/4Pole Bimetallic MCB C,D Curve breaking capacity:25KA
Specifications
Brand Name :
KRIPAL
Model Number :
UKBH
Certification :
CE
Place of Origin :
China
MOQ :
960 pcs
Price :
negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
200000 pcs per month
Delivery Time :
3~20 days and depends on ordering quantity
Packaging Details :
12 poles packed in one small box and then in carton (carton size:45*24*34cm)
Breaking capacity :
25 ka
Poles available :
1pole, 2 pole, 3 pole, 4pole
Ampere :
20, 25, 32, 40, 50, 63, 80, 100, 125A
Voltage :
230/400V
Curve :
C; D
Patent :
Design patent
Description

20/25/32/40/50/63/80/100/125Amp Mini Circuit Breaker 1/2/3/4Pole Bimetallic MCB C,D Curve breaking capacity:25KA

UKBH Mini circuit breaker is applicable to electric circuits with rated voltage 230V/400V AC, Frequency 50/60Hz and rated current up to 125Amp. The product provides protection against overload and short circuit to electric circuits and equipments in household and commercial installation. MCB is also used as Non-frequent changeover of electric circuits.

Desctription:

UKBH series has many merits of high breaking capacity (up to 25KA), good reliability of sensitive action, convenient multi-pole assorting, long using life ect. They are mainly used for overload and short circuit protection within the circuit of AC 50/60Hz, 230V in single pole,double poles, 400V in three & four poles.

Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Specitifcation:

Type UKBH-125
Number of Poles 1P, 2P, 3P, 4P
Rated Current (A) 20, 25, 32, 40, 50, 63, 80, 100, 125 A
Breaking Capacity (A) 25KA
Rated Voltage (V) 230/400 V
Rated Frequency 50/60Hz
Endurance ≥20000
Circumstance Temperature -5°C~+40°C
Electrical Life no less than 8000 operations
Mechanical Life (O-C) no less than 20000 operations
Protection Degree IP40
There're many types choice,when you place an order, pls specify you need as detail as possible, so we can price you quickly.
Such as UKBH-125/1/C20 240Pcs(Type,pole,curve,current,quantity).

Features:

· In compliance with IEC/EN60947-2

· With indicator function in the contact position.

· Connecting function of double busbar, to adapt to wider use of premises

· Maximum connecting ability of 25mm2, wiring torque 3Nm, applicable to a variety of installing equipments, wiring stronger

· Protection class:IP40

Classifications:

There are three main type charcteristics curve of MCBs:

1. Type B - trips between 3 and 5 times full load current;

2. Type C - trips between 5 and 10 times full load current;

3. Type D - trips between 10 and 20 times full load current.

Special requirements?

We will help you find an individual solution for your switching needs.

Our project engineers are here to meet the special requirements of your project and assist to develop a solution as a partner.

Should your requirements not be covered by our extensive standard product range we have our own R&D and mould tooling center for special switches in order to flexibly, promptly and cost effectively meet your individual requirements.

Just let us know your ideas, and we will show you a great solution.

There're many types choice,when you place an order, pls specify you need as detail as possible, so we can price you quickly.
Such as UKBH-125/1/C20 240Pcs(Type,pole,curve,current,quantity).
