56SO 66SO series Waterproof Switch Socket Outdoor Industrial Receptacles
56SO 66SO series Waterproof Switch Socket Outdoor Industrial Receptacles
Specifications
Brand Name :
KRIPAL
Model Number :
56SO332
Place of Origin :
China
MOQ :
500 pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Color :
RAL 7035
Enclosure :
brand-new PC
Plastic parts inside :
Nylon
Metal parts :
Copper
Contacts :
silver
Available poles :
1pole 2pole, 3pole,
Description

56SO 66SO series Waterproof Switch Socket Outdoor Industrial Receptacles

Description:

1. IP56 series 110-250V socket outlets feature a patented transparent hinged flap which snaps shut and locks over the socket when the plug is withdrawn, forming an automatic IP66 seal.


2. The transparent flap enables instant visual inspection of socket condition and pin configuration.

3. The full range of waterproof sockets accommodate both the superseded IP66 plain plugs and the current IP66 retention ring plugs in order to rationalise the number of variations required.

4. Earth and neutral connectors accommodating 3 x 6mm2 cable are supplied with all 500V Models.

5. Terminal housings are moulded in tough polyester to minimise damage.

6. It is widely used in power, winery, sporting, outdoor, shipyards and all industries field.

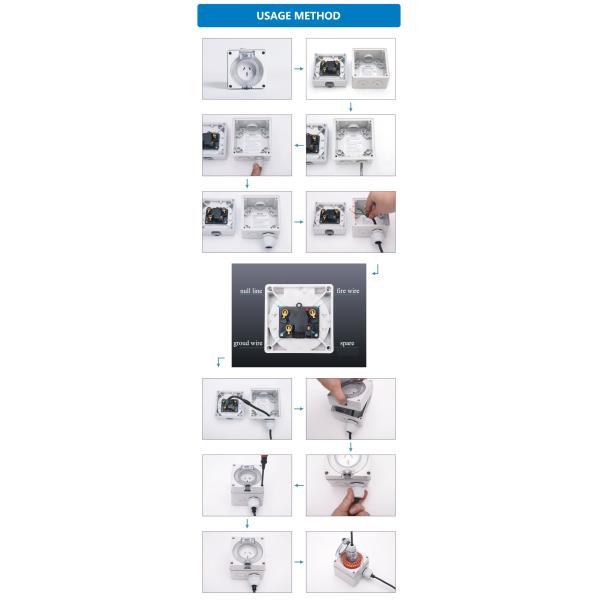

Wiring:

1. Cables looped in and out from overhead.
2. In and out from underground
3. In and out straight through the switch.
4. Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.
5. Samples provided freely.

Specifications:

56SO Series 110-250V Socket Outlets

Model 56SO 56SO 56SO 56SO 56SO 56SO 56SO
310 310/2 315 313 316 320 332
Rated OperationalUe(-50Hz) V 250 250 250 250 110 250 250
Rated Thermal Current A 10 10 15 13 13 20 32
Poles 3 3 3 3 3 3 3
Cable Cross Section mm2 0.75-10 0.75-10 0.75-10 0.75-10 0.75-6 0.75-10 0.75-10
IP ratings IP66 IP66 IP66 IP66 IP66 IP66 IP66

56SO Series 500V Socket Outlets

Model 56SO 56SO 56SO 56SO 56SO 56SO 56SO 56SO 56SO 56SO
410 420 432 435 450 516 520 532 540 550
Rated OperationalUe(-50Hz) V 500 500 500 500 500 500 500 500 500 500
Rated Thermal Current A 10 20 32 35 50 16 20 32 40 50
Poles 4 4 4 4 4 5 5 5 5 5
Cable Cross Section mm2 1-10 1-10 1-16 1-16 1-25 1-10 1-10 1-16 1-16 1-25
IP ratings IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66 IP66

Application:

1, 56SO series industrial waterproof Socket is used to isolate to ensure the safety of maintenance work.

2, The industrial switch has perfect protection to your safe for using of electricity in the rain, dust, freezing, high temperature, strong ultraviolet radiation and other harsh outdoor environments demand.


3, It is suitable for any outdoor application conditions


4, It can be panel mounting on surface.

56SO 66SO series Waterproof Switch Socket Outdoor Industrial Receptacles

56SO 66SO series Waterproof Switch Socket Outdoor Industrial Receptacles

56SO 66SO series Waterproof Switch Socket Outdoor Industrial Receptacles56SO 66SO series Waterproof Switch Socket Outdoor Industrial Receptacles
