250V 500V 32 Amp Weatherproof Switch Socket 3 Pole Rotary Switch
250V 500V 32 Amp Weatherproof Switch Socket 3 Pole Rotary Switch
Specifications
Brand Name :
KRIPAL
Model Number :
56SW332
Place of Origin :
China
MOQ :
500 pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Color :
RAL 7035
Enclosure :
brand-new PC
Plastic parts inside :
Nylon
Metal parts :
Copper
Contacts :
silver
Available poles :
1pole 2pole, 3pole,
Description

250V 500V 32 Amp Weatherproof Switch Socket 3 Pole Rotary Switch

Description:

56SW Series Weatherproof Surface Switches are available from 250V, 10A to 500V 50A. They incorporate a positive, rotary switch action. 'ON' and 'OFF' Positions are clearly marked and there is provision for two padlocks.


Hole diameter is 8mm. If locking is required in the 'ON' position, simply drill a hole where necessary.

To provide easier wiring of our 56 Series Three Pole 50A Switch, a deeper two gang enclosure and centrally mounted option (Cat. No. 56SW363/2), allows additional room for wiring associated with this application.

Earth and neutral connectors accommodating 3 x 6mm2 cables are supplied

Wiring:

1. Cables looped in and out from overhead.
2. In and out from underground
3. In and out straight through the switch.
4. Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.
5. Samples provided freely.

Specifications:

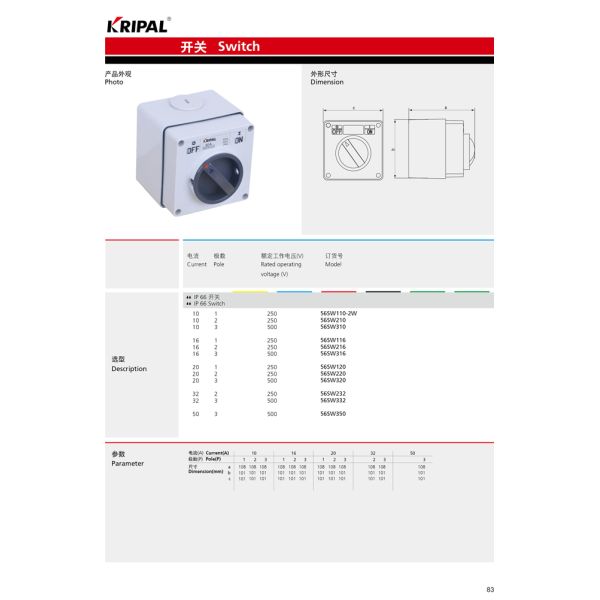

Model 56SW310 56SW320 56SW332 56SW350 56SW350/2 56SW363/2
Rated operationalUe(-50Hz) V 500 500 500 500 500 500
Rated OperationalUi(-50Hz) V 660 660 660 660 660 660
ated lmpulse Withstand Uimp kV 2.5 2.5 2.5 4.0 4.0 4.0
Rated Thermal Current Enclose A 10 20 32 50 50 63
Poles 3 pole 3 pole 3 pole 3 pole 3 pole 3 pole

Range:


56SW110, 56SW116, 56SW120, 56SW132, 56SW210, 56SW216, 56SW220, 56S232, 56SW250, 56SW310, 56SW320, 56SW332, 56SW350, 56SW363, 56SW350/2, 56SW363/2

Application:

1, 56SW series industrial waterproof Switch is used to isolate to ensure the safety of maintenance work.

2, The industrial switch has perfect protection to your safe for using of electricity in the rain, dust, freezing, high temperature, strong ultraviolet radiation and other harsh outdoor environments demand.


3, It is suitable for any outdoor application conditions


4, It can be panel mounting on surface.
