Safety Phase Failure Protection Industrial Relays , Easy Operation
Safety Phase Failure Protection Industrial Relays , Easy Operation
Safety Phase Failure Protection Industrial Relays , Easy Operation
Safety Phase Failure Protection Industrial Relays , Easy Operation
Specifications
Brand Name :
KRIPAL
Model Number :
UKk-22
Certification :
CE, UL
Place of Origin :
China
MOQ :
500 pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Customized :
color
pins :
3
type :
thermal
protection :
overload
Usage :
Usually with ac contactor
Reset :
manual / automatic
Description

Safety Phase Failure Protection Industrial Relays , Easy Operation

Thermal overload relays are protective devices. They are designed to cut power if the motor draws too much current for an extended period of time. To accomplish this, thermal overload relays contain a normally closed

(NC) relay. When excessive current flows through the motor circuit, the relay opens due to increased motor

temperature, relay temperature, or sensed overload current, depending on the relay type.

This product has innovative, elegant model and small installation area, functions such as temperature compensation, action indication, automatic and manual reset / stop with steady and reliable performance.

Thermal relay can be combined / connected with contactor or installed separately.

Standard: IEC 60947-1

Applications:

UKH series thermal overload relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V,

rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation& can be plunged in UKC1 series AC contactor.

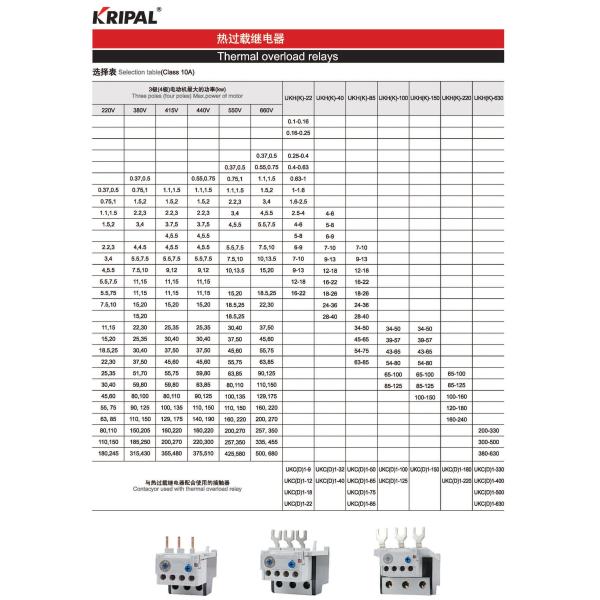

Specifications:

Ratings

Type

UKK-22

Nominal Current

Ranges

Min

Mid

Max

Rated current(A)

0.14

0.1

0.14

0.16

0.21

0.16

0.21

0.25

0.33

0.25

0.33

0.4

0.52

0.4

0.52

0.63

0.82

0.63

0.82

1

1.3

1

1.3

1.6

2.1

1.6

2.1

2.5

3.3

2.5

3.3

4

5

4

5

6

6.5

5

6.5

8

7.5

6

7.5

9

8.5

7

8.5

10

11

9

11

13

15

12

15

18

19

16

19

22

Features:

1. Direct mounting structure:

The thermal overload rela can be mounted directly to the Magnetic Contactors without

additonal brackets. (Applied model: UKH-22, 40, 85,100,150,220,630)

2. Safety cover

The finger proof safety cover prevent careless touch of electric conductor

3 . Separation of power part and operation part

The main circuit and the operation part are separately designed and the operation part is commonly used.

4 . Easy operation

Safety Phase Failure Protection Industrial Relays , Easy Operation
