Specifications
Brand Name :
KRIPAL
Model Number :
UKF2 series
Certification :
CE,Semko
Place of Origin :
China
MOQ :
500 pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Color :
RAL 7035
Enclosure :
brand-new PC
Plastic parts inside :
Nylon
Protection grade :
IP66
Amp :
20A, 35A, 63A
Available poles :
2pole, 3pole, 4pole
Description

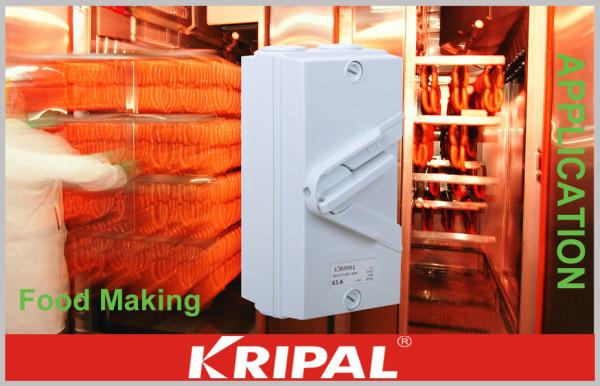

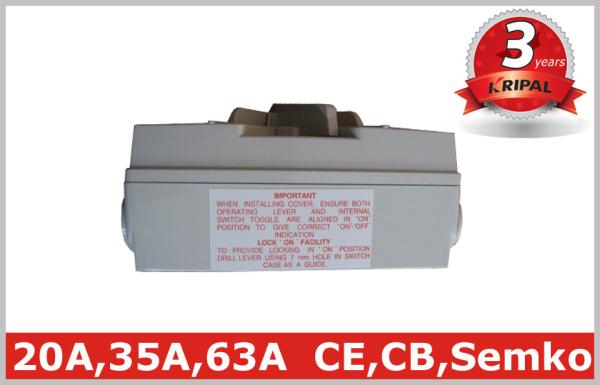

KRIPAL UKF2 series Four Pole Triple Pole Weatherproof Isolator Switch 20A 35A 63A Outdoor

KRIPAL IS THE REAL BUILDER “UKF”

Description:

UKF series IP66 weatherproof isolating switch is a robust range of switches suitable for virtually any external

application. Included in the range are single, double, triple pole and four pole switches current 20A,35A,45A,63A.The base mounted mechanism provides for easier termination and more wiring room.

Wiring:

1. Cables looped in and out from overhead.
2. In and out from underground
3. In and out straight through the switch.
4. Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.

Specifications:

Cat.No. Rating(Amps) Designation IP Rating
UKF2- 120 20A single pole IP66
UKF2- 132 32A
UKF2- 163 63A

Cat.No. Rating(Amps) Designation IP Rating
UKF2- 220 20A double pole IP66
UKF2- 232 32A
UKF2- 263 63A

Cat.No. Rating(Amps) Designation IP Rating
UKF2- 320 20A triple pole IP66
UKF2- 332 32A
UKF2- 363 63A

Cat.No. Rating(Amps) Designation IP Rating
UKF2- 420 20A four pole IP66
UKF2- 432 32A
UKF2- 463 63A

Dimension: 165mm*82mm*85mm

KRIPAL UKF2 series Four Pole Triple Pole Weatherproof Isolator Switch 20A 35A  63A Outdoor

Declare:

KRIPAL is the leading manufacturer for this series switch. As time going by, there are some companies that

copy our product & use our model number. Hereby, we claim that “UKF” is named by KRIPAL and KRIPAL is

the first one who use it as the code for isolating switches, “U” means “you” our valued clients, “K” is for

KRIPAL; “F” is abstracted from “weatherproof”. If you are looking for UKF weatherproof switches, please

contact us freely,
