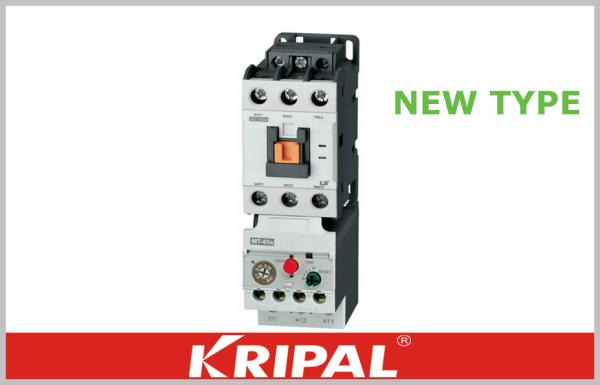

Electrical 600V AC Contactor Motor Protection / Mechanical Interlocking Contactor 1NO+1NC / 2NO+2NC
Electrical 600V AC Contactor Motor Protection / Mechanical Interlocking Contactor 1NO+1NC / 2NO+2NC
Electrical 600V AC Contactor Motor Protection / Mechanical Interlocking Contactor 1NO+1NC / 2NO+2NC
Electrical 600V AC Contactor Motor Protection / Mechanical Interlocking Contactor 1NO+1NC / 2NO+2NC
Electrical 600V AC Contactor Motor Protection / Mechanical Interlocking Contactor 1NO+1NC / 2NO+2NC
Electrical 600V AC Contactor Motor Protection / Mechanical Interlocking Contactor 1NO+1NC / 2NO+2NC
Electrical 600V AC Contactor Motor Protection / Mechanical Interlocking Contactor 1NO+1NC / 2NO+2NC
Electrical 600V AC Contactor Motor Protection / Mechanical Interlocking Contactor 1NO+1NC / 2NO+2NC
Specifications
Brand Name :
KRIPAL
Model Number :
MC series
Certification :
CE
Place of Origin :
China
MOQ :
500pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Brand :
KRIPAL
Current Range :
9A,.18A,22A,32A,40A,65A,75A,85A
Poles :
3P
Auxiliary :
1NO+1NC / 2NO+2NC
Contacts :
silver
Coil :
AC
Description

Electrical 600V AC Contactor Motor Protection / Mechanical Interlocking Contactor 1NO+1NC / 2NO+2NC

Description:

MC(LS) series AC contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 9A to 85A, making and breaking and frequent starting, controls the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, drat-delta starter, with the thermal relay, it is combined into the electro magnetic starter. This product conforms to the requirement of IEC 60947 4 -1 & GB14048.4 standards .

Characteristics

5 Frame Sizes
1/2HP up to 75HP 480V AC
Screw Terminals (Lug Terminals Available)
Direct Mounting Overload Relays
Optional accessories
Additional Auxiliary contacts
Replacement Coils
Reversing Wiring Sets and Interlocks
Coil surge Suppressors

Specifications:

Maximum Voltage 600V AC
Rated Frequency 50/60Hz
Operating Temperature -5°C (23°F) to +50°C (104°F)
Degree of protection IP20
Resistance to Vibration (5-300Hz) > 15g

Technical data:

Type

MC
-9

MC
-12

MC
-18

MC
-22

MC
-32

MC
-40

MC
-50

MC
-65

MC
-75

MC
-85

AC3 duty

9A

12A

18A

22A

32A

40A

50A

65A

75A

85A

AC1 duty

20A

20A

25A

32A

50A

60A

80A

100A

110A

135A

AC3 duty

200~
240V

2.5kW
11A

3.5kW
13A

4.5kW
18A

5.5kW
22A

7.5kW
32A

11kW
40A

15kW
55A

18.5kW
65A

22kW
75A

25kW
85A

380~
440V

4kW
9A

5.5kW
12A

7.5kW
18A

11kW
22A

15kW
32A

18.5kW
40A

22kW
50A

30kW
65A

37kW
75A

45kW
85A

500~
550V

4kW
7A

7.5kW
12A

7.5kW
13A

15kW
22A

18.5kW
28A

22kW
32A

30kW
43A

37kW
60A

45kW
64A

45kW
75A

690V

4kW
5A

7.5kW
9A

7.5kW
9A

15kW
18A

18.5kW
21A

22kW
25A

30kW
33A

37kW
47A

45kW
47A

45kW
52A

thermal current(Ith)

20A

25A

30A

32A

45A

50A

70A

80A

90A

100A

AC
motor

Single
phase

115V

0.5HP

0.5HP

1HP

2HP

2HP

3HP

3HP

5HP

5HP

7.5HP

230V

1HP

2HP

3HP

3HP

5HP

5HP

7.5HP

10HP

15HP

15HP

Three
phase

200V

2HP

3HP

5HP

7HP

7.5HP

10HP

10HP

15HP

20HP

25HP

230V

3HP

3HP

5HP

7.5HP

10HP

10HP

15HP

20HP

25HP

30HP

460V

2HP

7.5HP

10HP

10HP

20HP

25HP

30HP

40HP

50HP

50HP

575V

5HP

10HP

15HP

15HP

20HP

25HP

30HP

40HP

50HP

50HP
