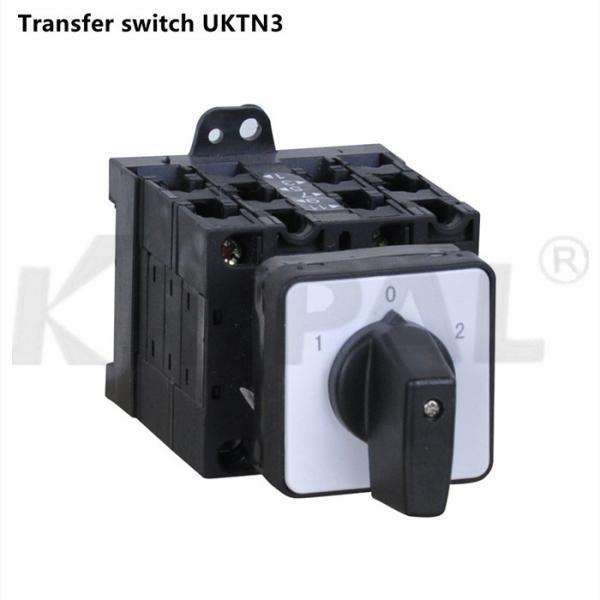

RoHS Standard IP65 25A 4P 3 Position Waterproof Rotary Switch

Product Description

UKT Series Universal changeover switch mainly used for AC 50Hz, rated voltage up to 440V and below, DC voltage up to 220V, rated current to 100A electrical circuit for manually infrequent making or breaking the circuit for the purposes of control and conversion ,can also controlling three-phase asynchronous motors and circuit directly as the purposes of master control and measurement. The products widely used, can be used as the circuit control switch, measuring equipment switches, motor control switches and the master control switch, and welding machine switch and so on.

Compliance with standards:

The changeover switch use to the main circuit switching and direct control comply with IEC/EN60947

The changeover switch use to master control comply with IEC/EN60947

Proper installation ways

①Surface installation(insulation enclosure assembled)

②Parallel and level installation(fix in front of it)

③Rear installation(fix at the back of it,door linkage or cover linkage)

Product Feature

1.Possibility of multi-combination and safety of touch

The wheel switch ukt provides 800 standard contact combinations, the number of which is almost unlimited. Moreover, in the switch design process, safety and reliability are put in the first place. For example, vde0106 is installed on the outer cover of the terminal block to ensure the safety of touch.

2.Complete variety:According to the classification of power capacity, it can provide the most economical solution for different projects. In addition, it also has a variety of nameplates with different installation methods, which can flexibly meet the needs of specific applications.

3.Flexible switch functions

On/off switch: can be reliably used in lighting equipment heating equipment and motor, can also be directly on/off motor (AC-3), its high on/off ability to ensure frequent on and off the reliability of the work.

Control switch: Used to control the current loop. It simplifies the process of sending instructions from a central control position. For example, starting a specified process from a central control room saves time and makes the production process clear.

Operating application

①Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.

②Ammeter or voltmeter switching among three-phase circuits.

③Power supply switching or load switching.

④Starting of AC motor(for single-phase power supply with capacitor)

⑤Control of stepping,suitable for any loads,with or without “O”position.

⑥Motor(multi-tap winding)rev switching,speed of rotation for2,3 or 4 steps,commutation or no commutation.

⑦Manual/auto selection.

Packaging & Delivery

FAQ

Q:How many employees do you have?

A:We have more than 500 employees now,with in-house R&D teem.

Q: Could you do the OEM/ODM?

A: Yes, we can do the OEM/ODM for the customer.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q:Can you produce according to the samples?

A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q: How do you make our business long-term and good relationship?

A: 1.We keep good quality and competitive price to ensure our customers benefit;

2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Our company

Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
