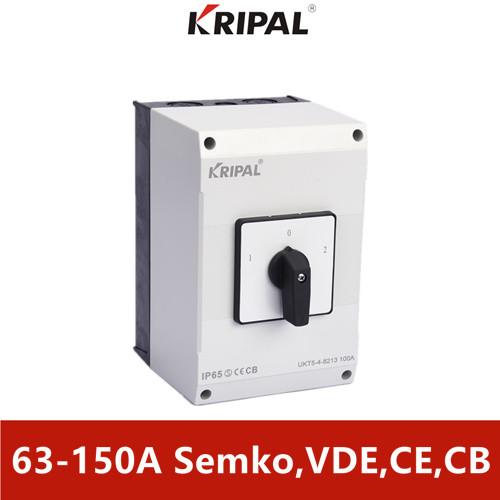

PA PC Copper Waterproof Changeover Switch IP65 3 Phase 230-440V
PA PC Copper Waterproof Changeover Switch IP65 3 Phase 230-440V
PA PC Copper Waterproof Changeover Switch IP65 3 Phase 230-440V
PA PC Copper Waterproof Changeover Switch IP65 3 Phase 230-440V
PA PC Copper Waterproof Changeover Switch IP65 3 Phase 230-440V
PA PC Copper Waterproof Changeover Switch IP65 3 Phase 230-440V
PA PC Copper Waterproof Changeover Switch IP65 3 Phase 230-440V
PA PC Copper Waterproof Changeover Switch IP65 3 Phase 230-440V
Specifications
Brand Name :
KRIPAL
Model Number :
UKT5 series
Certification :
VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
Place of Origin :
China
MOQ :
1000 pcs
Price :
negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
100000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Number of poles :
1P,2P,3P,4P
Rated current :
63A,80A,100A
Voltage :
230-440V
Material :
PA,PC,Copper
Frequency :
50/60Hz
Advantage :
Waterproof,Safety,Reliable
Description

IEC Standard Waterproof Changeover Switch IP65 3 Phase 230-440V

Product Description

Brand Name KRIPAL
Model Number UKT0/3/5
Type Cam switch
Number of poles 1P,2P,3P,4P
Current 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A
Frequency 50/60Hz
Protection IP65
Material PA,PC,Copper
Standard IEC/EN 60947-3
Identification VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
Warranty One and a half years
Advantage special cam switch with excellent performance and easy configuration is safe and reliable to save installation time and cost.

Operating application

① Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.

② Motor(multi-tap winding)rev switching,speed of rotation for2,3 or 4 steps,commutation or no commutation.

③ Power supply switching or load switching.

④ Starting of AC motor(for single-phase power supply with capacitor)

⑤ Control of stepping,suitable for any loads,with or without “O”position.

⑥ Ammeter or voltmeter switching among three-phase circuits.

⑦ Manual/auto selection.

Proper installation ways

① Parallel and level installation(fix in front of it)

② Rear installation(fix at the back of it,door linkage or cover linkage)

③ Surface installation(insulation enclosure assembled)

④ Parallel and level installation for distribution cabinet(clamping on the guide rail)

Product Feature

1.Possibility of multi-combination and safety of touch

The cam switch ukt provides 800 standard contact combinations, and the number of their combinations is almost unlimited. Moreover, in the design process of the switch, safety and reliability are put in the first place. For example, it is equipped with a terminal cover conforming to vde0106 to ensure the safety of touch.

2.The full range: According to the classification power capacity, can provide the most economical solution for different projects; nameplate There are many different methods of installation, flexibility to meet the needs of specific applications.

3. Flexible switching function Switch: the lighting device can be reliably used, the heating device and the motor, the motor can be switched directly (AC-3), strong switching capability, ensures reliability during off frequently.

Control switch:For controlling the current loop,it simplifies sending instructions from a central control position.For example,starting a specified process from a central control room saves time and makes the production process clear.

Application

The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switches are suitable for AC as well as DC application used for virtually all purposes. Such as motor control, panel meter switching, control and distribution panel, etc.

Packaging & Delivery

Lead Time Normally 20 days after received your fund, but mostly depends on your quantity
Leading Port Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly.
Trade Term EXW, FOB, CIF as customer need
Payment Term T/T 30% as deposit,and 70% before delivery.
Packaging Neutral carton, or according to customer requirements
Shipping By Air, by sea, by express

FAQ

Q:Are you factory?

A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two hours to Hangzhou by train, and one hour to Shanghai by air .Also very near to Wenzhou international Airport and Yueqing train station.

Q:How many employees do you have?

A:We have more than 500 employees now,with in-house R&D teem.

Q:What is your terms of packing?

A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.

Q: What is your sample policy?

A: Sample is available ,but sample should be paied in advance. The cost of sample will be refund after further order.

Q:Do you offer OEM service?

A:Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.

Our company

Zhejiang KRIPAL Electric Co., Ltd. was established in 1992. It is a national high-tech enterprise integrating R&D, production and sales of waterproof electrical, low-voltage electrical and new energy electrical products.

The company has a perfect sales service network, and its products are exported to Europe, Australia, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan. Kripal was awarded the title of "export famous brand".

Kripal's existing plant covers an area of 15,000 square meters and has more than 500 employees, including more than 10 senior engineers, more than 30 professional and technical personnel, and more than 30 senior management personnel. Products have passed CE, CB, UL, VDE, TUV, KEMA, SAA and other certifications.

The company adheres to the enterprise policy of "scientific management, independent innovation, collaborative cooperation and brand first", abides by the commitment of "World Ethics", and practices "win-win cooperation with customers, common prosperity with employees and creating benefits for the company". Strive to realize the dream of professional electrical world brand.
