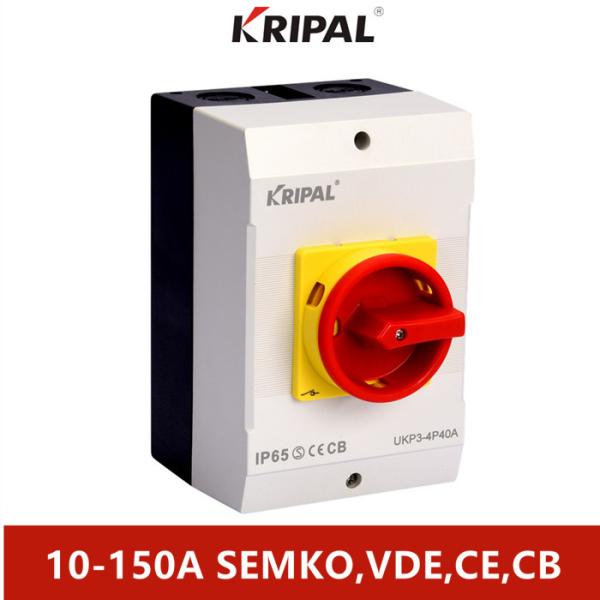

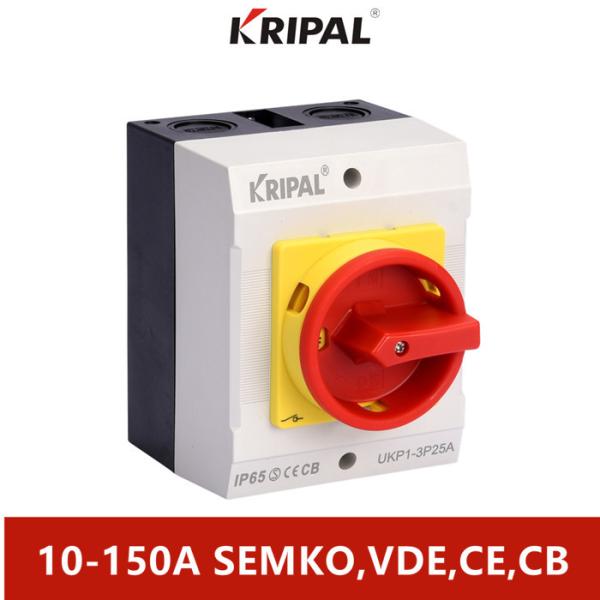

CE certificate 3P 4P 10-150A IP65 Explosion-proof isolator switch

Product Description

1.Rated insulation voltage 230V-440V, current 10A~150A,commonly used in single-phase or three-phase AC system;

2.IP65 box body design, with the import of the sealing strip of the safety seal and dust,waterproof, anti ultraviolet materials;

3.Switch rotating operator (knob) with three lock position, reliable to prevent misuse;

4.Suitable for different cable connectors: M25, M20, M16 and M12, optional waterproof cable connectors;

5.Large wiring operation space, the product is fixed on the box body, the connection is still convenient;

6.Adequate internal space, good heat dissipation effect;

7.Large contrast color design, easy to distinguish;

8.Protection degree: IP65.

Reference Model

Maintenance swich

The load isolation switch UKP can be used as an overhaul switch or a master switch with a shell to connect various electrical loads. The opening position can be equipped with multiple padlocks. To ensure personal safety, the opening position should be clear and cannot be automatically reset.

The safety switch complies with IEC 60947-3 and GB14048.3 standards

Product Feature

1.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;there are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.

2.Safe and Reliable: the terminals equipped with protective cover conform to VDE0106,to ensure the safety of finger touch

3.It has a variety of uses in industrial machinery and equipment.For example,when used as maintenance switch and insurance switch,3 padlocks can be installed in O part to ensure the personal safety of users.

4.It can be used reliably in lighting equipment,heating equipment and motors reliably,in addition,they also can switch the motor(AC-3) derectly,its high on-off ability can ensure the work reliability at frequently making and breaking.

5.Beautiful appearance,novel,simple,small size and function are the ideal choice among similar products.
