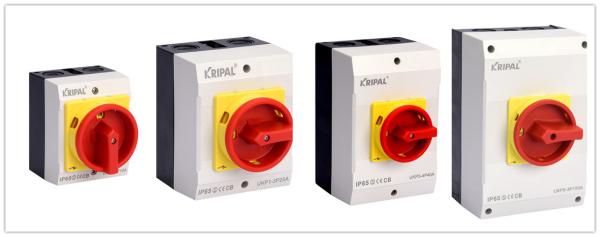

3 Pole 100A 440V IP65 Waterproof Load Isolating Switch Easy Setup
3 Pole 100A 440V IP65 Waterproof Load Isolating Switch Easy Setup
3 Pole 100A 440V IP65 Waterproof Load Isolating Switch Easy Setup
3 Pole 100A 440V IP65 Waterproof Load Isolating Switch Easy Setup
3 Pole 100A 440V IP65 Waterproof Load Isolating Switch Easy Setup
3 Pole 100A 440V IP65 Waterproof Load Isolating Switch Easy Setup
Specifications
Brand Name :
KRIPAL
Model Number :
UKP series
Certification :
VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
Place of Origin :
China
MOQ :
1000 pcs
Price :
negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
100000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Rated current :
10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A
Material :
PC、Copper
Protection degree :
IP65
Pole :
3P,4P
Frequency :
50/60Hz
Feature :
Dustproof,Waterproof,Safety
Description

3 Pole 100A IP65 Waterproof Load Isolating Switch easy setup

Product Description

Brand Name KRIPAL
Model Number UKPN0/1/3/5
Type Load Isolation Switch
Number of poles 3P,4P
Current 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A
Frequency 50/60Hz
Protection IP65
Material PC,Copper
Standard IEC/EN 60947-3, AS/NZS 3947
Identification VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
Warranty One and a half years
Advantage Dustproof,Waterproof,Corrosion protection,Prevent the loss caused by long-term illumination,Safety,Low-energy,Easy setup

3 Pole 100A 440V IP65 Waterproof Load Isolating Switch Easy Setup

3 Pole 100A 440V IP65 Waterproof Load Isolating Switch Easy Setup

Proper installation ways

① Surface installation(insulation enclosure assembled)

② Parallel and level installation(fix in front of it)

③ Rear installation(fix at the back of it,door linkage or cover linkage)

④ Parallel and level installation for distribution cabinet(clamping on the guide rail)

Product Feature

1.Wide range of function for switching, it has 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A.
2.Capability for switching of resistive, or inductive, or mixed loads.
3.The most economical way for switching electrical loads.
4.Made of the best materials with high mechanical, electrical and thermal resistance.
5.Double-break bimetallic contacts made of silver alloy and Copper.
6.10A-100A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).

Application

Main switch are ON--OFF switches to isolated the power to a particular area of operation.According to ICE/EN6024 or VDE0113,all electrical equipments of industrial machines must be equipped with a main switch.This must permit disconnection of all the elecrical equipment during cleaning,maintenance and repair work,and other extended periods when is stationary.Main switch can be used for switching and controlling main circuits,motor ON-OFF and other special application circuits,such as illumination equipments,heating equipments and motors,Their high on-off ability ensure the work reliability of frequently making and breaking.

Packaging & Delivery

Lead Time Normally 20 days after received your fund, but mostly depends on your quantity
Leading Port Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly.
Trade Term EXW, FOB, CIF as customer need
Payment Term T/T 30% as deposit,and 70% before delivery.
Packaging Neutral carton, or according to customer requirements
Shipping By Air, by sea, by express

Our service

1. Your inquiry and problems related to our products or prices will be replied in 24 hours;

2. Well-trained and experienced staffs to answer all your inquires;

3. Strong production capacity and strict quality control system;

4. After-sale tracking service for all of our clients;

5. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.

Our company


Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".

Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.

The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.

Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
