Vertical Type Thermal Shock Chamber Two Zone Basket Transition AC220V 50HZ
Vertical Type Thermal Shock Chamber Two Zone Basket Transition AC220V 50HZ
Specifications
Brand Name :
MENTEK or OEM
Model Number :
MTS2-150
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30 sets per month
Delivery Time :
25-35 working days after order confirmed
Packaging Details :
First protected by resin fiber and PP film, then put into Strong wooden case
Temperature Range :
-70°C~150°C or tailor-made
Test Space :
25 to 1000Litres
Electronic :
AC220V·50HZ/380V·50HZ
Meet Test Standard :
IEC, ASTM, MIL, ISO etc
Interior material :
SUS 304
Refrigeration :
Unit cooling mode / Dual cooling method (air-cooled)as per size of chamber and specific low temperature
Temp Conversion Time :
≤10 Seconds
Temp Recovery Time :
≤5 Min
Description

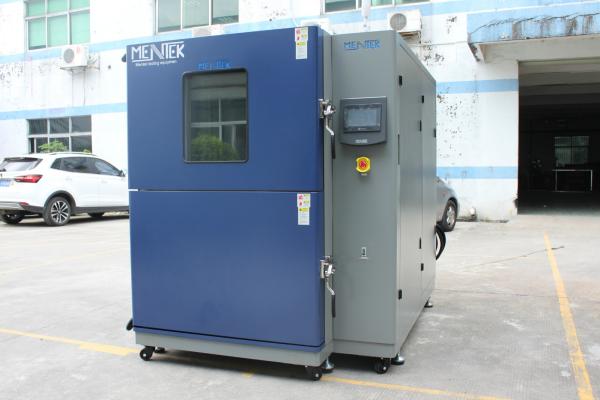

Vertical Type Two Zone Basket Transition Thermal Shock Chamber

Vertical Type Two Zone Basket Transition Thermal Shock Chamber is very effective in subjecting products to a thermal shock test by a specimen basket traveling and socking automatically between two pre-heated or pre-coolled working zones. Thermal shock chamber come in a variety of performance configurations to meet specific and critical testing needs compared with Three Zone Series.

Vertical Type Thermal Shock Chamber Two Zone Basket Transition AC220V 50HZ

Application

  • Electronic parts
  • Home appliance
  • Auto parts
  • Aviation parts
  • LED lights
  • Plastics
  • Metals

Technical Sheet For Three Zone Thermal Shock Chamber

Model MTS2-50 MTS2-100 MTS2-150 MTS2-200 MTS2-300
Interior Volume 50L 100L 150L 200L 300L
Interior Dimension(cm) 35*40H*35 50*40H*50 60*50H*50 65*50H*60 90*50H*67
Temp Change Rate(with load) 5℃ ～20℃/m(Standard); 30/℃/m( Liquid Netrogen)
Hot/Low Temp Range(Testing Zone) +60℃～+150℃ 　 -10℃～-65℃
Hot/ Low Temp Range(Preheat-precool Zone) +60℃～+200℃ (Pre heating zone) 0℃～-78℃ (Pre cooling zone)
Preheating Time(m) RT to 150℃ RT to 150℃ RT to 150℃ RT to 150℃ RT to 150℃
30 30 30 30 30
Precooling Time(m) -50℃ -65℃ -50℃ -65℃ -50℃ -65℃ -50℃ -65℃ -50℃ -65℃
90 90 90 90 90
Power (KW) 36,40 40,47 47,51 47,51 51,55
Temp Fluctuation ±0.5℃
Temp Conversion Time 　 　 ≤10 seconds 　 　
Temp Recovery Time 　 　 ≤5min 　 　
Temp & Humidity Deviation ±1℃～±2℃ ±3％RH(＞75％RH);±5％RH(≤75％RH) (optional)
Standard configurations 1 Window, 1 Cable port, 1 Lamp, 4 Casters, 1 Power cable, 2 Stainless steel shelves
Standard Documentations quality certification,test report ,user operaion manual for machine & controller
Safety devices Electric leakage, fan overheat ,anti-dry ,compressor overheat & overpressure,power supply undercurrent,overheat, overcurrent, phase sequence, over-temperature protection devices


Why Select MENTEK?

1) Professionalism: China Leading brand climatic chamber manufacturer with over 20 years focus on environmental test chambers Industry since 1999. MENTEK Testing Equipment Co.,Ltd is a leading climatic chamber manufacturer in China, specializing in manufacturing various environmental chambers with superior quality and customer service.

We have professional factory management and development team. The yearly turnout are 1,500 units.

We are customer-tailored solution expert in environmental chamber, provide excellent test chambers & make expert solutions for customers.

We provide private custom service for each customer, and create their own brand environment test chambers.


2) Top Quality : We have professional QC team for the quality control, we test each function of the test chamber carefully one by one before delivery. All of the products from Mentek are brand new with top quality, we do not provide products with used , refurbish or counterfeits.

3) Warranty: All of the products from MENTEK comes with 12 Month warranty.

4) Competitive Prices: Mentek offers you competitive and reasonable market price.

5) Excellent Service: We offer complete engineering and technical support, prompt emergency service, remote installation, remote maintenance services and more. We are equipped with over 20 technical and support you anywhere in time .

6) Highly flexible for customization: The biggest advantage with MTENK climatic chambers is that they are highly flexible for customization.

Every test follows a set of procedures as per the defined test standards (ASTM, IEC, MIL, etc.) and sometimes a standard climatic chamber might not be sufficient to conduct a particular test. Our engineers understand this need of the industry well and offer the highest level of customisation like design modification or integration with other applications such as Climatic Chamber with alititude integration, Climatic Chamber with Vibration Integration(AGREE Chamber), etc.

We Supply you

  • Climatic Chamber
  • Environmental Chamber
  • Temperature Chamber
  • Humidity Chamber
  • Walk-in Chamber
  • Thermal Shock Chamber
  • Thermal Cycling Chamber
  • Lab Oven
  • Vacuum Chamber
  • Vibration Shaker
  • Altitude Chamber
  • Salt Spray Tester
  • Tensile Test Machine
  • Custom-designed Test Chamber

Looking for distributors worldwild.

We have been looking for qualified overseas distributors or dealers to join our business together, and sincerely invite you to visit our company and factory in Dongguan, China. If you are interested in business for environmental chambers and have ability to install, repair test chambers with your professional technician support, please do not hesitate to contact us and join our sales team to establish friendly business relationship based on mutual benefits.
