Automotive Walk In Environmental Chamber 1500KG Steel Heat Load and 3000W Light
Automotive Walk In Environmental Chamber 1500KG Steel Heat Load and 3000W Light
Specifications
Brand Name :
MENTEK
Model Number :
MHPW-2
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30 sets per month
Delivery Time :
25-35 working days after order confirmed
Packaging Details :
First protected by resin fiber and PP film, then put into Strong wooden case
Temperature Range :
-60℃,-40℃,-20℃,0℃～+85℃
Change rate :
1-20°C/min Linear speed or average speed
Electronic :
AC220V·50HZ/380V·50HZ
Meet Test Standard :
IEC, ASTM, MIL, ISO etc
Interior material :
SUS 304
Refrigeration :
Dual cooling method (air/water-cooled)as per size of chamber and specific low temperature
Product name :
Walk-ins
Usage :
environmental testing
Description

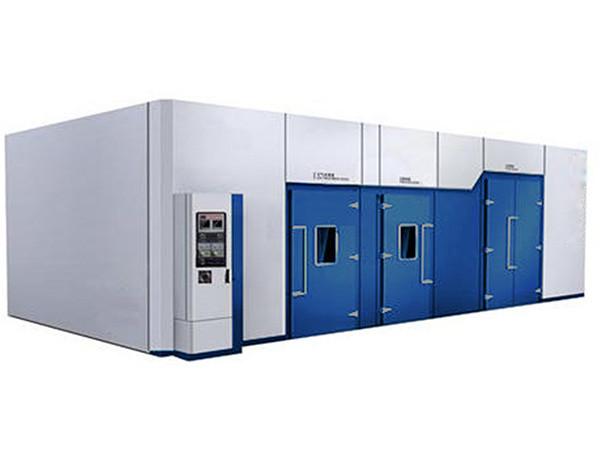

Automotive Environmental Walk-in Chamber With 1500KG Steel Heat Load and 3000W Light

This mentioned Environmental Walk-in Chamber is custom made for our Shanghai Automotive Company. Temperature ranges from -60° C to +100° C and relative humidity ranges between 20% and 95% are available. Cooling rate 1° C/min with heat load 1500KG steel and 3000W light.

Automotive Walk In Environmental Chamber 1500KG Steel Heat Load and 3000W Light

Application

  • Auto parts
  • Aviation parts
  • Electronic parts
  • Home appliance

Technical Sheet

Model MHPW-6 MHPW-8 MHPW-12 MHPW-16 MHPW-24
Interior Volume 6m³ 8m³ 12m³ 16m³ 24m³
Interior Dimension(cm) 200*200H*150 200*200H*200 300*200H*200 400*200H*200 400*200H*300
Exterior Dimension(cm) 340*225H*200 340*225H*220 440*225H*220 540*225H*220 540*225H*320
Temp & Humidity Range -60℃,-40℃,-20℃,0℃～+85℃ 25％～95％RH(Optional)
Temp & Humidity Fluctuation ±0.5℃ 　 ±2.5％RH
Temp & Humidity Deviation ±2℃ ±3％RH(＞75％RH); ±5％RH(≤75％RH)
Temp Change Rate 2℃～2.5℃/m heat-up 　 1℃/m cool-down
Standard configurations 1 Window, 1 Cable port, 1 Lamp, 4 Casters, 1 Power cable, 2 Stainless steel shelves
Standard Documentations quality certification,test report ,user operaion manual for machine & controller
Safety devices Electric leakage, fan overheat ,anti-dry ,compressor overheat & overpressure,power supply undercurrent,overheat, overcurrent, phase sequence, over-temperature protection devices

Why Select MENTEK?

​

  • Highly flexible for customization: The biggest advantage with MTENK climatic chambers is that they are highly flexible for customization. Every test follows a set of procedures as per the defined test standards (ASTM, IEC, MIL, etc.) and sometimes a standard climatic chamber might not be sufficient to conduct a particular test. Our engineers understand this need of the industry well and offer the highest level of customisation like design modification or integration with other applications such as Climatic Chamber with alititude integration, Climatic Chamber with Vibration Integration(AGREE Chamber), etc.

Automotive Walk In Environmental Chamber 1500KG Steel Heat Load and 3000W Light
Automotive Walk In Environmental Chamber 1500KG Steel Heat Load and 3000W Light

We Supply you

  • Climatic Chamber
  • Environmental Chamber
  • Temperature Chamber
  • Humidity Chamber
  • Walk-in Chamber
  • Thermal Shock Chamber
  • Thermal Cycling Chamber
  • Lab Oven
  • Vacuum Chamber
  • Vibration Shaker
  • Altitude Chamber
  • Salt Spray Tester
  • Tensile Test Machine
  • Custom-designed Test Chamber

Looking for distributors worldwild.


We have been looking for qualified overseas distributors or dealers to join our business together, and sincerely invite you to visit our company and factory in Dongguan, China. If you are interested in business for environmental chambers and have ability to install, repair test chambers with your professional technician support, please do not hesitate to contact us and join our sales team to establish friendly business relationship based on mutual benefits.
