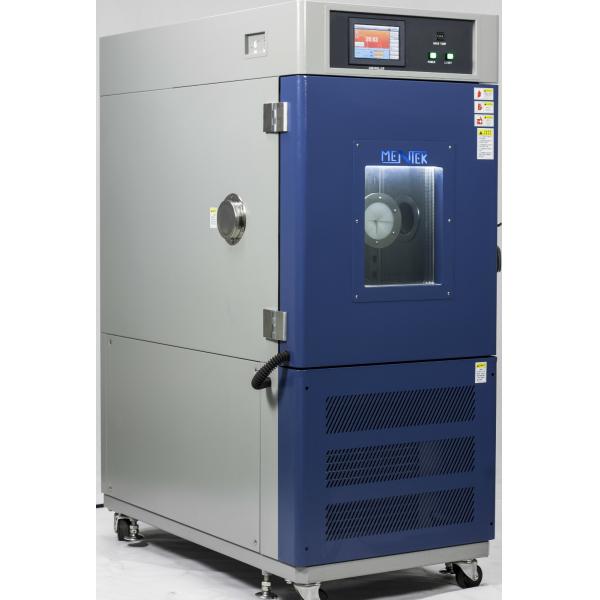

Low Temperature Test Chamber R404A R23 Refrigerant Two Cascade Compressor Cooling
Low Temperature Test Chamber R404A R23 Refrigerant Two Cascade Compressor Cooling
Specifications
Brand Name :
MENTEK
Model Number :
MDP-150-70
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30 sets per month
Delivery Time :
25-35 working days after order confirmed
Packaging Details :
First protected by resin fiber and PP film, then put into Strong wooden case
Temperature Range :
-70°C~150°C or tailor-made
Test Space :
15 to 1500Litres
Ramp rate :
2℃～3℃/m heating-up,1℃/m cooling-down
Electronic :
AC220V·50HZ/380V·50HZ
Meet Test Standard :
IEC, ASTM, MIL, ISO etc
Interior material :
SUS 304
Refrigeration :
Unit cooling mode / Dual cooling method (air-cooled)as per size of chamber and specific low temperature
Product Name :
Climatic Chamber
Description

R404A and R23 Environment Friendly Refrigerant Two Cascade Compressor Cooling Low Temperature Test Chamber

For mechnical cooling design, the lowest temperature for single compressor is aournd -40℃, when it comes to extremely low temperature such as -55℃, -60℃,-70℃ ultra low temperature test chamber, fast temperature change rate chambers (15℃/min). Mentek will use Cascade Compressor Coolign System,Environment Friendly Refrigerant R404A for the First Stage and R23 for the Second Stage. Low temperature available: A: -20℃, B: -40℃, C: -70℃ , D: -86℃.E:-180℃( liquid nitrogen refrigeration or Cascade Compressor Coolign System ).

Low Temperature Test Chamber R404A R23 Refrigerant Two Cascade Compressor Cooling

Low Temperature Test Chamber R404A R23 Refrigerant Two Cascade Compressor Cooling

Technical Specification

Model MDP-150 MDP-225 MDP-408 MDP-800 MDP-1000
Interior Volume 150L 225L 408L 800L 1000L
Interior Dimension(cm) 50*60H*50 50*75H*60 60*85H*80 100*100H*80 100*100H*100
Exterior Dimension(cm) 70*150H*165 70*165H*170 80*175H*180 70*190H*185 70*190H*195
Net Weight 250kg 300kg 400kg 600kg 700kg
Temp & Humidity Range -70℃,-60℃,-40℃,-20℃,0℃～+150℃ 10％～98％RH(Optional)
Temp & Fluctuation ±0.3℃～±0.5℃ 　 ±2.5％RH(optional)
Temp & Humidity Deviation ±0.5℃～±2℃ ±3％RH(＞75％RH);±5％RH(≤75％RH) Optional
Temp Change Rate 2℃～3℃/m heat-up 　 1℃/m cool-down
Standard configurations 1 Window, 1 Cable port, 1 Lamp, 4 Casters, 1 Power cable, 2 Stainless steel shelves
Standard Documentations quality certification,test report ,user operaion manual for machine & controller
Safety devices Electric leakage, fan overheat ,anti-dry ,compressor overheat & overpressure,power supply undercurrent,overheat, overcurrent, phase sequence, over-temperature protection devices
