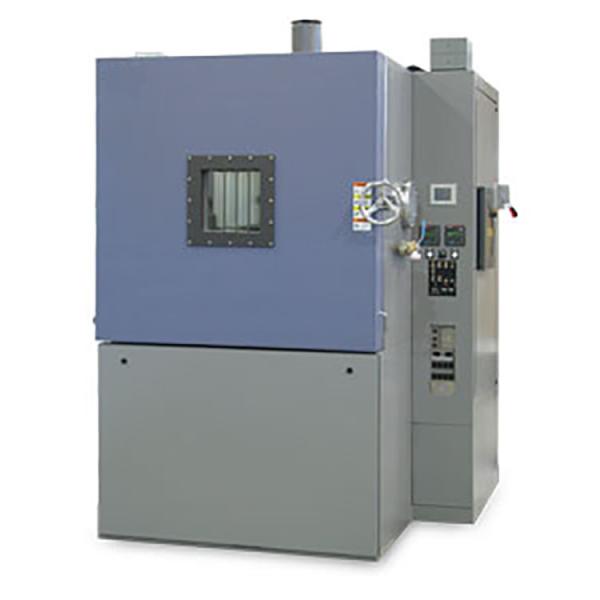

High Low Vacuum Pressure Testing Equipment , Pressure Testing Machine Laboratory
High Low Vacuum Pressure Testing Equipment , Pressure Testing Machine Laboratory
Specifications
Brand Name :
MENTEK or OEM
Model Number :
MZG-72
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30 sets per month
Delivery Time :
25-35 working days after order confirmed
Packaging Details :
First protected by resin fiber and PP film, then put into Strong wooden case
Temperature Range :
RT+10 °C to +250 °C
Capacities :
72 liters to 1000 liters.
Electronic :
AC220V·50HZ/380V·50HZ
Meet Test Standard :
IEC, ASTM, MIL, ISO etc
Interior material :
SUS 304
Product name :
Vacuum drying oven
Description

High Low Vacuum Pressure Testing Equipment For Laboratory Application

Mentek provides High Low Vacuum Pressure Testing Equipment with temperature range RT+20 °C ~ +250 °C, capacities ranging from 72 liters to 1000 liters.Vacuum Pressure Testing Equipment is ideally suitable for drying of material which is thermo-sensitive or decompounds and oxidative easily.Inside oven can be filled with inert gases to the inner chamber,which is especially for a rapid drying of some compound material.

Application

  • Electronic parts
  • Home appliance
  • Auto parts
  • Aviation parts

Technical Sheet

Model MZG-72 MZG-125 MZG-270 MHG-600 MHG-1000
Test Space 72L 125L 270L 600L 1000L
Interior Dimensions(cm) 45*40*40 50*50H*50 60*90H*50 100*100H*60 100*100H*100
Exterior Dimensions(cm) 65*115H*140 70*125H*160 800*165H*160 125*185H*175 125*180H*175
Power supply AC1∮220V60/50Hz AC3∮380V60/50Hz AC3∮380V60/50Hz AC3∮380V60/50Hz AC3∮380V60/50Hz
Temperature Range RT﹢20℃~250℃
Temperature Fluctutation ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃
Temperature Deviation ≤±2.5℃ ≤±2.5℃ ≤±2.5℃ ≤±2.5℃ ≤±2.5℃
Heat Up Time +25℃ ～ +200℃, 60min(With no load)
Overshoot ≤±3℃
Vocauum Range ≤300 Pa(Standard external pressures 101.3kPa)
Pumping Speed 101kPa～300Pa,30min(With no load)
