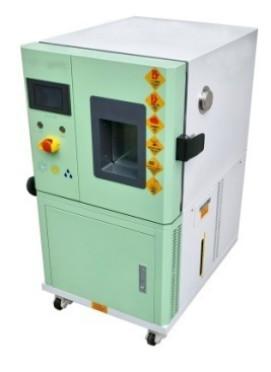

28L Economical Type Small Size Benchop Temperature Humidity Testing Chamber With Single Compressor
28L Economical Type Small Size Benchop Temperature Humidity Testing Chamber With Single Compressor
Specifications
Brand Name :
MENTEK
Model Number :
YC-22-TH
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
25-35 working days after order confirmed
Packaging Details :
First protected by resin fiber and PP film, then put into Strong wooden case
Chamber Size :
28L (W400×H350×D200)
Temperature Range :
-40℃～150℃
Humidity Range :
30%～95%RH
Heating Rate :
≧3℃/min(with noload)
Cooling Rate :
≧1℃/min (with noload)
Power supply :
1PH AC220V±10%, 50Hz,5KW
Description

28L Economical Type Small Size Benchop Temperature Humidity Testing Chamber With Single Compressor

1 Working Chamber size W400*H350*D200 mm


2 Device dimensions W560*H1050*D750 mm


3 Temperature range -40℃～+150℃


4 Humidity range 20%～98% RH


5 Control mode Microcomputer programmable PID automatic calculation microprocessor temperature controller (touch screen)


6 Temperature analysis accuracy 0.01℃


7 Humidity analysis accuracy 0.1%RH


8 Temperature uniformity ±2℃


9 Humidity deviation ±3%RH


10 Heating and cooling rate Heating≧3℃/min, cooling≧1℃/min


11 Temperature fluctuation ≤±0.5℃


12 Humidity fluctuation ±1.5%RH


13 Heating mode Resistance heater


14 Circulation mode Fan forced circulation mode


15 Equipment power supply: Total power 5KW Power supply AC220V±10%, 50Hz


16 Features: This machine adopts electronic expansion valve refrigeration technology, which can save power consumption by more than 30% compared with other machines in the same industry
