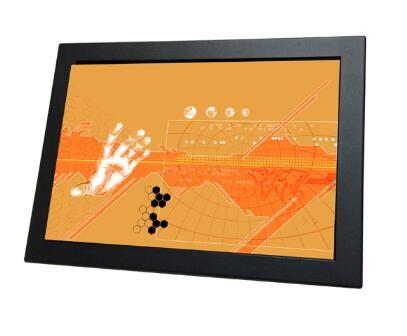

Wide Screen Capacitive Multi Touch Screen Computer PC 13'' With Passive Cooled Processor
Wide Screen Capacitive Multi Touch Screen Computer PC 13'' With Passive Cooled Processor
Wide Screen Capacitive Multi Touch Screen Computer PC 13'' With Passive Cooled Processor
Wide Screen Capacitive Multi Touch Screen Computer PC 13'' With Passive Cooled Processor
Specifications
Brand Name :
AXNEW
Model Number :
AXD-13OPPC-VA7
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
20 pcs
Price :
US$300-400/pcs
Supply Ability :
500pcs/month
Delivery Time :
10 working days
Packaging Details :
5 pcs/carton
Screen Size :
13.3''
CPU :
Intel Dual Core I3-3317U
RAM :
4G
SSD :
32G;64G;128G Options
Power input :
DC2.5 12V
Touch type :
capacitive flat multi-touch options
Description

13'' 16:9 Wide screen capacitive Multi touch Panel pc with passive cooled processor

Model Number AXD-13OPPC-VA7
13’’ rugged mount built panel pc
Case/Bezel Color black color
TFT Type Industrial LCD with LED backlight
Aspect ratio 16:9
Touch Panel Industrial PCAP /Resistive Flat Screen
Touch response time 8ms (typical)
Optimal (native) Resolution 1600x900
LCD panel Pixel pitch 0.1837 x 0.1837 mm
LCD panel Colors 16.7 million
LCD panel Brightness 300 cd/m2
LCD panel Response Time 25ms
Contrast Ratio 500:1
Viewing Angle ( Wide )
Horizontal (left/right) ±85° or 170° total
Vertical (up/down) 85°(up), 85°(down) or 170° total
CPU Intel® Processor I3 (1.8GHz)
storage 2G RAM;SSD 16G/32G Options
Serial Ports 2 x COM ;RS232/RS485
USB Ports 2x USB V2.0; 2xUSB V3.0
LAN 1 x LAN RJ-45 connector
DC Power In 1 x DC2.5 connector
Video Port 1X Line-out
Other Ports 1x LAN, 1X VGA ,1xHDMI,1X Audio
Internal Sockets & Connectors reserved for OEM project
Power Specification DC 12V
Working Environment
Temperature Operating: 0°C to 50°C ;Storage -20°C to 65°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Dimensions
Mounting Type Embedded Installation,wall mounting
Mechanical dimensions 339.0 x 225 x 47.0 mm
Weight (Net) 3.5 kgs/ piece, 1 piece/ carton
Drawings Please contact us for details

Packaging & Delivery

Packing details

1x 13 inch rugged mount Industrial Touch Panel PC ;

Packed in 5 piece/carton with protection foam

Optional accessories:1x Power supply cable, 1x power adapter
Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production

Features and Advantages

1.It's the latest evolution of Mini-ITX form factor industrial Motherboard with Dual GBE Lan.

2. It is based on Intel Celeron 3217U+HM76 chipset.Provide 2 Mini-PCIE and 1 Sim Slot to support Wifi/GPS/3G/MSATA.

3. 1 SODIMM slot,Supports up to 8GB, SATA (1 Sata 3.0, 2x Sata 2.0)and MSATA storage modes.

4. It supports 1080P HD and independent Dual view, 1 HDMI and 1 VGA . Dual Channel 24bit LVDS.
Motherboard Type

Wide Screen Capacitive Multi Touch Screen Computer PC 13'' With Passive Cooled Processor
