1000 Nits 1920x1080 Android Touch PC 21'' Multi Capacitive Touch For Semi Outdoor
1000 Nits 1920x1080 Android Touch PC 21'' Multi Capacitive Touch For Semi Outdoor
1000 Nits 1920x1080 Android Touch PC 21'' Multi Capacitive Touch For Semi Outdoor
1000 Nits 1920x1080 Android Touch PC 21'' Multi Capacitive Touch For Semi Outdoor
Specifications
Brand Name :
axnew
Model Number :
AXD-21OPN1P1-VHIP
Certification :
ROHS CE FCC
Place of Origin :
China
MOQ :
10 Units
Price :
US$300-450/Unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 units/month
Delivery Time :
7-12 working days
Packaging Details :
2 units/carton
Name :
21.5inch capacitive andriod touch panel pc
Screen :
1920x1080
Andriod board :
RK3288 Max frequency 1.8Ghz
Memory :
2G DDR3
Flash :
8G
Video Outputs :
AV; HDMI; RS232; USB
LAN :
RJ45
Wifi :
Optional
Ports :
USB;RS232 rs485 could be options
DC :
12V
Touch Type :
10 Point Multi-Capacitive touch
Touch surface :
Anti-glare /Anti-reflecitve treatment
Description

21'' 1000nits 1920x1080 Android Touch Panel PC with multi capacitive touch For Semi Outdoor

Panel PC information
Model Number AXD-21OPN1P1-VHIP
21.5’’ Andriod Capacitive Touch panel pc with 1000nits
Case/Bezel Color Black
TFT Type New A+ LCD with LED backlight
Aspect ratio 16:9
Useful Screen Area 476.64 (H)x268.11(V)
Touch Panel Capacitive Multi touch with EETI chipset (water-proof function)
Touch response time 10ms (typical)
Touch glass Treatment for Outdoor Anti-glare /anti-reflective treatment on surface
LCD panel Pixel pitch 0.297 x 0.297 mm
LCD panel Colors 16.7million
LCD panel Brightness 1000 cd/m2
LCD panel Response Time 8 ms
Contrast Ratio 1000:1
Viewing Angle ( Wide )
Horizontal (left/right) ±89° or 178° total
Vertical (up/down) 89°(up), 89°(down) or 178° total

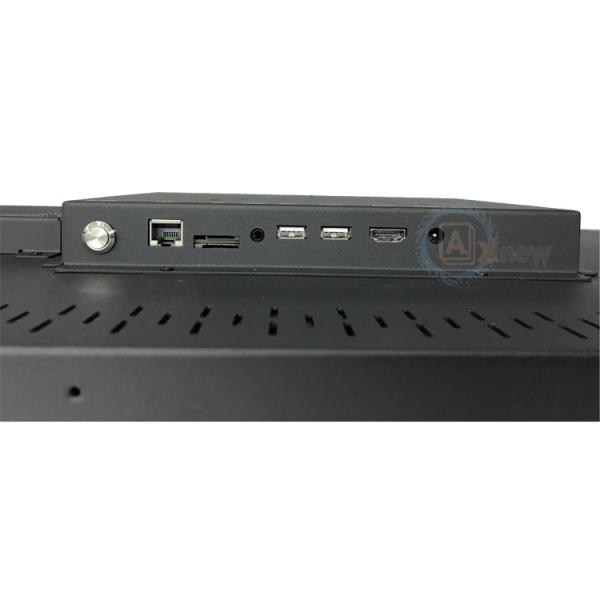

Output Interface VGA/HDMI type/ AV/Rs232 Options
Input Interface USB*3
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 44W max
ECM (Embed Computer Module)

RK3288 Max frequency 1.8Ghz;

MAIL-T764 GPU ; ARM Quad CORTEX-A17
DDR3: 2G; NAND :8G
Operation System:Android 5.1.1
Temperature Operating: -10°C to 50°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Weight (approx.) Actual: 7kg ;Shipping: 8kg
Dimensions
Holes fixings Vesa mounting 100x100
Drawings Please contact us for details
