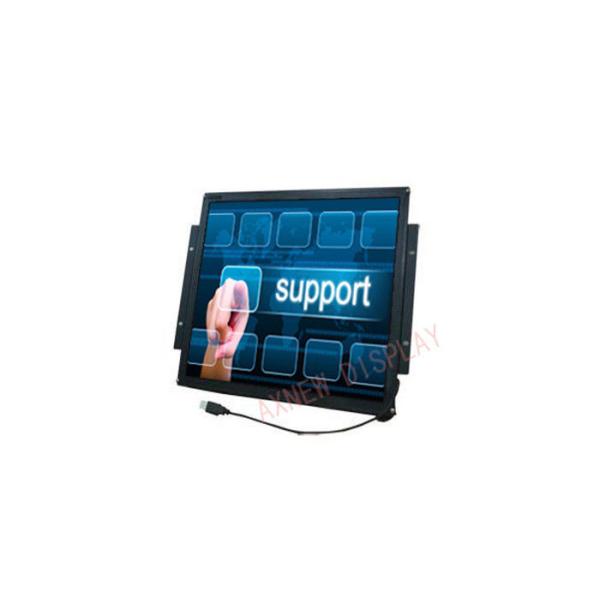

10 Inch 1024x768 Hd Industrial Touch Screen Monitor With Projected Capacitive Touch
10 Inch 1024x768 Hd Industrial Touch Screen Monitor With Projected Capacitive Touch
10 Inch 1024x768 Hd Industrial Touch Screen Monitor With Projected Capacitive Touch
10 Inch 1024x768 Hd Industrial Touch Screen Monitor With Projected Capacitive Touch
10 Inch 1024x768 Hd Industrial Touch Screen Monitor With Projected Capacitive Touch
10 Inch 1024x768 Hd Industrial Touch Screen Monitor With Projected Capacitive Touch
Specifications
Brand Name :
AXNEW
Model Number :
AXD-10OPN1P1-C1 (VGA)
Certification :
CE/ROHS/FCC/ISO
Place of Origin :
Shenzhen China
MOQ :
6 Pieces
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1000 pieces/month
Delivery Time :
10-15 working days
Packaging Details :
6 Pcs /Carton with firm foam
Screen Size :
10.4 inch
Viewing Angles :
160/140
Application :
industry/ Kiosks/ System
Feature :
high definition
Input signal :
VGA|DVI-D
Panel Type :
TFT led backlight based LCD
Resolution :
1024x768
Brightness :
350nits
Description



10 Inch 1024x768 Hd Industrial Touch Screen Monitor With Projected Capacitive Touch


1.10.4 INCH New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI-D interfaces

Display Specifications
Display10.4" Color TFT Projected capacitive touch screen monitor
Model NameAXD-10OPN1P1-C1
Active Display Area (mm)211.2 (H) x 158.4 (V)
Pixel Pitch (mm)0.264 (H) x 0.264 (V)
Resolution (Pixel)1024x768
Brightness (CD/m^2)350cd/m^2
Contrast Ratio600:1
Viewing Angle (CR >=10)140/140
Power consumption9.5 W typical, normal operation
Touch Screen3.9mm projected-capacitive Touch;USB Port;eeti
ConstructionG+G Cover glass
Durability50 Million touches(min)
OSD ControlOn the back side
I/O Connectors1x12v,1XVGA,DVI-D
Power InputAC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
ConstructionRoasted Metal Frame
Dimensions261x 208x 43.4(mm)
MountingVESA 75x75
Power sourceAC 100~240V/ 12V DC
Environment Specifications
Operating Temperature-20~70℃
Storage Temperature-30~80℃
Ordering Information10.4” projected-capacitive touch monitor


Packaging & Delivery

Packing details

1x 10.4 inch projected-capacitive touch monitor
Packed in 3pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms5 working days for stock products after receiving payments; 15 working days for order production


10 Inch 1024x768 Hd Industrial Touch Screen Monitor With Projected Capacitive Touch
