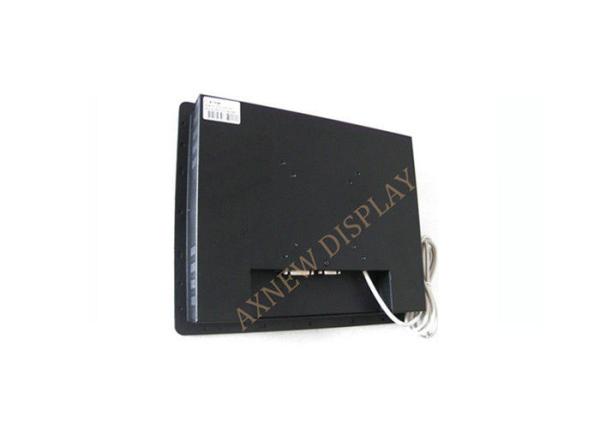

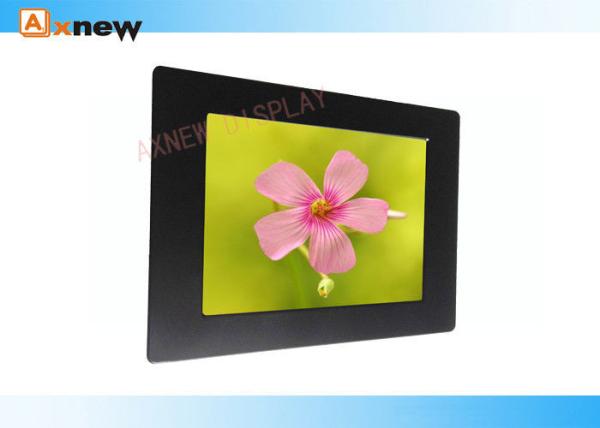

Waterproof Touch Screen Monitor 15 inch 176 super viewing angle industrial panel mount
Waterproof Touch Screen Monitor 15 inch 176 super viewing angle industrial panel mount
Waterproof Touch Screen Monitor 15 inch 176 super viewing angle industrial panel mount
Waterproof Touch Screen Monitor 15 inch 176 super viewing angle industrial panel mount
Specifications
Brand Name :
Axnew
Model Number :
AXD-15OPIPN1P1-T1
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
20 units
Price :
US$150~299
Payment Terms :
T/T, Western Union, L/C, D/A
Supply Ability :
1000Units/Month
Delivery Time :
5-7 working days
Packaging Details :
1 unit/carton; 5 units/carton
Resolution :
1024x768
Brightness :
500nits
Touch Type :
5 wire Resistive touch
Signal input :
VGA, DVI-D
Reponse Time :
8ms
Use Life :
70,000hours(min)
Viewing Angle :
176/176
Power source :
12V
Description

Waterproof Touch Screen Monitor 15 inch 176 super viewing angle industrial panel mount


Display Specifications
Display 15" Color TFT Panelmount IP65 touchscreen Monitor
Model Name AXD-15OPIPN1P1-V2
Active Display Area (mm) 305.7(H)x229.7(V)
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Resolution (Pixel) 1024X768
Brightness (CD/m^2) 500cd/m^2
Contrast Ratio 800:1
Viewing Angle (CR >=10) 176/176
Power consumption 10.3 W typical, normal operation
Touch Screen
Type 5 wire Resistive touchscreen USB
Durability 35 Million touches
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Aluminum Frame with rugged powered housing
Dimensions 376.1mmx 300.0mmx50.0mm
Mounting Up-down, Left-right panelmount screws fixing holes ,VESA 75x75(100x100)
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~80℃
Storage Temperature -30~80℃
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 15” panelmount Monitor 500nits with HD VGA input and power adapter


Packaging & Delivery

Packing details

1x 12.1 inch panelmount touchscreen monitor
Packed in 5 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter
Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production


Features and Advantages

1. G15 New and Industrial A grade perfect panels with 70,000 Hours (min) led backlight life

2. industrial control board supports the displays working 24 hours

3. Professional and industrial hardware and parts to guarantee its working normally in rough environment

4.Rugged panel mount closed industrail design to protect the LCD screen

5. VGA DVI interfaces ;5 wire resistive touch screen,usb port

6. 15 inch industrial touchscreen monitor for application control ,and industrial
terminals etc
Waterproof Touch Screen Monitor 15 inch 176 super viewing angle industrial panel mount
