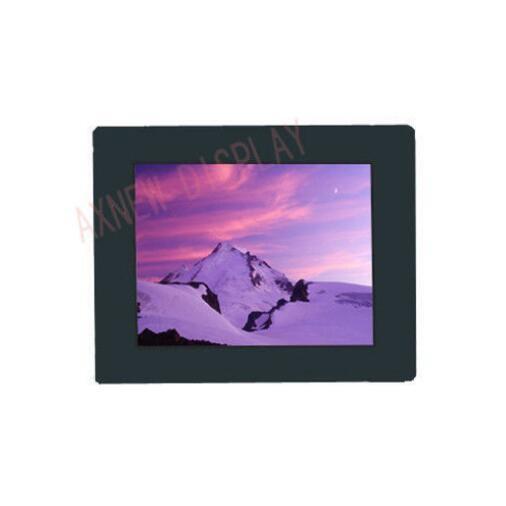

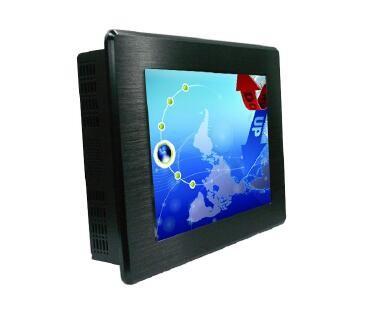

12.1 inch Panel Mount Waterproof Lcd Screen 800x600 high brightness
12.1 inch Panel Mount Waterproof Lcd Screen 800x600 high brightness
12.1 inch Panel Mount Waterproof Lcd Screen 800x600 high brightness
12.1 inch Panel Mount Waterproof Lcd Screen 800x600 high brightness
Specifications
Brand Name :
Axnew
Model Number :
AXD-12OPIPN1P1-T1
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
5 units
Price :
US$150~299
Payment Terms :
T/T, Western Union, L/C, D/A
Supply Ability :
1000Units/Month
Delivery Time :
5-7 working days
Packaging Details :
1 unit/carton; 5 units/carton
Resolution :
800x600
Brightness :
500nits
Touch Type :
Projected capacitive touch
Signal input :
VGA, DVI-D
Reponse Time :
8ms
Use Life :
50,000hours(min)
Viewing Angle :
80/80/70/70
Power source :
12V
Description

12.1 inch panel mount touchscreen monitor,800x600 high brightness

Quick Details:

Model: AXD-12OPIPN1P1-T1 Screen Size:12.1’’
Screen format: 4:3 Display Resolution(pixel):800X600
Contrast Ratio:500:1 Brightness:500cd/m^2
Storage temperature : -30℃~85℃ Input signal: VGA DVI-D
Power Input: AC 100~240V/ 12V DC Product status: In production

Features and Advantages

1. G121 New and Industrial A grade perfect panels with led backlight

2. industrial control board supports the displays working 24 hours

3. Professional and industrial hardware and parts to guarantee its working normally in rough environment

4.Rugged panel mount closed industrail design to protect the LCD screen

5. VGA DVI interfaces ;5 wire resistive touch screen,usb port

6. 12.1 inch industrial touchscreen monitor for application control ,and industrial

terminals etc

Display Specifications
Display 12" Color TFT Panelmount touchscreen Monitor
Model Name AXD-12OPIPN1P1-V2
Active Display Area (mm) 246.0 (H) x 184.5 (V)
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Resolution (Pixel) 1024X768
Brightness (CD/m^2) 500cd/m^2
Contrast Ratio 700:1
Viewing Angle (CR >=10) 160/140
Power consumption 10.3 W typical, normal operation
Touch Screen
Type 5 wire Resistive touchscreen USB
Durability 35 Million touches
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Aluminum Frame with rugged powered housing
Dimensions 315.6x 254.6x 54.8(mm)
Mounting Up-down, Left-right panelmount screws fixing holes ,VESA 75x75(100x100)
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -30~80℃
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 12.1” panelmount Monitor 500nits with HD VGA input and power adapter

Packaging & Delivery

Packing details

1x 12.1 inch panelmount touchscreen monitor

Packed in 5 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter
Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production
