10 Intel N2600 IPS HDMI Industrial Touch Screen Panel PC Wide Screen Computer
10 Intel N2600 IPS HDMI Industrial Touch Screen Panel PC Wide Screen Computer
10 Intel N2600 IPS HDMI Industrial Touch Screen Panel PC Wide Screen Computer
10 Intel N2600 IPS HDMI Industrial Touch Screen Panel PC Wide Screen Computer
Specifications
Place of Origin :
China
Brand Name :
AXNEW
Model Number :
AXD-10PPC-V2
MOQ :
10 Pieces
Price :
negotiation
Packaging Details :
3 Pcs /Carton with firm foam
Delivery Time :
10-15 working days
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
2000 pieces/month
Certification :
CE/ROHs
Screen Size :
10 inch
Pixel :
1280X800
Contrast Ratio :
800:1
Brightness :
350cd/m^2
Viewing Angles :
170(H)/170(V)
Monitor type :
Resistive Touch screen
Application :
industrial|Kiosk|POS
Feature :
HD|high definition|slim|thin
Description

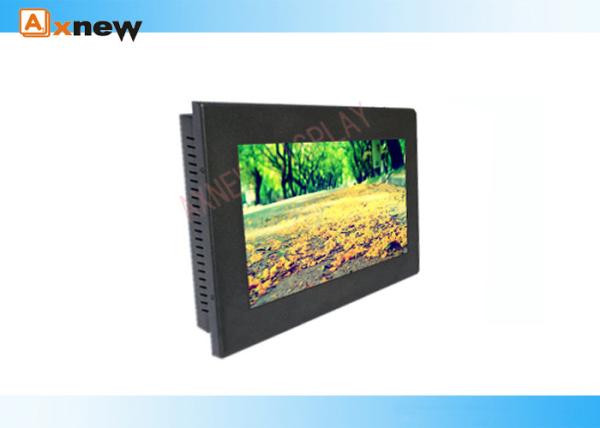

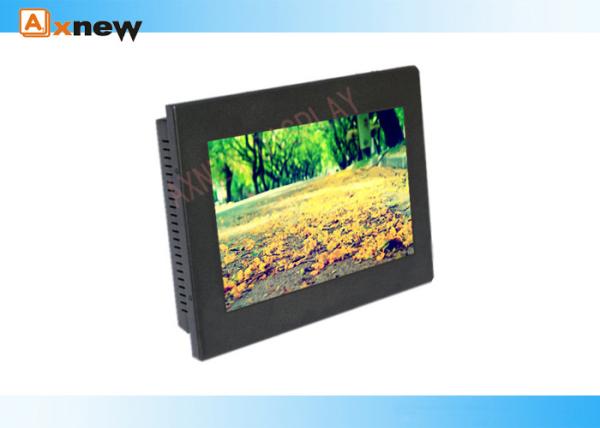

10" Intel N2600 HDMI Industrial Touch Panel PC Wide Screen Computer

10 inch resistive touch screen panel pc, which is widely used to mount into the Automatic equipments, Gas Station ,Advertising , vending embedded system, Kiosk application etc.

Quick Details:


Model: AXD-10PPC-V2

Screen Size:10’’
Screen format: 16:10 Display

Resolution(pixel):1280X800
Contrast Ratio:800:1

Brightness:350cd/m^2
Storage temperature : -20℃~60℃

Touch Type: Resistive Touch screen
Power Input: AC100~240 V/DC 12V

Product status: In production

Features and Advantages


1. New and A grade lcd panel with other components on stable supply
2. Resistive touchscreen makes the touch sense perfectly
3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option
6. 10’’ ALL IN ONE Touch pc hardware for POS, Gaming, Hotel ,Restaurant terminals, KIOSK etc.

Specifications datasheet

Panel PC information

Model Number

AXD-10PPC-V2

10’’ Touch pc

Case/Bezel Color

Black

TFT Type

IPS LCD with LED backlight

Aspect ratio

16:10

Useful Screen Area

220.6 mm x 139.6 mm

Touch Panel

Industrial Resistive Flat Screen

Touch response time

10ms (typical

Touch PC Dimensions

262x 206x53.3 mm

Optimal (native) Resolution

1280 x 800

LCD panel Pixel pitch

0.1695 x 0.1695 mm

LCD panel Colors

262K/16.7 million

LCD panel Brightness

350 cd/m2

LCD panel Response Time

25 ms

Contrast Ratio

800:1

Viewing Angle ( Wide )

Horizontal (left/right)

±85° or 170° total

Vertical (up/down)

85°(up), 85°(down) or 170° total

Output Interface

COM/HDMI type/ Audio/Mic

Input Interface

USB*3

Net

Internet LAN

Watch Dog Technology

Support

Power Specification

External AC to DC power brick

Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5￠)

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power dissipation: 36W max

ECM (Embed Computer Module)

Intel® processor N2600 (1.6GHz + NM10 Chipset)

SSD: 16G;Rom:2G(DDR3,max6G);

Operation System:Win7XpVistaLinux

Temperature

Operating: 0°C to 50°C ;Storage -20°C to 60°C

Humidity (non condensing)

Operating: 20%-90%; Storage: 10%-95%

Shipping Carton Dimensions

490 x 440 x340 mm (Five pieces in one )

Weight (approx.)

Actual: 11kg ;Shipping: 15kg

Dimensions

Holes fixings

Vesa mounting 100x100

Mechanical dimensions

262x 206x53.3 mm

Drawings

Please contact us for details

Packaging & Delivery

Packing details

1x 10 inch Industrial Touch Panel PC ;

Packed in 3 pieces/carton with protection foam

Optional accessories:1x Power supply cable, 1x power

adapter

Delivery terms

7- working days for stock products after receiving payments; 15 working days for order production
