Professional 1000 nits 15 High Brightness Monitor Wide Temperature -20~80 degrees
Professional 1000 nits 15 High Brightness Monitor Wide Temperature -20~80 degrees
Professional 1000 nits 15 High Brightness Monitor Wide Temperature -20~80 degrees
Professional 1000 nits 15 High Brightness Monitor Wide Temperature -20~80 degrees
Specifications
Brand Name :
Axnew
Model Number :
AXD-15OPN2P1-VH4
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
10 Pieces
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1000 pieces/month
Delivery Time :
10-15 working days
Packaging Details :
5 Pcs /Carton with firm foam
Screen Size :
15 inch
Screen format :
4:3
Pixel :
1024X768
Contrast Ratio :
600:1
Brightness :
1000cd/m^2
Input signal :
VGA/DVI-D
Description

Professional 1000 nits 15 High Brightness Monitor Wide Temperature -20~80 degrees

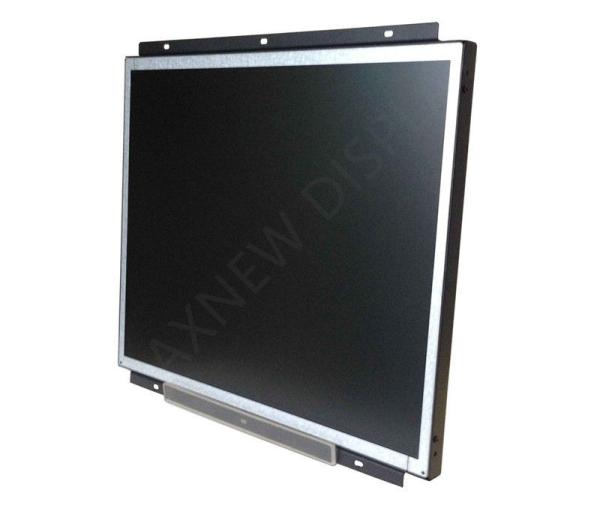

15 inch sunlight readable industrial LCD open frame monitor with VGA DVI input slim and thin design for 15’’ LCD( NO TOUCH), 1000nits high brightness LCD widely used for Outdoor Automatic equipments, Advertising , vending embedded system, Kiosks application etc.


Features and Advantages


1. New and Industrial A grade perfect panels with stable supply


2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed


3. industrial control board supports the displays working 24 hours


4. Professional and industrial hardware and parts to guarantee its working normally in rough environment


5. VGA DVI interfaces ;No touch screen, resistive touch if needed


6. 15 inch high brightness open frame LCD for application control , advertising player ,campus and industrial terminals etc

Display Specifications
Display 15" Color TFT industrial open frame display
Model Name AXD-15OPN2P1-VH4
Active Display Area (mm) 304.1(H)x304.1(V)
Pixel Pitch (mm) 0.297(H)x0.297(V)
Resolution (Pixel) XGA (1024X768) 16.2M Color
Brightness (CD/m^2) 1000nits
Contrast Ratio 500:1
Viewing Angle (CR >=10) 160/140
Power consumption 15.3W typical, normal operation
Touch Screen Resistive;RS232/USB(Optional)
OSD Control On the back side

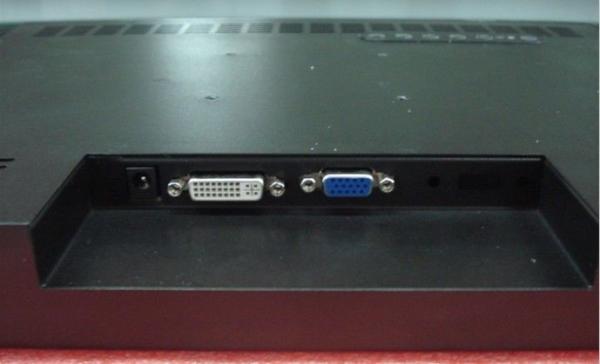

I/O Connectors 1x12v,1XVGA,DVI-D
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel Metal chassis & Galvanized / Black color
Dimensions 357.3 x 292.0x 42.8 (mm)
Mounting Edge fixing holes
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~80℃
Storage Temperature -30~85℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15” industrial open frame high brightness with VGA input

Professional 1000 nits 15 High Brightness Monitor Wide Temperature -20~80 degrees
