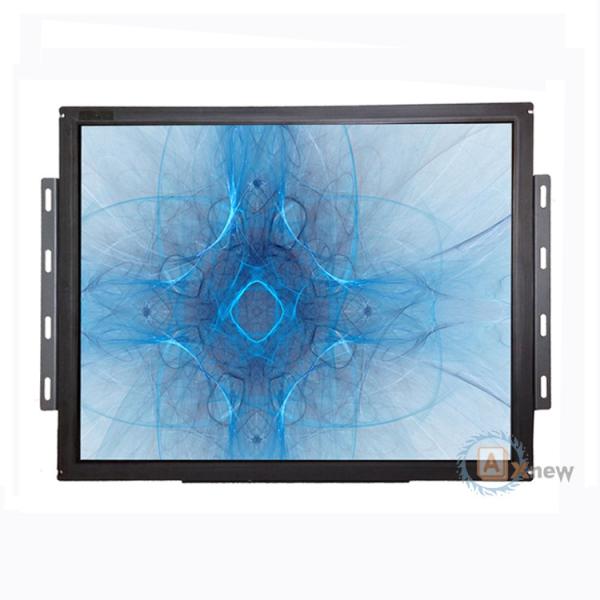

Industrial Open Frame Multi Touch LCD screen 4/3 Ratio IR Anti vandal
Industrial Open Frame Multi Touch LCD screen 4/3 Ratio IR Anti vandal
Industrial Open Frame Multi Touch LCD screen 4/3 Ratio IR Anti vandal
Industrial Open Frame Multi Touch LCD screen 4/3 Ratio IR Anti vandal
Industrial Open Frame Multi Touch LCD screen 4/3 Ratio IR Anti vandal
Industrial Open Frame Multi Touch LCD screen 4/3 Ratio IR Anti vandal
Specifications
Brand Name :
axnew
Model Number :
AXD-19OPN2P1-T4
Certification :
CE FCC
Place of Origin :
China
MOQ :
20 Units
Price :
US$100-200/Unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 units/month
Delivery Time :
5-7 working days
Packaging Details :
5 units/carton
Size :
19 inch
Type :
19" Color TFT touch Monitor
Brightness :
250cd/m^2
Signal interfaces :
VGA DVI
Resolution :
1280x1024
Viewing Angel :
160/150
Contrast Ratio :
800:1
Operating Temp. :
-20~85℃
Description

19 Inch Industrial 4/3 Ratio IR Anti vandal Multi Touch Open Frame LCD Screen

Display Specifications
Display 19" Color TFT Multi touch Monitor
Model Name AXD-19OPN2P1-T4
Active Display Area (mm) 376.3 (H)x301.1(V)
Pixel Pitch (mm) 0.294(H)x0.294(V)
Resolution (Pixel) SXGA (1280X1024) 16.2 M (6 bit + FRC)
Brightness (CD/m^2) 250cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 20.5W typical, normal operation
Touch Screen IR touch (IP65 design front)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel chassis & Black Color
Dimensions 432.0 x 339.0x49.8 (mm)
Mounting Edge locking ,fixing holes embedded
Power source AC 100~240V/ 12V DC-4A
Environment Specifications
Operating Temperature -10~60℃
Storage Temperature -20~65℃
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 19” IR touch Monitor 250nits with VGA input and power adapter

Features and Advantages

1. New and Industrial A grade perfect panels with stable supply


2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed


3. industrial control board supports the displays working 24 hours

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment


5. VGA DVI interfaces ;IR Touch screen with anti-vandal to protect the LCD


6. 19 inch high brightness open frame touch monitor for application control , advertising player ,campus and industrial terminals etc

Industrial Open Frame Multi Touch LCD screen 4/3 Ratio IR Anti vandal
