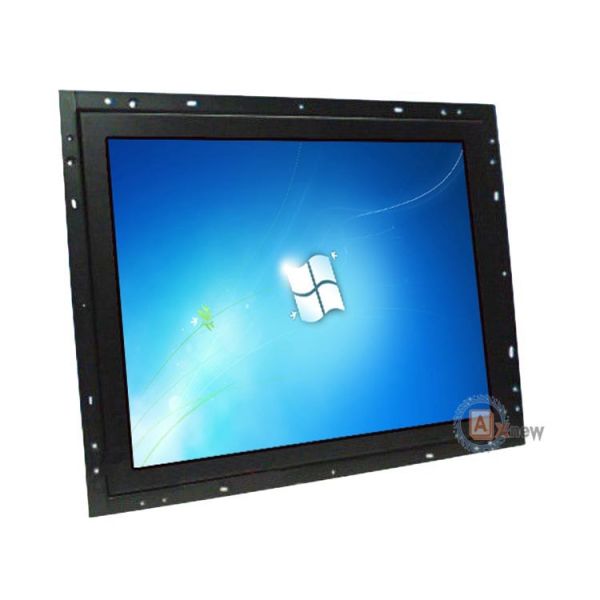

15 '' Custom Monitor , XGA TFT LED Backlit Rack Mount Chassis LCD Monitor With Protective Glass
15 '' Custom Monitor , XGA TFT LED Backlit Rack Mount Chassis LCD Monitor With Protective Glass
15 '' Custom Monitor , XGA TFT LED Backlit Rack Mount Chassis LCD Monitor With Protective Glass
15 '' Custom Monitor , XGA TFT LED Backlit Rack Mount Chassis LCD Monitor With Protective Glass
15 '' Custom Monitor , XGA TFT LED Backlit Rack Mount Chassis LCD Monitor With Protective Glass
15 '' Custom Monitor , XGA TFT LED Backlit Rack Mount Chassis LCD Monitor With Protective Glass
Specifications
Brand Name :
axnew
Model Number :
AXD-15OPPM-TPr (VGA/DVI)
Certification :
CE FCC
Place of Origin :
China
MOQ :
10 Units
Price :
US$100-200/Unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 units/month
Delivery Time :
5-7 working days
Packaging Details :
5 units/carton
Size :
15 inch
Type :
TFT
Brightness :
400cd/m^2
Signal interfaces :
VGA DVI
Resolution :
1024x768
Viewing Angel :
160/140
Contrast Ratio :
500:1
Operating Temp. :
-20~85℃
Description

15 '' XGA TFT LED Backlit Rack Mount Chassis LCD Monitor With Protective Glass

Features and Advantages

1. New and Industrial A grade perfect panels with LED backlight
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; protective anti-vandal glass or Resistive touch with USB interface
6. 15 inch Panel mount touch lcd monitor for application control , automatic system and industrial terminals etc

Display Specifications
Display 15" Color TFT Panel mount Monitor
Model Name AXD-15OPPM-Pr
Active Display Area (mm) 304.1(H)x304.1(V)
Pixel Pitch (mm) 0.297(H)x0.297(V)
Resolution (Pixel) XGA (1024X768) 262K/16.2M Color
Brightness (CD/m^2) 400nits
Contrast Ratio 800:1
Viewing Angle (CR >=10) 160/140
Power consumption 8.6W typical, normal operation
Touch Screen Resistive;RS232/USB(Optional)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel Metal chassis & Black Color
Dimensions 398.0 x 295.0x 48 (mm)
Mounting Edge fixing holes, vesa mounting on the backside
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~85℃
Storage Temperature -30~85℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15” Panel mount touch LCD Monitor with VGA input and power adapter( Protective glass)


15 inch panel mount monitor could be customized the protective glass, touch panel solutions, IP65 water-proof front bezel, or signal inputs .Welcome to contact us if you are interested in it .

15 '' Custom Monitor , XGA TFT LED Backlit Rack Mount Chassis LCD Monitor With Protective Glass15 '' Custom Monitor , XGA TFT LED Backlit Rack Mount Chassis LCD Monitor With Protective Glass
