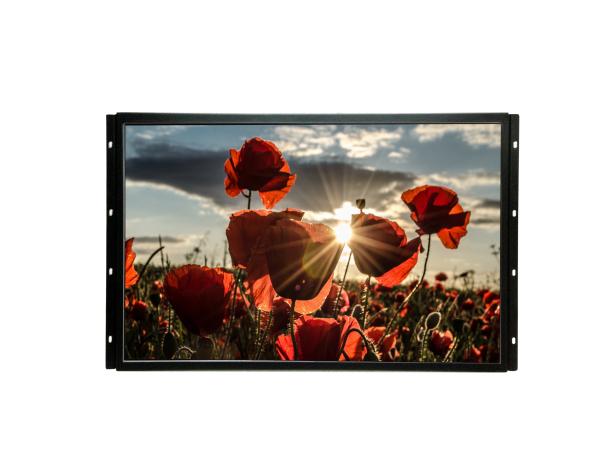

Full hd 24 inch Multi Touch LCD screen , Capacitive Open Frame LCD monitor
Full hd 24 inch Multi Touch LCD screen , Capacitive Open Frame LCD monitor
Full hd 24 inch Multi Touch LCD screen , Capacitive Open Frame LCD monitor
Full hd 24 inch Multi Touch LCD screen , Capacitive Open Frame LCD monitor
Full hd 24 inch Multi Touch LCD screen , Capacitive Open Frame LCD monitor
Full hd 24 inch Multi Touch LCD screen , Capacitive Open Frame LCD monitor
Specifications
Brand Name :
AXNEW
Model Number :
AXD-24OPN1P1-VU C
Certification :
CE/FCC/ROHS/UL/CCC
Place of Origin :
Shenzhen China
MOQ :
5 Pieces
Price :
US$100-298/pcs
Payment Terms :
Depends on product and order quantity
Supply Ability :
1000 pieces/month
Delivery Time :
7 working days
Packaging Details :
2 Pcs /Carton with firm foam
Brightness :
300nits
Contrast Ratio :
5000:1
Pixel :
1920x1080
Screen Size :
24 inch
Input signal :
VGA/HDMI/AV
Viewing Angles :
178(H)/178(V)
Monitor type :
Pro-capacitive multi Touch Screen monitor
Applications :
kiosks,indoor machines, advertsing,etc
Description

5000:1 high quality Full hd 24 inch Capacitive Open Frame Touch Screen Monitor

Display Specifications
Display 24" Color TFT Open Frame capacitive touch Monitor
Model Name AXD-24OPN1P1-VU C
Active Display Area (mm) 522.4(H)x328.0(V)
Pixel Pitch (mm) 0.270(H)x0.270(V)
Resolution (Pixel) 1920x1080 16.7M colors
Brightness (CD/m^2) 300cd/m^2
Contrast Ratio 5000:1
Viewing Angle (CR >=10) 178/178
Power consumption 25.8W typical, normal operation
Touch Screen
Type capacitive touch panel
Multi-touch 10 points
Touch Controller eeti chipset with USB/RS232
OSD Control 6 buttons menu board
I/O Connectors 1x12v,1XVGA,HDMI,Audio,etc
Power Input DC 12V, 4A 48W
Mechanical Specifications
Construction Steel metal chassis & black Color
Dimensions Accords with the drawings
Mounting Edge fixing holes,Vesa(75x75,100x100) Mounting
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature 0~50℃
Storage Temperature -20~60℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 24” Open Frame Capacitive touch Monitor

Packaging & Delivery

Packing details

1x 24 inch open frame capacitive touch monitor;

Packed in 2 pieces/carton with protection foam

Optional accessories: 1xhdmi 1x Power supply cable, 1x power adapter
Delivery terms

7- working days for stock products after receiving payments; 15 working days for order production
