Advertising Industrial Touch Screen Computer 17'' Open Frame Type 1024x768 for Automatic System
Advertising Industrial Touch Screen Computer 17'' Open Frame Type 1024x768 for Automatic System
Advertising Industrial Touch Screen Computer 17'' Open Frame Type 1024x768 for Automatic System
Advertising Industrial Touch Screen Computer 17'' Open Frame Type 1024x768 for Automatic System
Specifications
Place of Origin :
Shenzhen China
Brand Name :
AXNEW
Model Number :
AXD-17PPCOP-V2
MOQ :
10 Pieces
Price :
US$200-350/PCS
Packaging Details :
3 Pcs /Carton with firm foam
Delivery Time :
10-15 working days
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
3000 pieces/month
Certification :
CE/ROHS
Brightness :
300cd/m^2
Contrast Ratio :
1000:1
Pixel :
1280X1024
Screen Size :
17 inch
Application :
industrial|Kiosk|POS
Feature :
HD|slim|thin|high definition
Panel Type :
TFT
Product name :
17 Inch Open Frame Touch Panel PC
Description

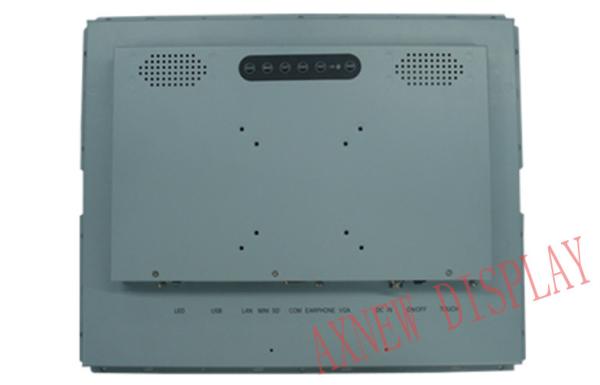

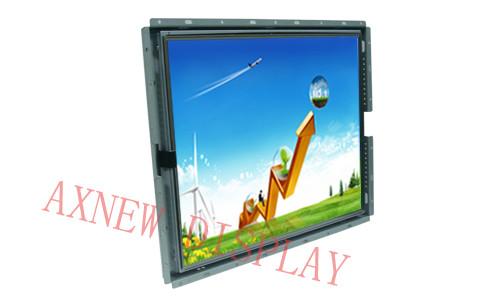

Advertising 17'' Open Frame Type Industrial Touch Panel PC 1024x768 for Automatic System

Panel PC information

Model Number

AXD-17PPCOP-V2

17’’ open frame Touch pc

Case/Bezel Color

Silver

TFT Type

Industrial LCD with LED backlight

Aspect ratio

4:3

Useful Screen Area

341.72 mm x 274.1 mm

Touch Panel

Industrial Resistive Flat Screen

Touch response time

10ms (typical)

Touch PC Dimensions

Drawings

Optimal (native) Resolution

1280x1024

LCD panel Pixel pitch

0.297 x 0.297 mm

LCD panel Colors

16.7 million

LCD panel Brightness

300 cd/m2

LCD panel Response Time

8ms

Contrast Ratio

1000:1

Viewing Angle ( Wide )

Horizontal (left/right)

±85° or 170° total

Vertical (up/down)

85°(up), 85°(down) or 170° total

Output Interface

COM/HDMI type/ Audio/Mic

Input Interface

USB*3

Net

Internet LAN

Watch Dog Technology

Support

Power Specification

External AC to DC power brick

Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5￠)

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power dissipation: 36W max

ECM (Embed Computer Module)

Intel® processor 1037U (1.6GHz + NM10 Chipset)

SSD: 16G;Rom:2G(DDR3,max6G);

Operation System:Win7/Xp/VistaLinux

Temperature

Operating: 0°C to 50°C ;Storage -20°C to 60°C

Humidity (non condensing)

Operating: 20%-90%; Storage: 10%-95%

Shipping Carton Dimensions

490 x 440 x340 mm (3 pieces in one )

Weight (approx.)

Actual: 11kg ;Shipping: 15kg

Dimensions

Holes fixings

Vesa mounting 100x100

Mechanical dimensions

Drawings

Drawings

Please contact us for details

Features and Advantages


1. New and A grade lcd panel with other components on stable supply


2. Resistive touchscreen makes the touch sense perfectly


3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment


4. Professional and industrial hardware and parts to guarantee its working normally in rough environment


5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option


6. 17’’ ALL IN ONE Touch pc hardware for POS, Gaming, Hotel ,Restaurant terminals, KIOSK etc.
